295 - Poulan Chainsaw, Type 4 (2008-07) Starter - Type 4 Parts Diagram

Chainsaw, Type 4

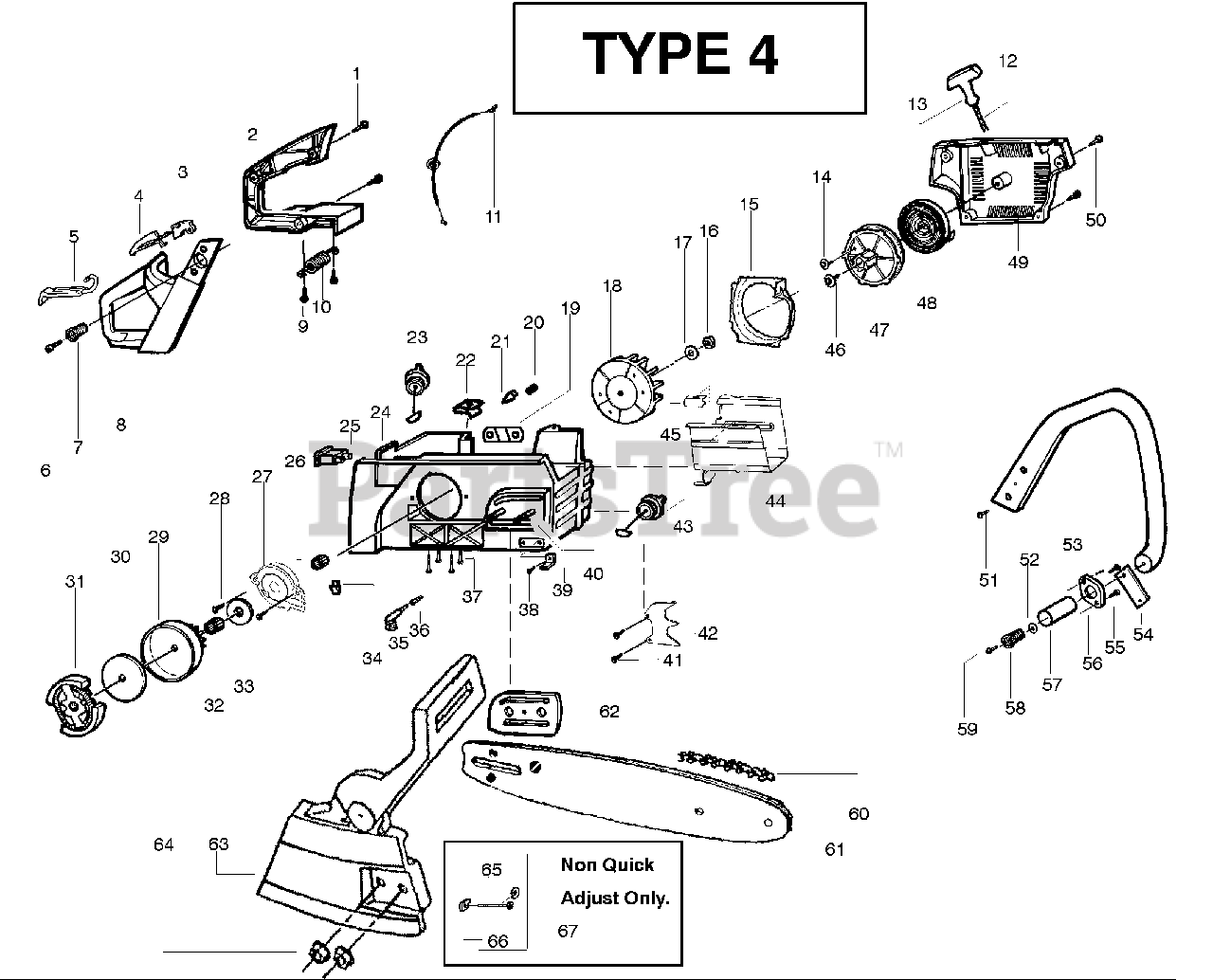

Starter - Type 4 Parts Diagram

  • Title

1

Electrolux/AYP 530015957

Screw

$4.99

$

In Stock, Qty 7

0

2

Electrolux/AYP 530071272

Cover-Handle

$

$

Not available

3

Electrolux/AYP 530036097

Trigger-Throttle

$4.99

$

In Stock, only 3 left!

0

4

Electrolux/AYP 530036098

Lockout-Throttle

$

$

Not available

5

Electrolux/AYP 530053443

Lever-Choke

$

$

Not available

6

Electrolux/AYP 530015937

Screw

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530038985

Spring-Isolator

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 530071272

Handle-Rear

$

$

Not available

9

Electrolux/AYP 530015906

Screw

$6.49

$

In Stock, Qty 7

0

10

Electrolux/AYP 530038986

Spring-Isolator

$

$

Not available

11

Electrolux/AYP 530038471

Assy-Throttle Cable

Note: (Incl. Grommet)

$

$

Not available

12

Electrolux/AYP 530069232

Kit-Rope

$7.49

$

In Stock, Qty 20+

0

13

Electrolux/AYP 530049797

Handle-Starter
(Superseded to 530056422)

$

$

Not available

14

Electrolux/AYP 530016080

Screw

$6.49

$

In Stock, Qty 11

0

15

Electrolux/AYP 530047667

Plate-Baffle Fan

$3.99

$

In Stock, only 4 left!

0

16

Electrolux/AYP 530016071

Nut-Flywheel

$

$

Not available

17

Electrolux/AYP 530015127

Washer-Flywheel

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530039147

Assy-Flywheel
(Superseded to 575635502)

$17.99

$

In Stock, Qty 7

0

19

Electrolux/AYP 530036043

Plate-Support (Bar Stud)

$5.99

$

In Stock, only 4 left!

0

20

Electrolux/AYP 530029868

Plug-Vent

$6.49

$

In Stock, Qty 13

0

21

Electrolux/AYP 530026119

Valve-Check

$4.49

$

In Stock, Qty 14

0

22

Electrolux/AYP 530015922

Nut-Speed

$6.49

$

In Stock, Qty 5

0

23

Electrolux/AYP 530010845

Assy-Fuel Cap

$

$

Not available

24

Electrolux/AYP 530037551

Assy-Chassis

$

$

Not available

25

Electrolux/AYP 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 530029833

Worm-Oil Pump

$8.99

$

In Stock, Qty 14

0

27

Electrolux/AYP 530014410

Assy-Oil Pump
(Superseded to 545036801)

$18.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 530015896

Screw

$6.49

$

In Stock, Qty 13

0

29

Electrolux/AYP 530069342

Kit-Clutch Drum

Note: (Incl. #32)

$40.99

$

In Stock, Qty 12

0

30

Electrolux/AYP 530015611

Washer-Clutch

$6.49

$

In Stock, Qty 20+

0

31

Electrolux/AYP 530014949

Assy-Clutch

$13.99

$

In Stock, Qty 17

0

32

Electrolux/AYP 530032119

Bearing-Clutch

$9.99

$

In Stock, Qty 9

0

33

Electrolux/AYP 530015907

Washer-Thrust

$

$

Not available

34

Electrolux/AYP 530019174

Seal-Oil
(Superseded to 545037101)

$10.99

$

In Stock, Qty 20+

0

35

Electrolux/AYP 545047801

Pickup-Oil

$6.49

$

In Stock, Qty 12

0

36

Electrolux/AYP 530056533

Filter-Oil

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 530016037

Screw

$

$

Not available

38

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

39

Electrolux/AYP 530029850

Chain Catcher

$6.49

$

In Stock, Qty 20+

0

40

Electrolux/AYP 530015877

Bar Bolt

$7.49

$

In Stock, only 1 left!

0

41

Electrolux/AYP 530016439

Screw

$6.49

$

In Stock, only 1 left!

0

42

Electrolux/AYP 530014381

Kit-Spike Assy

Note: (Incl. 41)

$9.99

$

In Stock, Qty 16

0

43

Electrolux/AYP 530010846

Assy-Oil Cap
(Superseded to 530057236)

$

$

Not available

44

Electrolux/AYP 530055406

Shield-Heat

$4.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 530055322

Clip-"U"

$2.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 530015920

Screw

$6.49

$

In Stock, Qty 8

0

47

Electrolux/AYP 530069313

Kit-Starter Pulley

$7.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 530015891

Spring-Recoil
(Superseded to 545008005)

$

$

Not available

49

Electrolux/AYP 530047666

Housing-Fan
(Superseded to 530047743)

Note: (Incl. 15)

$

$

Not available

50

Electrolux/AYP 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

51

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

52

Electrolux/AYP 530015158

Washer
(Superseded to 530015123)

$4.99

$

In Stock, only 4 left!

0

53

Electrolux/AYP 530038327

Handle-Front
(Superseded to 530053955)

$15.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 530036113

Front Strap-AV

$6.49

$

In Stock, only 1 left!

0

55

Electrolux/AYP 530015775

Screw-Plate

$6.49

$

In Stock, only 2 left!

0

56

Electrolux/AYP 530036101

Plate-Isolator

$

$

Not available

57

Electrolux/AYP 530036142

Spring Sleeve-AV

$

$

Not available

58

Electrolux/AYP 530038985

Spring-Isolator

$4.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 530015984

Screw

$2.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 952051301

Chain" 16"

$

$

Not available

60

Electrolux/AYP 952051310

Chain" 20"

$

$

Not available

61

Electrolux/AYP 952044577

Bar 16" Standard

$

$

Not available

61

Electrolux/AYP 952044815

Bar 20" Quick Adjust

$

$

Not available

61

Electrolux/AYP 530044868

Bar 20" Pro Lam Quick Adj.
(Superseded to 952044815)

$

$

Not available

62

Electrolux/AYP 530047855

Bar Plate

$

$

Not available

63

Electrolux/AYP 530054819

Assy-ChainBrake (w/Standard Bar)

$

$

Not available

63

Electrolux/AYP 530054804

Assy-ChainBrake (w/Quick Adjust Bar)
(Superseded to 530054819)

$

$

Not available

64

Electrolux/AYP 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 20+

0

65

Electrolux/AYP 530038593

Retainer

$4.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 530015826

Pin-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

67

Electrolux/AYP 530069611

Kit-Bar Adjust

Note: (Incl. 65,66)

$4.99

$

In Stock, Qty 20+

0
