2950 (5901288) - Massey Ferguson 61" Zero-Turn Mower, 25hp Briggs & Stratton 61" Mower Deck Group - Housing, Covers, Spindles & Blades (5303426) Parts Diagram

61" Zero-Turn Mower, 25hp Briggs & Stratton

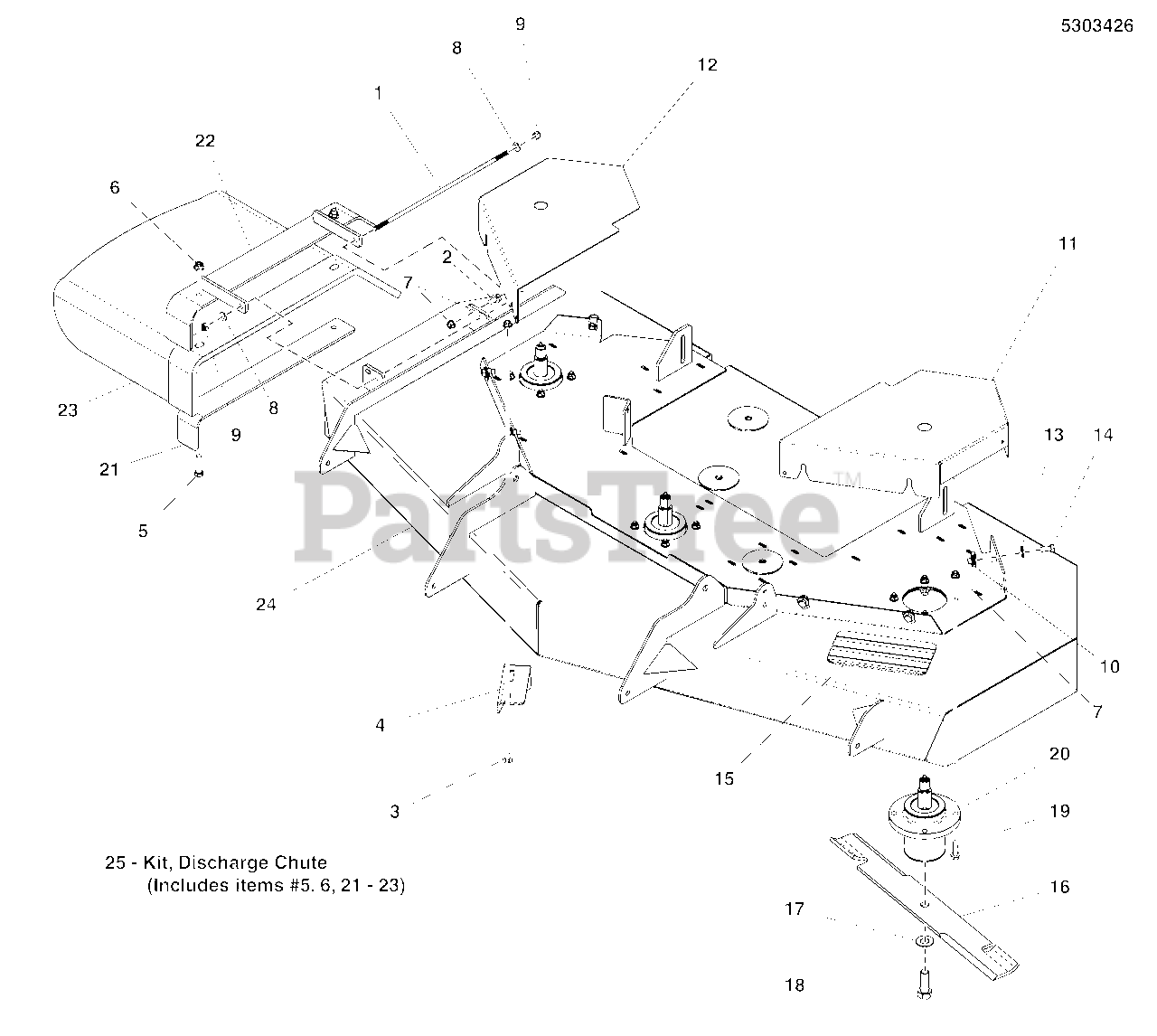

61" Mower Deck Group - Housing, Covers, Spindles & Blades (5303426) Parts Diagram

  • Title

1

Simplicity 5042555SM

ROD, 5/16 X 13.75, TBE, CZ

$10.99

$

Usually ships in 2-12 days

0

2

Simplicity 703354

SCREW, 5/16-18

Note: (80003531)

$5.49

$

In Stock, Qty 16

0

3

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5401344AYP

PLATE, DEFLECTOR - BLK

$27.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025013X12SM

BOLT, 3/8-16 X 1-1/2 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 11

0

8

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 7

0

10

Simplicity 5022308SM

BODY CLIP, 5/16-18-7GA MATERIAL

$5.99

$

In Stock, Qty 10

0

11

Simplicity 5411377DYP

GUARD 61" - LH - RED

Note: (S/N: 2016564163 & Below)

$71.99

$

Usually ships in 2-12 days

0

11

Simplicity 5411896DYP

GUARD 61" - LH - RED

Note: (S/N: 2016564164 & Above)

$96.99

$

Usually ships in 2-12 days

0

12

Simplicity 5411376DYP

GUARD 61" - RH - RED

Note: (S/N: 2016564163 & Below)

$71.99

$

Usually ships in 2-12 days

0

12

Simplicity 5411895DYP

GUARD 61" - RH - RED

Note: (S/N: 2016564164 & Above)

$88.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025292SM

WASHER, 5/16 F436 FLAT

$3.99

$

In Stock, only 2 left!

0

14

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, Qty 6

0

15

Simplicity 5101004SM

SAFETY WALK, 4.00 X 7.50

$9.49

$

In Stock, only 1 left!

0

16

Simplicity 5104045SYP

BLADE SET, .187 X 2.50 X 21.00 (3) (SV)

$

$

Not available

16

Simplicity 5104045YP

BLADE, .187 X 2.50 X 21.00

$28.99

$

In Stock, Qty 6

0

18

Simplicity 5025320X14SM

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 770136)

$4.49

$

In Stock, Qty 17

0

17

Simplicity 5025477SM

WASHER, 5/8 GRADE 8, YZ

$3.99

$

In Stock, only 2 left!

0

19

Simplicity 5023156SM

BOLT, 5/16-18 X 1 1/4 FLANGE

$3.99

$

In Stock, Qty 5

0

20

Simplicity 5061095SM

ASSM, SPINDLE, LOW PROFILE

$222.99

$

Usually ships in 2-12 days

0

21

Simplicity 5402362AYP

SUPPORT, DISCHARGE CHUTE, 48/52

$43.99

$

In Stock, only 4 left!

0

22

Simplicity 5413404AYP

WELD, FRAME CHUTE, 44/48/52 - BLK

$68.99

$

In Stock, only 1 left!

0

23

Simplicity 5402404SM

CHUTE, DISCHARGE, BEND RUBBER, 44/48/52

$170.99

$

Usually ships in 2-12 days

0

24

Simplicity 5600699YP

DECK SHELL W/DECALS, 61, 550Z/2950 (SV)

Note: (5411126DYP)

$2194.99

$

Usually ships in 2-12 days

0

25

NO LONGER AVAILABLE - ORDER INDIVIDUAL REPLACEMENT PARTS

Note: (SV)

$

$

Not available
