2950 (5901288) - Massey Ferguson 61" Zero-Turn Mower, 25hp Briggs & Stratton Wheel & Tire Group (5303423) Parts Diagram

61" Zero-Turn Mower, 25hp Briggs & Stratton

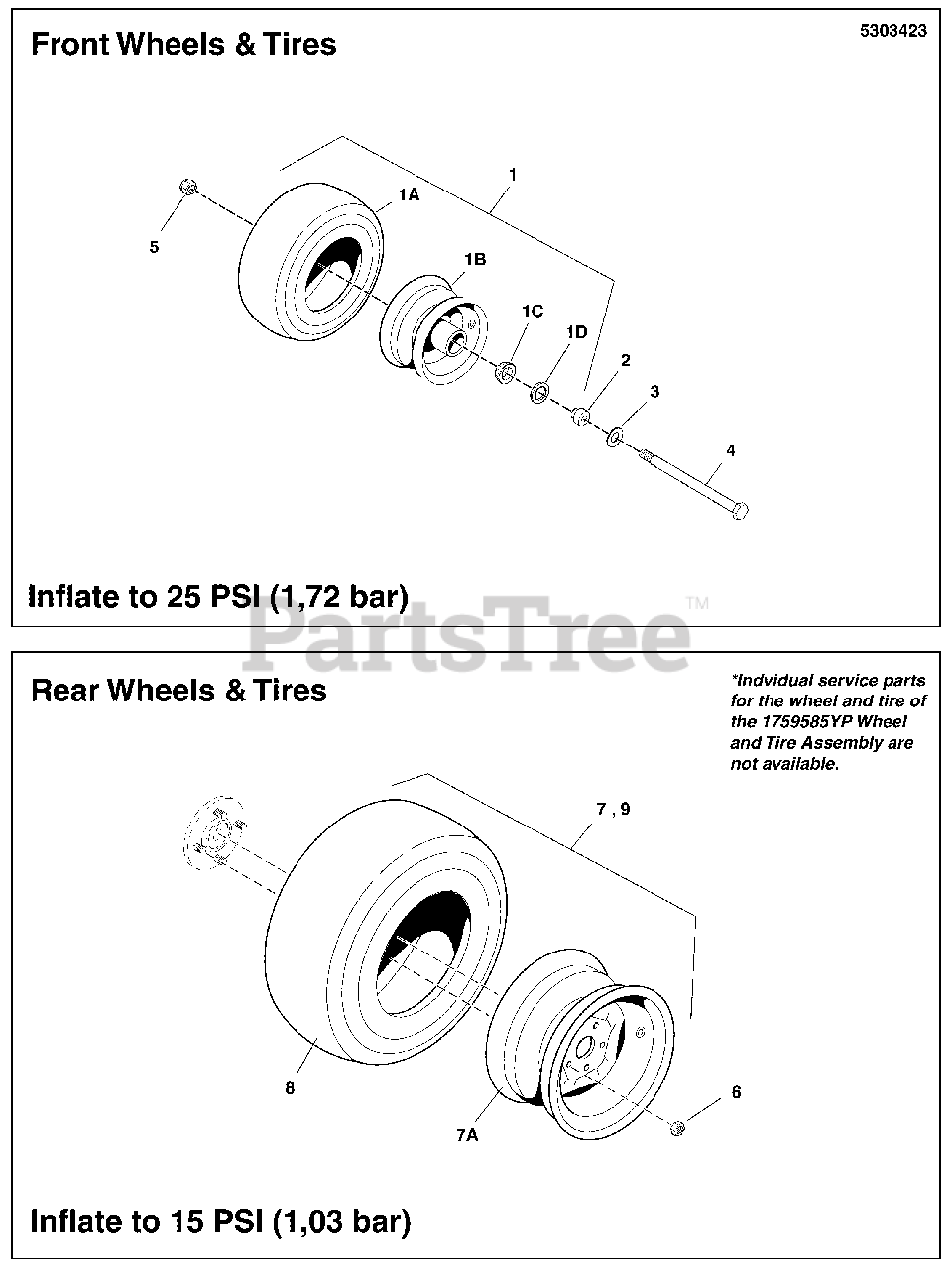

Wheel & Tire Group (5303423) Parts Diagram

  • Title

1

Simplicity 5022631SSM

TIRE, CASTER, 13 X 5.00-6

$168.99

$

In Stock, only 1 left!

0

1A

Simplicity 5022029X1SM

TIRE ONLY (SV)

$

$

Not available

1B

Simplicity 5022631SX1SM

WHEEL ASSY, 13 X 5 X 6, SILVER (SV)

$102.99

$

In Stock, only 1 left!

0

1C

Simplicity 5022631SX2SM

BEARING, TAPERED CONE

Note: (Qty: 2 per tire)

$12.99

$

In Stock, only 1 left!

0

1D

Simplicity 5022631SX3SM

SEAL, GREASE

Note: (Qty: 2 per tire)

$9.99

$

In Stock, only 1 left!

0

2

Simplicity 5047103SM

ADAPTER, CASTER AXLE, CZ

Note: (Qty: 2 per tire)

$10.99

$

In Stock, only 1 left!

0

3

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 13

0

4

Simplicity 5025017X64SM

BOLT, 1/2-13 X 8 GD5 YZ

$10.99

$

In Stock, only 1 left!

0

5

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 2 left!

0

6

Simplicity 5020601SM

NUT, 1/2-20, FOR WHEEL BOLT SILVER

$3.49

$

In Stock, Qty 9

0

7

Simplicity 5103968YP

TIRE/WHEEL ASM, 20X 10-8, TURF MASTER

Note: (S/N: 2017300770 & Below)

$

$

Not available

7A

Simplicity 5103968X1YP

WHEEL, 8 X 6.331.29" NEG OFFSET, 4/4 BOLT PATTERN (SV)

Note: (S/N: 2017300770 & Below)

$114.99

$

In Stock, only 1 left!

0

8

Simplicity 5103968X2YP

TIRE, 20 X 10 - 8, TURF MASTER (SV)

Note: (S/N: 2017300770 & Below)

$219.99

$

Usually ships in 2-12 days

0

9

Simplicity 1759585YP

WHEEL AND TIRE ASSY, 20X10-8 (K505)

Note: (S/N: 2017300771 & Above)

$426.99

$

Usually ships in 2-12 days

0
