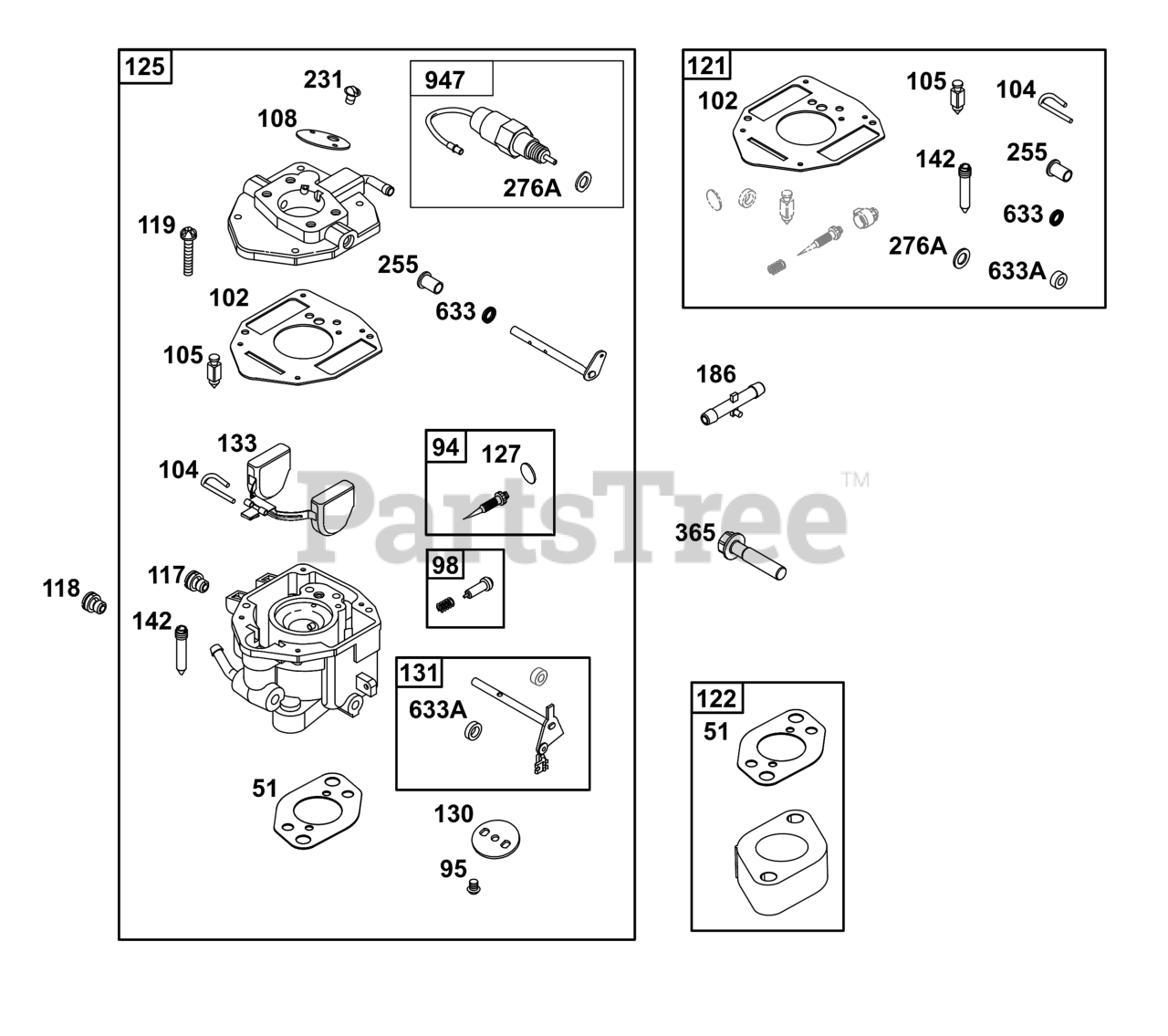

295347-1275-G1 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

94

Briggs & Stratton 847026

KIT, Idle Mixture

$16.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

In Stock, only 1 left!

0

98

Briggs & Stratton 808177

KIT, Idle Speed

$13.99

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 692077

GASKET, Carburetor Body

$25.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690723

PIN, Float Hinge

$9.49

$

In Stock, Qty 5

0

105

Briggs & Stratton 797410

VALVE, Float Needle

$15.99

$

In Stock, Qty 5

0

108

Briggs & Stratton 690719

VALVE, Choke

$9.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 806652

JET, Main

Note: (Standard)

$17.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 844990

JET, Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 690720

SCREW

Note: (Upper Carburetor Body To Lower Carburetor Body)

$3.49

$

In Stock, only 2 left!

0

121

Briggs & Stratton 809021

KIT, Carburetor Overhaul

Note: (Service Kits can include parts not for this engine.)

$178.99

$

In Stock, only 2 left!

0

122

Briggs & Stratton 690691

SPACER, Carburetor

$13.99

$

In Stock, only 1 left!

0

125

Briggs & Stratton 809009

CARBURETOR

$358.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 847028

PLUG, Welch

$5.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 690726

VALVE, Throttle

$18.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 809007

KIT, Throttle Shaft

$42.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 843320

FLOAT, Carburetor

$30.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 690725

NOZZLE, Carburetor

$39.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 845121

CONNECTOR, Hose

$6.49

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

In Stock, only 1 left!

0

255

Briggs & Stratton 805543

BUSHING, Choke Shaft
(Superseded to 690721)

$8.49

$

In Stock, only 1 left!

0

276A

Briggs & Stratton 806137

WASHER, Sealing

$6.99

$

Usually ships in 2-12 days

0

365

Briggs & Stratton 690711

SCREW

Note: (Carburetor/Throttle Body)

$6.99

$

Usually ships in 2-12 days

0

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

$15.99

$

In Stock, only 1 left!

0

633A

Briggs & Stratton 806131

SEAL, Choke/Throttle Shaft

$5.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 692094

SOLENOID, Fuel

$166.99

$

In Stock, only 1 left!

0
