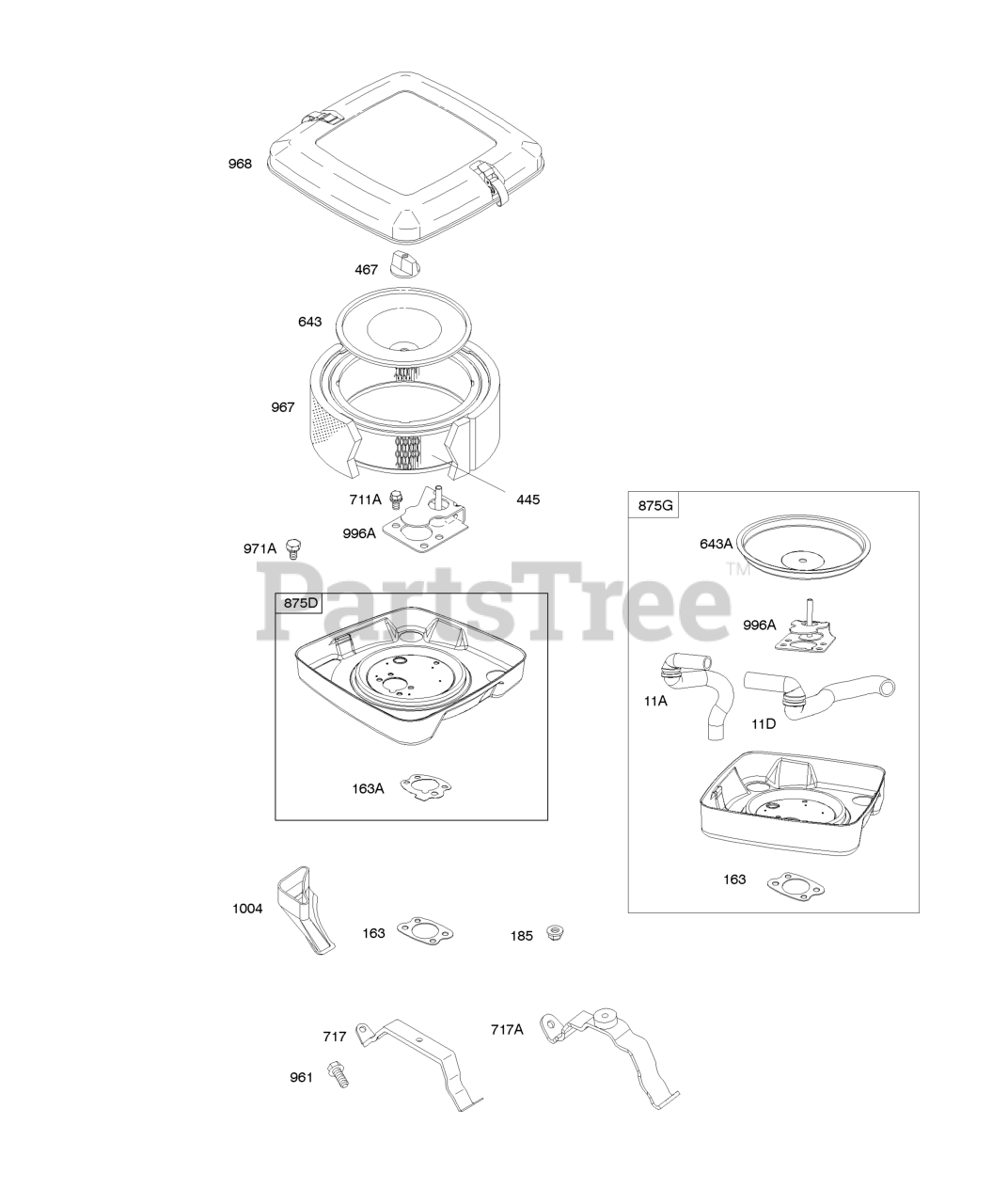

295772-0112-E1 - Briggs & Stratton Vertical Engine Air Cleaner Parts Diagram

Vertical Engine

Air Cleaner Parts Diagram

  • Title

11A

Briggs & Stratton 844921

Tube-Breather

$15.99

$

Usually ships in 2-12 days

0

11D

Briggs & Stratton 844976

Tube-Breather

$26.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 692081

Gasket-Air Cleaner

Note: Used Before Code Date 10010200

$5.49

$

In Stock, Qty 20+

0

163A

Briggs & Stratton 844931

Gasket-Air Cleaner

Note: Used After Code Date 10010100

$5.49

$

In Stock, only 1 left!

0

185

Briggs & Stratton 690939

NUT

Note: (Air Cleaner Base) (Air Cleaner Base)

$3.49

$

In Stock, only 2 left!

0

445

Briggs & Stratton 394018S

Filter-A/C Cartridge

$25.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 846431

Knob-Air Cleaner Cover

Note: Used After Code Date 14102300

$7.99

$

In Stock, Qty 7

0

467

Briggs & Stratton 844618

Knob-Air Cleaner Cover

Note: Used Before Code Date 14102400

$7.99

$

In Stock, Qty 7

0

643

Briggs & Stratton 692079

Retainer-Air Filter
(Superseded to 844932)

Note: Used Before Code Date 10010200

$22.99

$

In Stock, only 1 left!

0

643A

Briggs & Stratton 844932

RETAINER, Air Filter

Note: Used After Code Date 10010100

$22.99

$

In Stock, only 1 left!

0

711A

Briggs & Stratton 807084

SCREW

Note: (Carburetor Shield)

$3.49

$

In Stock, Qty 13

0

717

Briggs & Stratton 692542

Bracket-Air Cleaner

$8.49

$

In Stock, only 1 left!

0

875D

Briggs & Stratton 844929

Base-Air Cleaner

Note: Used After Code Date 10010100

$72.99

$

Usually ships in 2-12 days

0

875G

Briggs & Stratton 846046

Base-Air Cleaner

Note: Used Before Code Date 10010200

$96.99

$

Usually ships in 2-12 days

0

961

Briggs & Stratton 841233

SCREW

Note: (Air Cleaner Bracket)

$3.49

$

In Stock, only 2 left!

0

967

Briggs & Stratton 272490S

Filter-Pre Cleaner

$5.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 699959

Cover-Air Cleaner

$59.99

$

In Stock, only 1 left!

0

971A

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Base to Carburetor/Throttle Body)

$3.49

$

In Stock, Qty 13

0

996A

Briggs & Stratton 844930

Shield-Carburetor

$36.99

$

Usually ships in 2-12 days

0

1004

Briggs & Stratton 841656

Duct-Air

$22.99

$

Usually ships in 2-12 days

0
