295777-0116-01 - Briggs & Stratton Vertical Engine Carburetor and Fuel Supply Group Parts Diagram

Vertical Engine

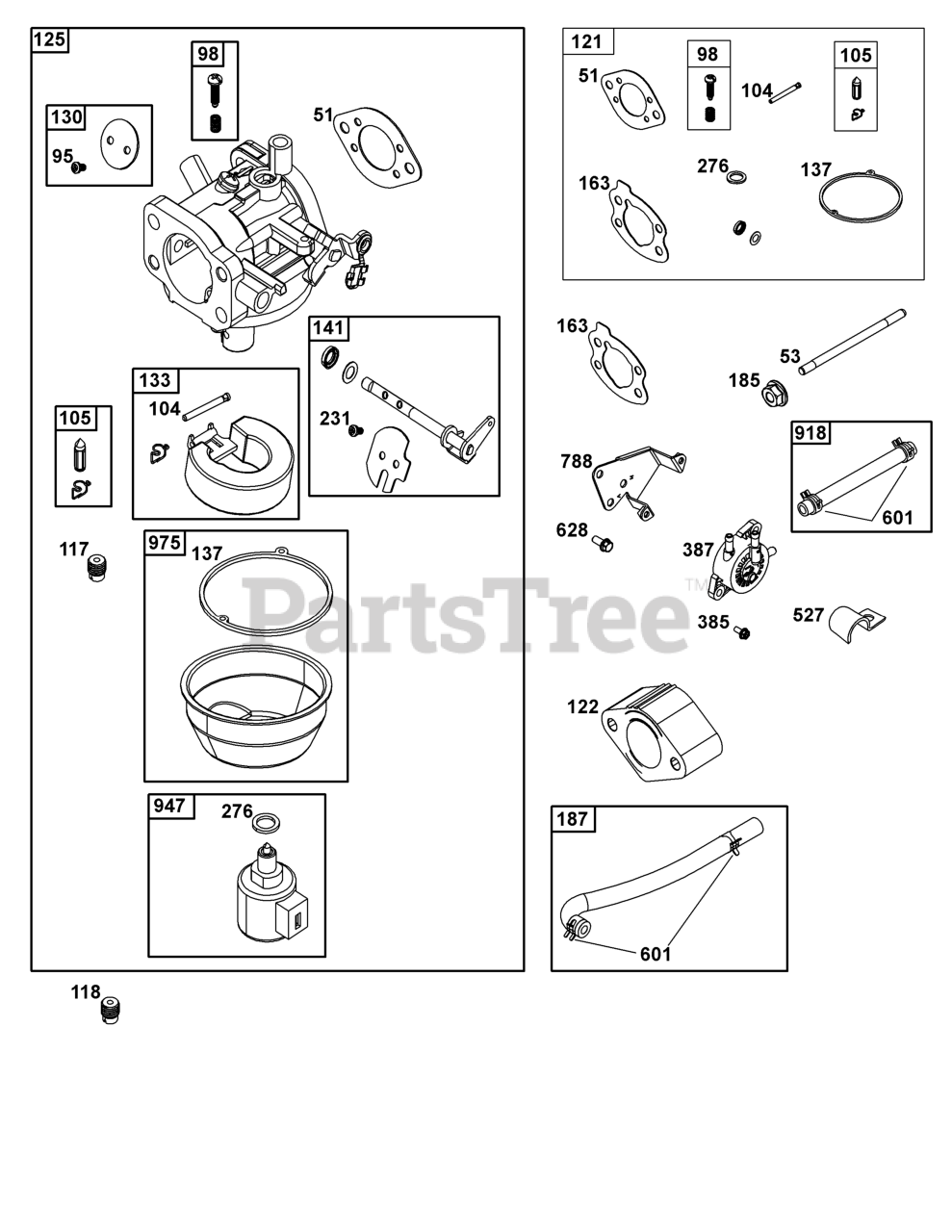

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 690746

STUD

Note: (Carburetor)

$8.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 846644

SCREW

$

$

Not available

98

Briggs & Stratton 846649

KIT, Idle Speed

$

$

Not available

104

Briggs & Stratton 846646

PIN, Float Hinge

$4.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 846643

VALVE, Float Needle

$6.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 846647

JET, Main

$

$

Not available

118

Briggs & Stratton 846590

JET, Main

Note: (High Altitude)

$

$

Not available

121

Briggs & Stratton 847318

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$113.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 846596

SPACER, Carburetor

$12.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 846592

CARBURETOR

$390.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 846638

VALVE, Throttle

$

$

Not available

133

Briggs & Stratton 846645

FLOAT, Carburetor

$41.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 846642

GASKET, Float Bowl

$7.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 846637

KIT, Choke Shaft

$

$

Not available

163

Briggs & Stratton 844931

GASKET, Air Cleaner

$5.99

$

In Stock, only 2 left!

0

185

NUT

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

187

Briggs & Stratton 846584

LINE, Fuel

$24.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 846644

SCREW

$

$

Not available

276

Briggs & Stratton 846640

WASHER, Sealing

$4.49

$

In Stock, only 3 left!

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump)

$3.99

$

In Stock, only 2 left!

0

387

Briggs & Stratton 597338

PUMP, Fuel

$30.99

$

In Stock, Qty 20+

0

527

Briggs & Stratton 690423

CLAMP, Tube

$5.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

628

Briggs & Stratton 806660

SCREW

Note: (Fuel Pump Bracket)

$4.49

$

In Stock, only 1 left!

0

788

Briggs & Stratton 691559

BRACKET, Fuel Pump

$25.99

$

In Stock, only 1 left!

0

918

Briggs & Stratton 791880

LINE, Fuel
(Superseded to 791760)

$9.99

$

In Stock, Qty 7

0

947

Briggs & Stratton 846639

SOLENOID, Fuel

$89.99

$

In Stock, Qty 20+

0

975

Briggs & Stratton 846641

BOWL, Float

$13.99

$

In Stock, only 1 left!

0
