295777-0116-01 - Briggs & Stratton Vertical Engine Cylinder Head Group Parts Diagram

Vertical Engine

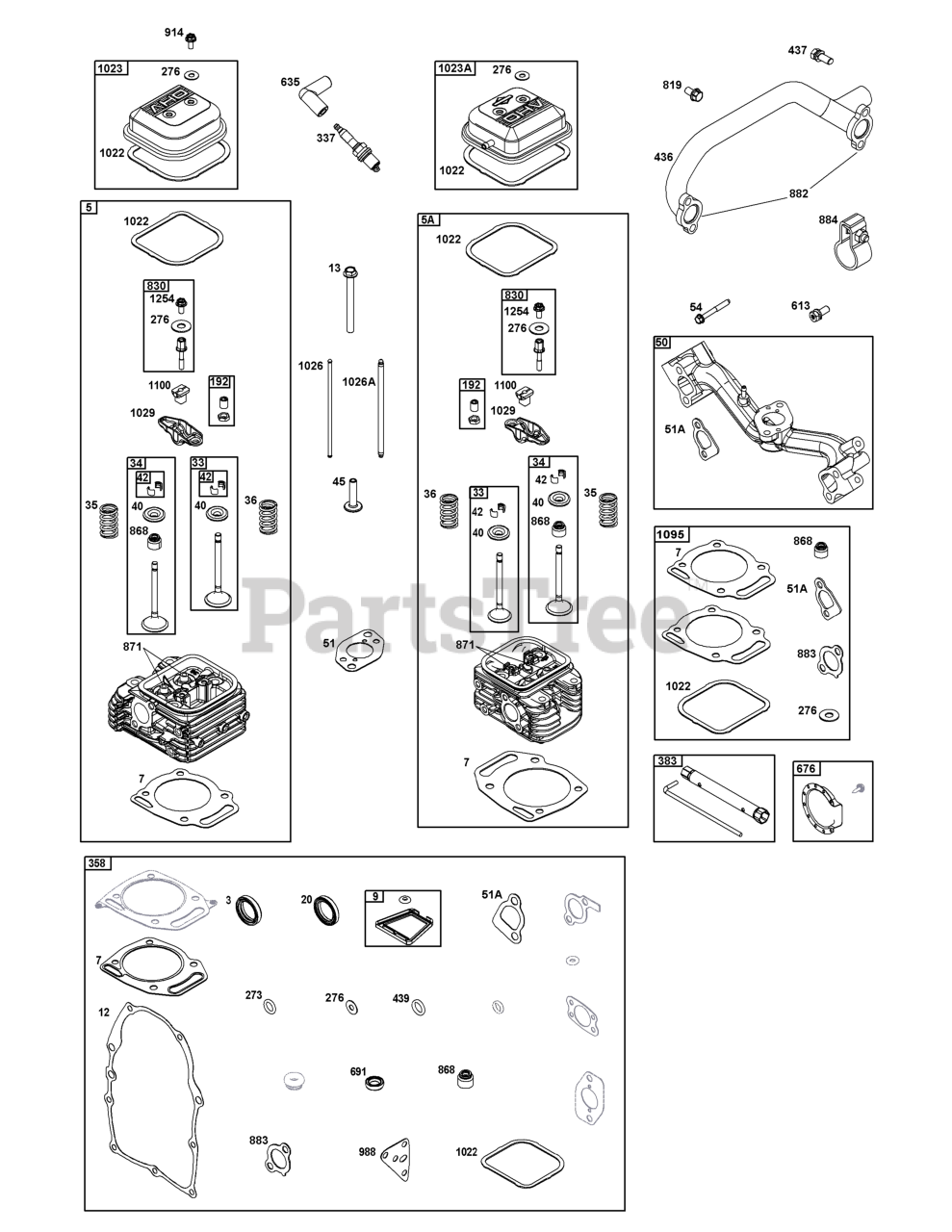

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 84002008

HEAD, CYLINDER

Note: (Cylinder #1)

$229.99

$

Usually ships in 2-12 days

0

5A

Briggs & Stratton 84002009

HEAD, Cylinder

Note: (Cylinder #2)

$232.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 806085S

GASKET, Cylinder Head

$28.99

$

In Stock, only 2 left!

0

9

GASKET, Breather

Note: (Part information located in Cylinder Group.)

$

$

Not available

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

13

Briggs & Stratton 692059

SCREW

Note: (Cylinder Head)

$3.99

$

In Stock, only 4 left!

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

33

Briggs & Stratton 808687

VALVE, Exhaust

$43.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 807680

VALVE, Intake

$26.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 692084

SPRING, Valve

Note: (Intake)

$6.49

$

In Stock, only 2 left!

0

36

Briggs & Stratton 692084

SPRING, Valve

Note: (Exhaust)

$6.49

$

In Stock, only 2 left!

0

40

Briggs & Stratton 692058

RETAINER, Valve

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 807683

KEEPER, Valve

$6.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 843379

TAPPET, Valve

$9.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 690754

MANIFOLD, Intake

$131.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 846597

GASKET, Intake

$2.99

$

In Stock, only 2 left!

0

51A

Briggs & Stratton 692035

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

54

Briggs & Stratton 846604

SCREW

Note: (Intake Manifold)

$5.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 807623

ADJUSTER. Rocker Arm

$11.99

$

In Stock, only 1 left!

0

273

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

276

Briggs & Stratton 807085

WASHER, Sealing

$3.99

$

In Stock, Qty 10

0

337

Briggs & Stratton 792015

PLUG, Spark

$6.99

$

In Stock, Qty 18

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 4 left!

0

436

Briggs & Stratton 691502

MANIFOLD, Exhaust

$128.99

$

Usually ships in 2-12 days

0

437

Briggs & Stratton 691902

SCREW

Note: (Exhaust Manifold)

$3.49

$

In Stock, only 4 left!

0

439

O-RING, Oil Gallery

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

613

Briggs & Stratton 592709

GUARD, Muffler

Note: (Muffler)

$53.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 84005066

BOOT, Spark Plug

$12.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 795036

DEFLECTOR, Muffler

$8.49

$

In Stock, Qty 6

0

691

SEAL, Governor Shaft

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

819

Briggs & Stratton 692056

SCREW

Note: (Muffler Bracket)

$5.99

$

In Stock, Qty 5

0

830

Briggs & Stratton 809157

STUD, Rocker Arm

$6.99

$

In Stock, Qty 18

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, only 3 left!

0

871

Briggs & Stratton 692057

BUSHING, Valve Guide
(Superseded to 84002672)

$12.99

$

In Stock, Qty 9

0

882

Briggs & Stratton 692074

FLANGE, Exhaust

$16.99

$

In Stock, only 2 left!

0

883

Briggs & Stratton 691613

GASKET, Exhaust

$5.49

$

In Stock, Qty 16

0

884

Briggs & Stratton 691956

CLAMP, Muffler

$15.99

$

In Stock, only 1 left!

0

914

Briggs & Stratton 807084

SCREW

Note: (Rocker Cover)

$3.49

$

In Stock, Qty 13

0

988

GASKET, Oil Adapter

Note: (Part information located in Lubrication Group.)

$

$

Not available

1022

Briggs & Stratton 806039S

GASKET, Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 691494

COVER, Rocker

$17.99

$

In Stock, only 1 left!

0

1023A

Briggs & Stratton 691558

COVER, Rocker

$20.99

$

In Stock, only 1 left!

0

1026

Briggs & Stratton 691836

ROD, Push

$12.99

$

In Stock, Qty 19

0

1026A

Briggs & Stratton 691758

ROD, Push

$11.99

$

In Stock, only 4 left!

0

1029

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

In Stock, Qty 9

0

1095

Briggs & Stratton 842723

GASKET SET, Valve

Note: (Service Kits may include extra parts not specific to this engine.)

$72.99

$

In Stock, only 1 left!

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

Usually ships in 2-12 days

0

1254

Briggs & Stratton 807084

SCREW

Note: (Rocker Arm Stud)

$3.49

$

In Stock, Qty 13

0
