29639 - Toro 50cm Walk-Behind Mower (SN: 316000001 - 316999999) (2016) Engine and Blade Assembly Parts Diagram

50cm Walk-Behind Mower

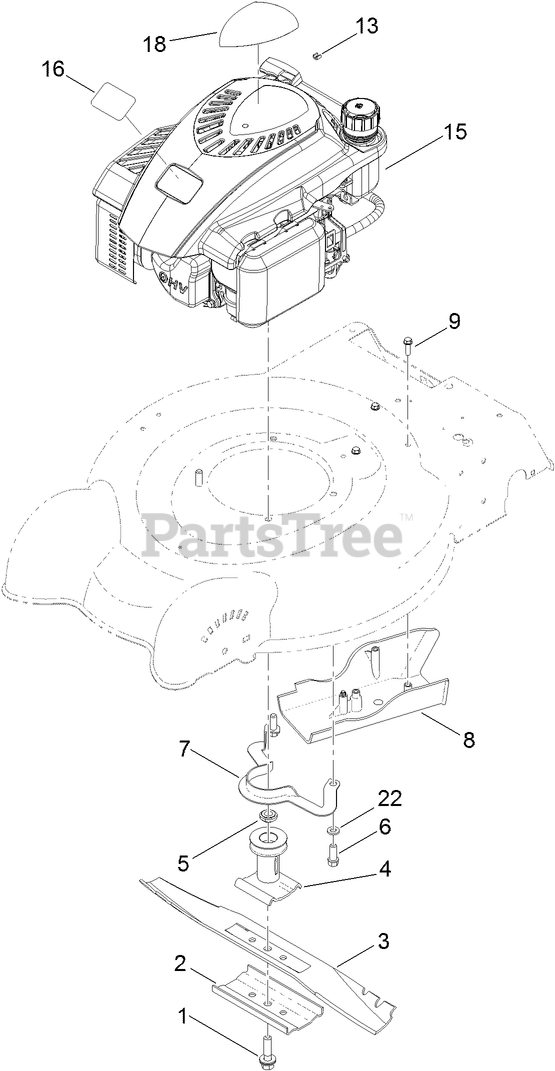

Engine and Blade Assembly Parts Diagram

  • Title

1

Toro 125-2466

BOLT-BLADE

$3.99

$

In Stock, Qty 20+

0

2

Toro 108-3766-03

SUPPORT-BLADE

$11.99

$

Usually ships in 3-6 days

0

3

Toro 112-8841-03

See Supercession: 133-8181-03
(Superseded to 133-8181-03)

$29.99

$

In Stock, Qty 5

0

4

Toro 106-3987

DRIVER-BLADE

$35.99

$

In Stock, only 3 left!

0

5

Toro 106-3999

SPACER-DRIVER

$3.99

$

In Stock, Qty 20+

0

6

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 105-3030-03

GUIDE-BELT

$15.99

$

In Stock, only 1 left!

0

8

Toro 112-8829

COVER-BELT

$21.99

$

In Stock, only 3 left!

0

9

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

13

Toro 92-1701

STOP-ROPE
(Superseded to 2210-316)

$8.49

$

Usually ships in 3-6 days

0

15

Toro 120-4411

See Supercession: 136-7909
(Superseded to 139-0607)

$580.99

$

Usually ships in 3-6 days

0

16

Toro 119-3808

PLATE-LOGO, TORO

$9.49

$

Usually ships in 3-6 days

0

18

Toro 120-1938

DECAL-SHROUD

$14.99

$

Usually ships in 3-6 days

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
