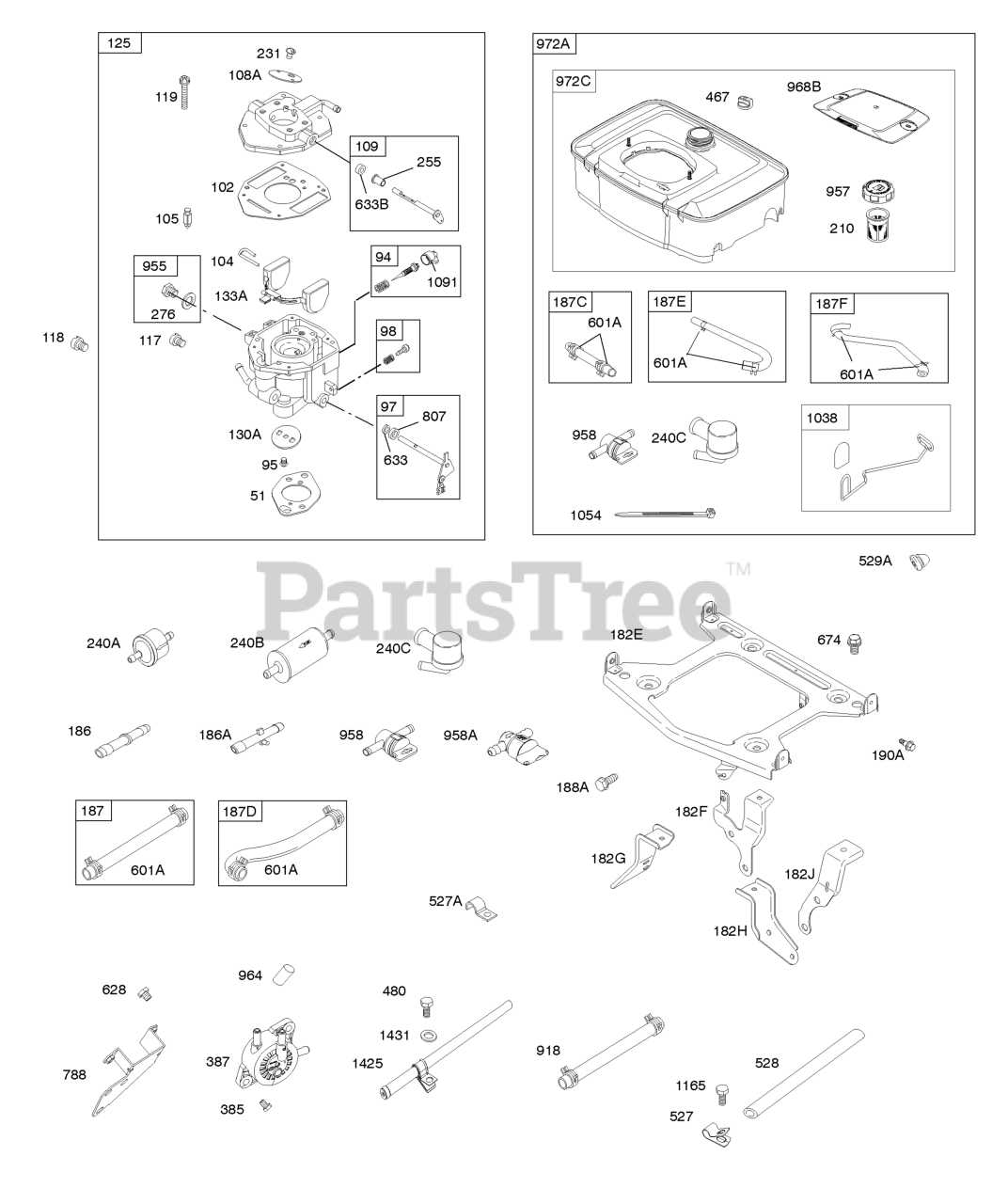

296447-0003-H1 - Briggs & Stratton Horizontal Engine Carburetor, Fuel Supply Parts Diagram

Horizontal Engine

Carburetor, Fuel Supply Parts Diagram

  • Title

51

Briggs & Stratton 691694

Gasket-Intake

Note: (Manifold To Carburetor)

$3.49

$

In Stock, Qty 16

0

94

Briggs & Stratton 844987

Kit-Idle Mixture

$48.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 809007

Shaft-Throttle

$47.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 808177

Kit-Idle Speed

$14.99

$

In Stock, only 1 left!

0

102

Briggs & Stratton 692077

Gasket-Carburetor Body

$25.99

$

In Stock, Qty 6

0

104

Briggs & Stratton 690723

Pin-Float Hinge

$10.99

$

In Stock, only 2 left!

0

105

Briggs & Stratton 805620

Valve-Float Needle

$46.99

$

In Stock, only 2 left!

0

108A

Briggs & Stratton 844989

Valve-Choke

$9.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 808398

Shaft-Choke

$47.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 690881

Jet-Main

Note: (Standard)

$16.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 844990

Jet-Main

Note: (High Altitude) (5000 Feet)

$21.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 809442

Jet-Main

Note: (High Altitude) (9000 Feet)

$21.99

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 690720

Screw

Note: (Upper Carburetor Body to Lower Carburetor Body)

$3.99

$

In Stock, only 1 left!

0

125

Briggs & Stratton 844992

Carburetor

$337.99

$

Usually ships in 2-12 days

0

130A

Briggs & Stratton 690726

Valve-Throttle

$20.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 844546

Float-Carburetor

$32.99

$

In Stock, Qty 5

0

182E

Briggs & Stratton 841601

Bracket-Fuel Tank

$123.99

$

Usually ships in 2-12 days

0

182F

Briggs & Stratton 691520

Bracket-Fuel Tank

$40.99

$

Usually ships in 2-12 days

0

182H

Briggs & Stratton 691524

Bracket-Fuel Tank

$40.99

$

Usually ships in 2-12 days

0

182J

Briggs & Stratton 691525

Bracket-Fuel Tank

$23.99

$

In Stock, only 1 left!

0

182G

Briggs & Stratton 841600

Bracket-Fuel Tank

$29.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 844032

Connector-Hose

$7.49

$

Usually ships in 2-12 days

0

186A

Briggs & Stratton 845121

Connector-Hose

$6.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$8.49

$

In Stock, Qty 12

0

187C

Briggs & Stratton 692106

Line-Fuel

$14.99

$

Usually ships in 2-12 days

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed Hose)

$16.99

$

In Stock, only 1 left!

0

187E

Briggs & Stratton 844556

Line-Fuel

Note: (Formed Hose)

$31.99

$

Usually ships in 2-12 days

0

187F

Briggs & Stratton 844560

Line-Fuel

$43.99

$

Usually ships in 2-12 days

0

188A

Briggs & Stratton 692056

Screw

Note: (Control Bracket) (M8x14mm)

$5.99

$

In Stock, only 4 left!

0

190A

Briggs & Stratton 692199

Screw

Note: (Fuel Tank)

$3.99

$

In Stock, only 3 left!

0

210

Briggs & Stratton 691370

Strainer-Fuel

$9.99

$

In Stock, only 2 left!

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

In Stock, only 2 left!

0

240A

Briggs & Stratton 691035

FILTER, Fuel
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

240C

Briggs & Stratton 844545

Filter-Fuel

$13.99

$

In Stock, Qty 16

0

240B

Briggs & Stratton 845125

FILTER, Fuel

$7.99

$

In Stock, Qty 20+

0

255

Briggs & Stratton 690721

BUSHING, Choke Shaft

$8.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 690724

Washer-Sealing

Note: (Governor Crank)

$8.49

$

In Stock, Qty 8

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump)

$3.99

$

In Stock, only 2 left!

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$30.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 844618

Knob-Air Cleaner Cover

$8.99

$

In Stock, only 1 left!

0

480

Briggs & Stratton 806660

Screw

Note: (Tube Clamp) (Clamp)

$4.49

$

In Stock, only 1 left!

0

527

Briggs & Stratton 845268

Clamp-Tube

$4.99

$

Usually ships in 2-12 days

0

527A

Briggs & Stratton 690423

CLAMP, Tube

$5.49

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 845267

Hose-Primer

$8.99

$

Usually ships in 2-12 days

0

529A

Briggs & Stratton 691527

Grommet

$7.99

$

In Stock, only 1 left!

0

601A

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

628

Briggs & Stratton 806660

Screw

Note: (Fuel Pump Bracket)

$4.49

$

In Stock, only 1 left!

0

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

$16.99

$

In Stock, only 3 left!

0

633B

Briggs & Stratton 806131

SEAL, Choke/Throttle Shaft

Note: (Throttle)

$6.49

$

Usually ships in 2-12 days

0

674

Briggs & Stratton 692062

Screw

Note: (Fuel Tank Bracket)

$3.99

$

In Stock, only 4 left!

0

788

Briggs & Stratton 691559

Bracket-Fuel Pump

$25.99

$

In Stock, only 1 left!

0

807

Briggs & Stratton 805557

Spacer-Throttle

$7.49

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 791880

Hose-Vacuum
(Superseded to 791760)

$9.99

$

In Stock, Qty 7

0

955

Briggs & Stratton 807723

Plug-Carburetor

$6.99

$

In Stock, Qty 11

0

957

Briggs & Stratton 795027

Cap-Fuel Tank

$10.99

$

In Stock, Qty 16

0

958

Briggs & Stratton 692008

Valve-Fuel Shut Off
(Superseded to 698183)

Note: (Plastic)

$8.99

$

In Stock, Qty 7

0

958A

Briggs & Stratton 698183

VALVE, Fuel Shut Off(PLT)

Note: (Plastic)

$8.99

$

In Stock, Qty 7

0

964

Briggs & Stratton 590799

CAP, Connector

$10.99

$

Usually ships in 2-12 days

0

968B

Briggs & Stratton 844559

Cover-Air Cleaner

$67.99

$

Usually ships in 2-12 days

0

972C

Briggs & Stratton 844558

Tank-Fuel

Note: (Plastic)

$511.99

$

Usually ships in 2-12 days

0

1038

Briggs & Stratton 844555

Rod-Fuel Shut Off

$15.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 844448

Cap-Limiter

$9.49

$

Usually ships in 2-12 days

0

1165

Briggs & Stratton 692056

Screw

Note: (Clamp)

$5.99

$

In Stock, only 4 left!

0

1425

Briggs & Stratton 844712

Hose-Purge Line

$32.99

$

Usually ships in 2-12 days

0

1431

Briggs & Stratton 844035

WASHER

Note: (Tube Clamp)

$5.49

$

Usually ships in 2-12 days

0
