29734 - Toro 53cm Mulching Walk-Behind Mower (SN: 316000001 - 316999999) (2016) HOUSING ASSEMBLY Parts Diagram

53cm Mulching Walk-Behind Mower

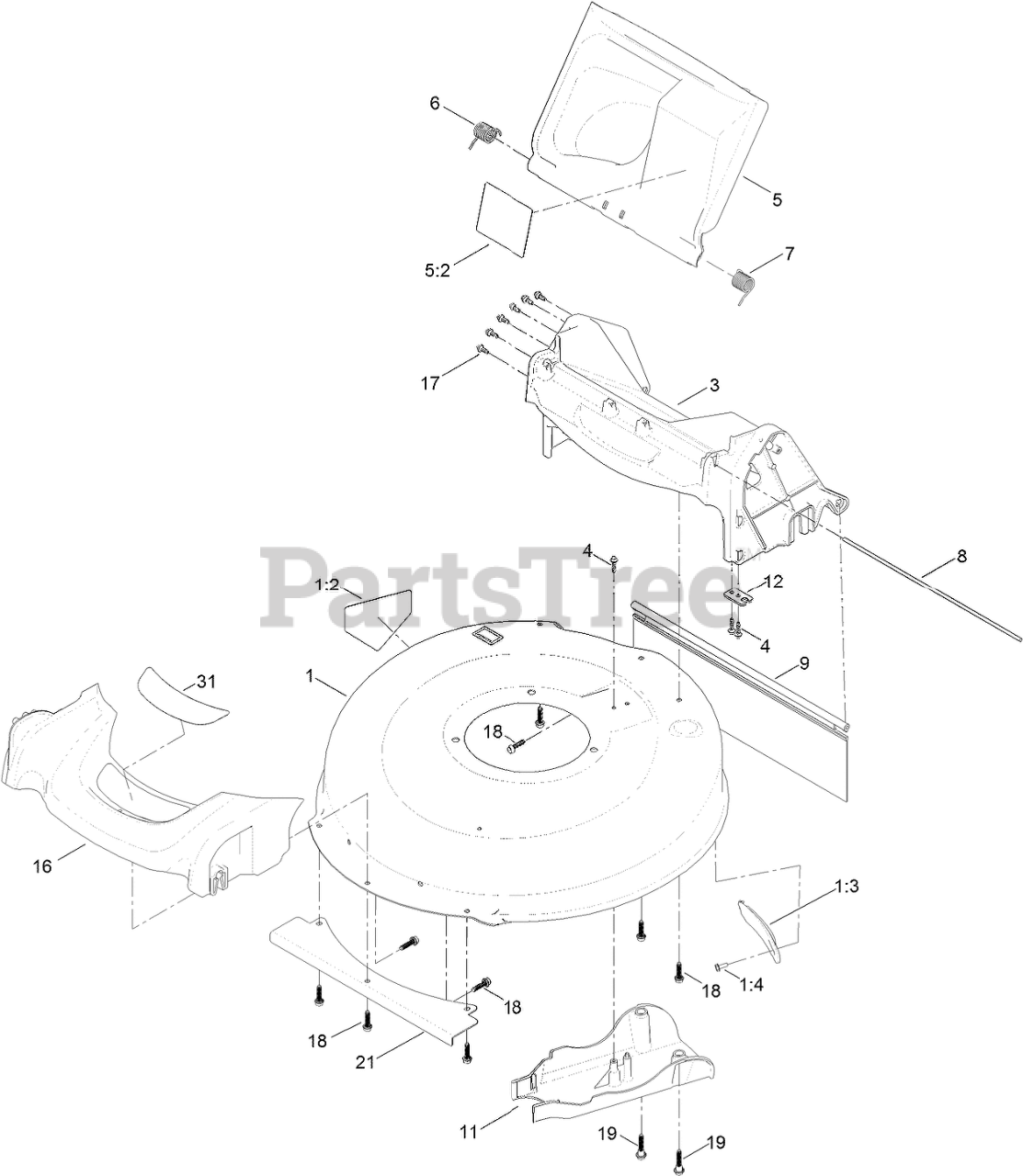

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 133-1939

HOUSING ASM

$

$

Currently unavailable

1:2

Toro 112-8760

DECAL-DANGER

$12.99

$

In Stock, only 3 left!

0

1:3

Toro 132-4518

COVER-BELT

$2.99

$

Usually ships in 3-6 days

0

1:4

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 19

0

3

Toro 130-6656

CHUTE ASM
(Superseded to 139-1805)

$42.99

$

In Stock, only 2 left!

0

4

Toro 127-6831

SCREW-HWH

$0.99

$

In Stock, Qty 9

0

5

Toro 130-2368

REAR DEFLECTOR ASM

$29.99

$

In Stock, only 3 left!

0

5:2

Toro 117-4143

DECAL-WARNING

$6.49

$

Usually ships in 3-6 days

0

6

Toro 127-6807

SPRING-TORSION

$3.99

$

In Stock, only 2 left!

0

7

Toro 127-6808

SPRING-TORSION

$

$

Not available

8

Toro 127-0698

ROD-DOOR

$3.49

$

In Stock, only 1 left!

0

9

Toro 127-0724

SHIELD-TRAILING

$14.99

$

In Stock, only 2 left!

0

11

Toro 127-0723

COVER-BELT

$12.99

$

In Stock, only 2 left!

0

12

Toro 127-0730

BRACKET-CABLE

$1.49

$

In Stock, Qty 7

0

16

Toro 127-0677

BUMPER

$25.99

$

In Stock, only 2 left!

0

17

Toro 130-2355

STUD

$0.99

$

In Stock, Qty 13

0

18

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, only 2 left!

0

19

Toro 131-0837

SCREW-SHOULDER, HHF

$1.99

$

In Stock, Qty 7

0

21

Toro 131-0820-03

SHIELD-FRONT

$

$

Currently unavailable

31

Toro 130-6740

DECAL-DECK

$4.49

$

Usually ships in 3-6 days

0
