2P4B9 B - Electrolux/AYP Lawn Tractor (1995) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

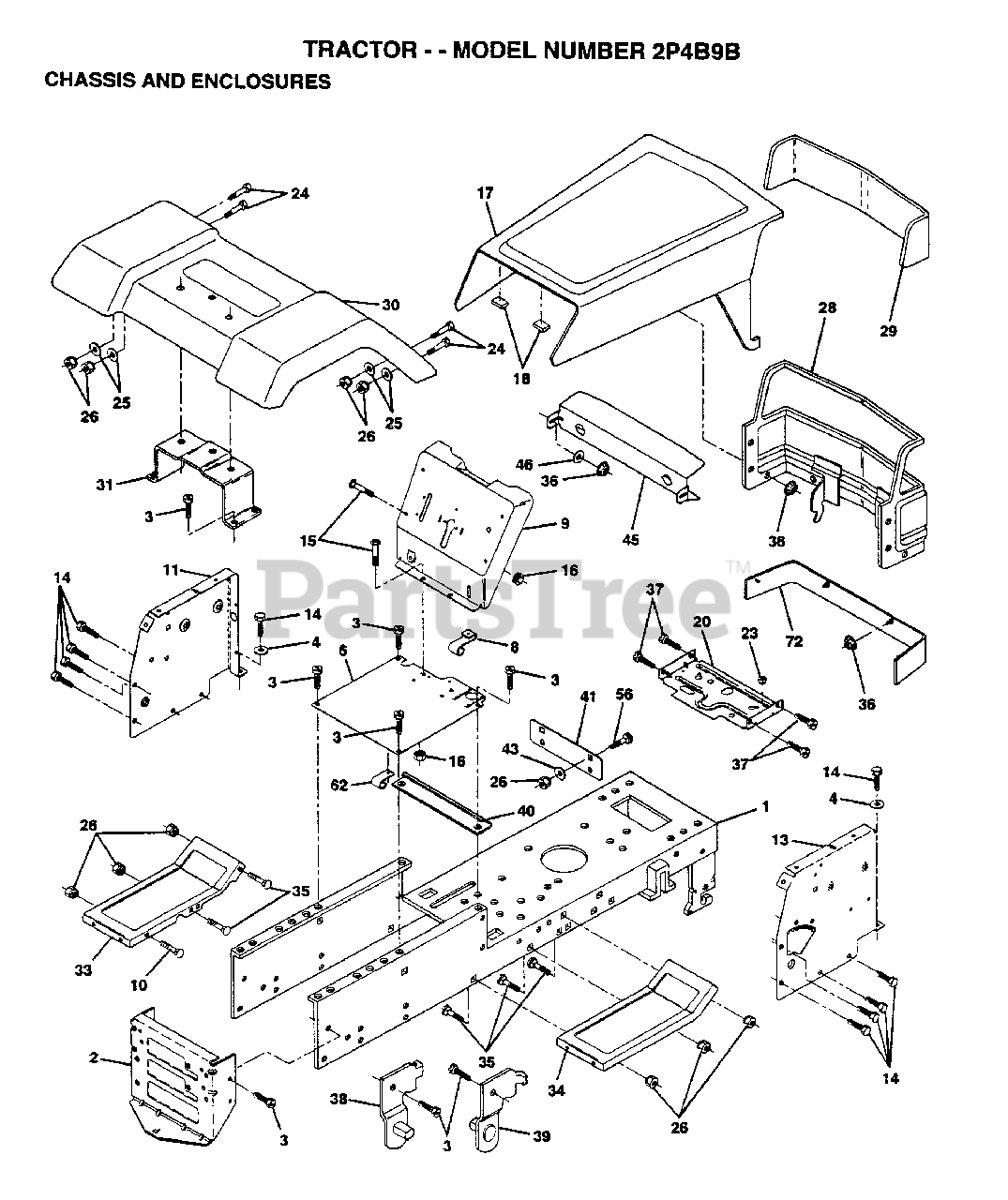

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 145501

CHASSIS.WLD.11GA
(Superseded to 532135034)

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 19131216

WASHER
(Superseded to 819131216)

$

$

Not available

6

Electrolux/AYP 145206

SUB= 145206X431

$

$

Not available

8

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$

$

Not available

9

Electrolux/AYP 140637X012

DASH.1-PC

$

$

Not available

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 135464

DASH PANEL LH
(Superseded to 146956)

$10.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 124031X012

SUB= 155934X010

$

$

Not available

14

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$

$

Not available

15

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

16

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 146887X505

SUB= 146460X505

$

$

Not available

18

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

20

Electrolux/AYP 140281

SUB= 140281X431

$

$

Not available

23

Murray 124028X

SUB= 532124028

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$

$

Not available

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$

$

Not available

28

Electrolux/AYP 133951X505

GRILLE.WLD.RLY.LT

$67.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 133805

SUB= 133954
(Superseded to 133954)

$

$

Not available

30

Electrolux/AYP 140001X505

FENDER PNT LT

$104.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 139976

BRACKET SUPT FEND
(Superseded to 532139976)

$20.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 145244X505

FOOTREST.LH.LT/GT
(Superseded to 532181164)

$45.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 145243X505

FOOTREST.RH.LT/GT
(Superseded to 532181193)

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$

$

Not available

36

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

37

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$3.49

$

In Stock, only 2 left!

0

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$

$

Not available

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

40

Electrolux/AYP 139977

SPACER FENDER LT

$

$

Not available

41

Electrolux/AYP 139978

PLATE EXTEN FEND

$

$

Not available

43

Electrolux/AYP 19171416

WASHER
(Superseded to 819171416)

$4.99

$

In Stock, only 3 left!

0

45

Electrolux/AYP 132257

SUB= 918132257
(Superseded to 132257X417)

$

$

Not available

46

Electrolux/AYP 127316X

RETAINER
(Superseded to 532127316)

$

$

Not available

56

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

60

Electrolux/AYP 11050500

LOCKWASHER.5/16.E
(Superseded to 811050500)

$

$

Not available

61

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.49

$

In Stock, Qty 20+

0

62

Electrolux/AYP 141606

CLIP.WIRE

$2.49

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 109745X505

STRAP ASM GRILL

$3.99

$

Usually ships in 3-10 days

0
