2P659 A - Electrolux/AYP Walk-Behind Mower REAR BAGGER MOWER Parts Diagram

Walk-Behind Mower

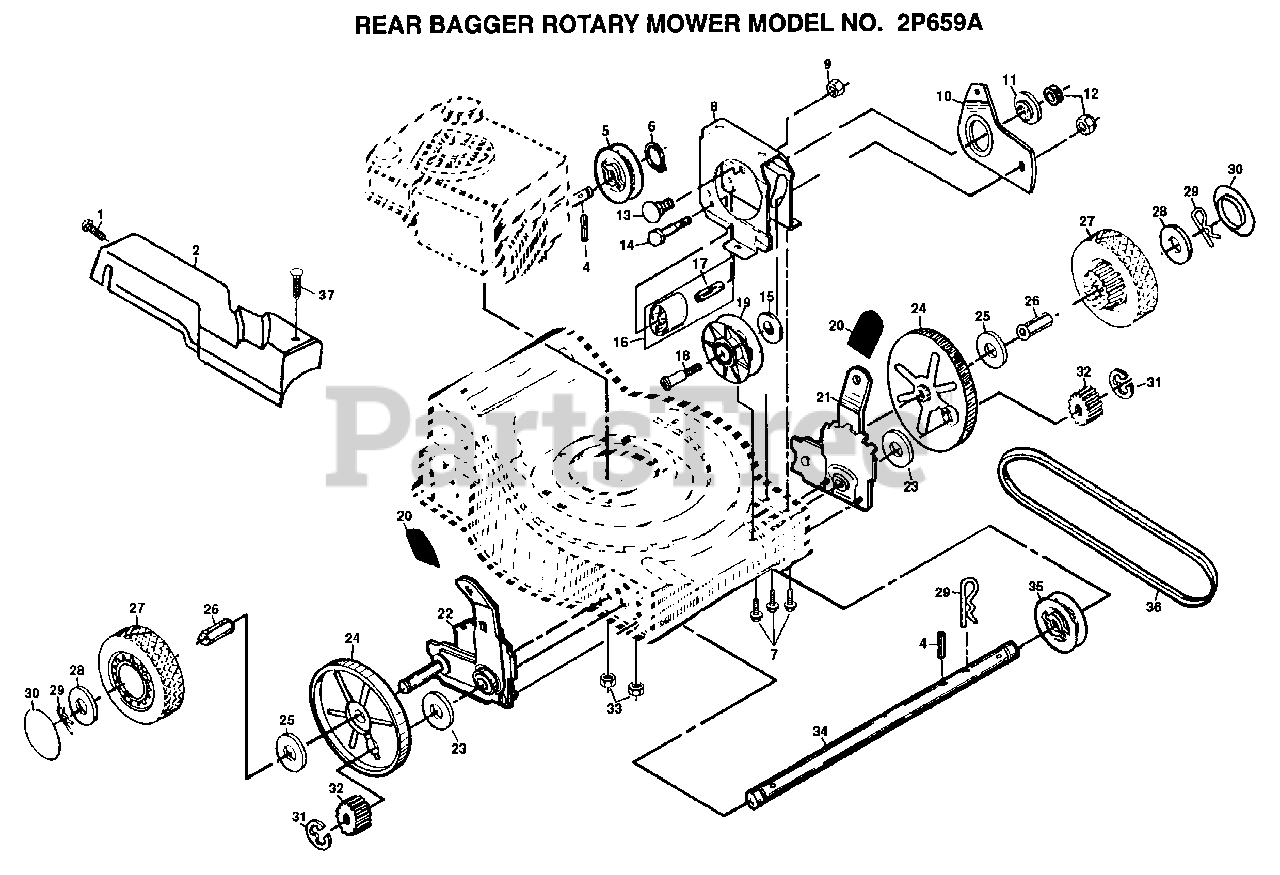

REAR BAGGER MOWER Parts Diagram

  • Title

1

Electrolux/AYP 141912

SCREW HXHD 10-24
(Superseded to 582959401)

$4.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 701459

COVER.DRV.B&S.20

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 851980

DRIVE PAWL
(Superseded to 164795)

$

$

Not available

5

Electrolux/AYP 88043

PULLEY PM

$

$

Not available

6

Electrolux/AYP 12000030

RETAINING RING ST
(Superseded to 812000030)

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 54583

SCREW
(Superseded to 532054583)

$

$

Not available

8

Electrolux/AYP 851947X004

"CLUTCH,FRAME"

$2.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 50962

LOCKNUT
(Superseded to 73850400)

$

$

Not available

10

Electrolux/AYP 702631X004

LEVER.CLUTCH

$2.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 88067

SPACER PM
(Superseded to 582944101)

$2.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 750253

LOCKNUT
(Superseded to 584456901)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 72070504

CARRIAGE BOLT
(Superseded to 583611001)

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 74350424

BOLT 1/4-20-1 1/2

$

$

Not available

15

Electrolux/AYP 88069

SPACER PM
(Superseded to 582944201)

$11.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 48160

IDLER ASSY

$

$

Not available

17

Electrolux/AYP 88576

IDLER SPACER
(Superseded to 532088576)

$8.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 88517

SHOULDER BOLT
(Superseded to 582944801)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 88516

IDLER PULLEY
(Superseded to 532088516)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 87877

KNOB PM
(Superseded to 532087877)

$6.49

$

In Stock, only 3 left!

0

21

Electrolux/AYP 148758

SUB= 151207

$

$

Not available

22

Electrolux/AYP 148759

SUB= 151206
(Superseded to 583531001)

$36.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 88118

WASHER PM
(Superseded to 532088118)

$6.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 88080

DUST SHROUD PM
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 67725

WASHER FLUT
(Superseded to 532067725)

$7.49

$

In Stock, Qty 20+

0

26

Electrolux/AYP 88446

BUSHING.HEX

$

$

Not available

27

Electrolux/AYP 850690

WHEEL &TIRE ASSY
(Superseded to 532193144)

$

$

Not available

28

Electrolux/AYP 52160

WASHER
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 85179

RETAINER CLIP PM
(Superseded to 532085179)

$7.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 77400

HUB CAP
(Superseded to 532077400)

$7.49

$

In Stock, only 2 left!

0

31

Electrolux/AYP 12000058

E-RING.7/16.RE.
(Superseded to 812000058)

$3.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 137054

PINION.GEAR
(Superseded to 532137054)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

34

Electrolux/AYP 700537

SHAFT.DRIVE.17.81
(Superseded to 583601001)

$27.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 88082

DRIVE PULLEY PM
(Superseded to 532088082)

$

$

Not available

36

Electrolux/AYP 111924X

SUB= TH3H340

$

$

Not available

Electrolux/AYP 852000

"DECAL,CLEAN UNDER"

$2.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 701477

FASTNER PUSH DRCV

$

$

Not available

Electrolux/AYP MA36

CLIPPING DEFL

$47.99

$

Usually ships in 3-10 days

0

Electrolux/AYP MK20FRD

"KIT, MULCHER 20"""

$53.99

$

Usually ships in 3-10 days

0
