2P70MU - Troy-Bilt Engine 2P70MU Cylinder Head Parts Diagram

Engine

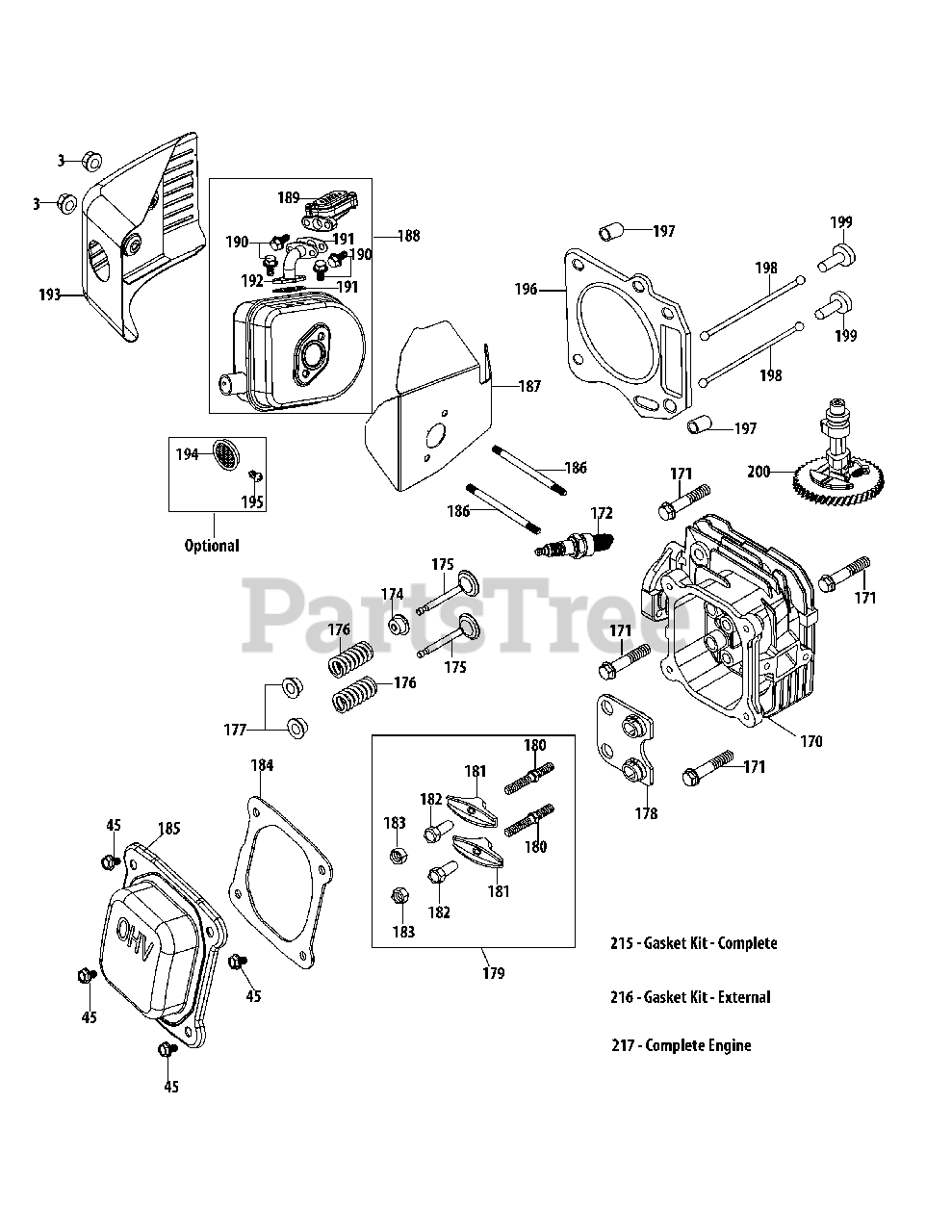

2P70MU Cylinder Head Parts Diagram

  • Title

3

Troy-Bilt 712-04212

Nut M6X10mm
(Superseded to 712-05015)

$6.49

$

In Stock, only 4 left!

0

45

Troy-Bilt 710-04916

Bolt M6X14

$4.49

$

In Stock, only 2 left!

0

170

Troy-Bilt 951-10413B

Cylinder Head Assembly

Note: (Incl.167,168,170,173-478,180-184,187,196)

$174.99

$

Usually ships in 3-6 days

0

171

Troy-Bilt 710-04982

Bolt M8X54

$3.99

$

Usually ships in 3-6 days

0

172

Troy-Bilt 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

174

Troy-Bilt 951-11818

Intake Valve Seal

$10.99

$

Usually ships in 3-6 days

0

175

Troy-Bilt 951-10345

Valve Kit

$60.99

$

Usually ships in 3-6 days

0

176

Troy-Bilt 951-12116

Valve Spring

$3.49

$

Usually ships in 3-6 days

0

177

Troy-Bilt 951-12000

Valve Spring Retainer

$3.99

$

In Stock, only 1 left!

0

178

Troy-Bilt 951-11629

Push Rod Guide

$7.49

$

In Stock, only 3 left!

0

179

Troy-Bilt 951-11606

Rocker Arm Assembly

$37.99

$

In Stock, only 1 left!

0

180

Troy-Bilt 710-04902

Rocker Arm Stud

$6.49

$

In Stock, Qty 12

0

181

Troy-Bilt 951-12001

Rocker Arm

$7.49

$

In Stock, only 1 left!

0

182

Troy-Bilt 751-11123

Fulcrum Nut

$9.99

$

In Stock, Qty 10

0

183

Troy-Bilt 751-11124

Jam Nut

$8.99

$

In Stock, Qty 6

0

184

Troy-Bilt 951-11551

Valve Cover Gasket

$9.99

$

In Stock, Qty 11

0

185

Troy-Bilt 951-11548

Valve Cover

$13.99

$

Usually ships in 3-6 days

0

186

Troy-Bilt 710-05094

Muffler Stud M6X95

$4.49

$

In Stock, Qty 8

0

186

Troy-Bilt 951-10342

Muffler Stud Assemlby

$9.49

$

In Stock, only 2 left!

0

187

Troy-Bilt 951-12474

Muffler Gasket

$

$

Not available

188

Troy-Bilt 951-12740

Muffler Assembly

$75.99

$

In Stock, only 1 left!

0

189

Troy-Bilt 951-12741

Secondary Air Valve

$14.99

$

Usually ships in 3-6 days

0

190

Troy-Bilt 710-05434

Bolt M6×12

$3.49

$

Usually ships in 3-6 days

0

191

Troy-Bilt 951-12743

Secondary Air Valve Gasket

$5.49

$

Usually ships in 3-6 days

0

192

Troy-Bilt 951-12742

Secondary Air Tube

$6.99

$

Usually ships in 3-6 days

0

193

Troy-Bilt 951-12744

Muffler Shield

$26.99

$

Usually ships in 3-6 days

0

194

Troy-Bilt 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$51.99

$

Usually ships in 3-6 days

0

195

Troy-Bilt 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

196

Troy-Bilt 951-11630

Cylinder Head Gasket

$11.99

$

Usually ships in 3-6 days

0

197

Troy-Bilt 715-04108

Cylinder Head Dowel Pin 10×16

$3.99

$

In Stock, only 3 left!

0

198

Troy-Bilt 751-10344

Push Rod Kit
(Superseded to 951-10344)

$17.99

$

Usually ships in 3-6 days

0

199

Troy-Bilt 951-11607

Tappet

$7.99

$

Usually ships in 3-6 days

0

200

Troy-Bilt 951-11767

Camshaft Assembly

$63.99

$

Usually ships in 3-6 days

0

215

Troy-Bilt 951-10416A

Gasket Kit - Complete

Note: (Incl.47,49,75,97,103,114,130,166,168,184,187,196)

$

$

Not available

216

Troy-Bilt 951-10417A

Gasket Kit - External

Note: (Incl.49,103,114,166,168,184,187)

$41.99

$

Usually ships in 3-6 days

0

217

Troy-Bilt 952Z2P70MU

Complete Engine

$

$

Not available
