2P70MU - Troy-Bilt Engine 2P70MU Flywheel & Shroud Parts Diagram

Engine

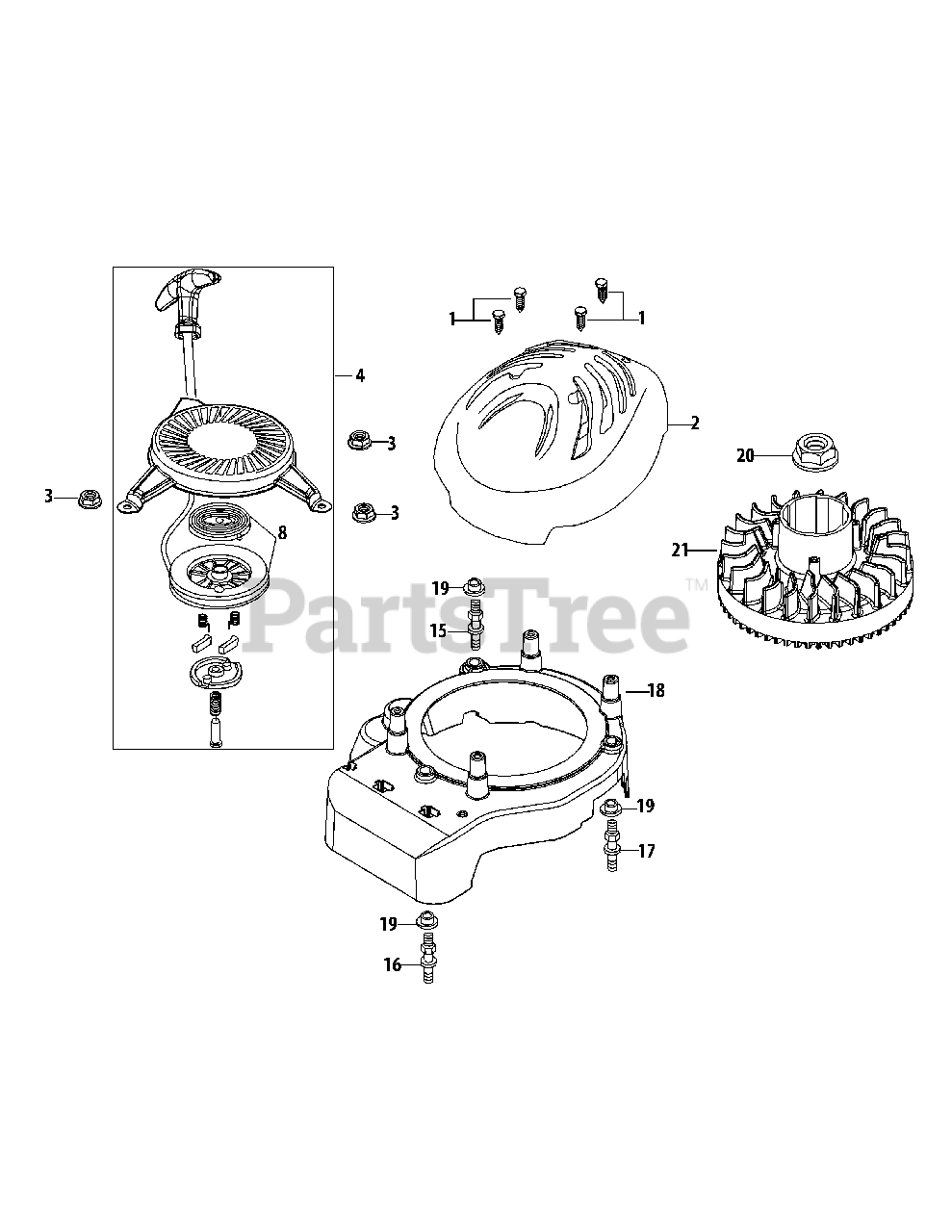

2P70MU Flywheel & Shroud Parts Diagram

  • Title

1

Troy-Bilt 710-04744

Self-Tapping Bolt, Hilo #12-16 X 1.00"

$5.49

$

In Stock, Qty 11

0

2

Outer Shroud (Model Specific)

Note: Refer to unit breakdown

$

$

Not available

3

Troy-Bilt 712-04212

Nut M6X10mm
(Superseded to 712-05015)

$6.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 951-12683

Recoil Starter Assembly

$92.99

$

In Stock, Qty 5

0

8

Troy-Bilt 951-11721

Recoil Spring And Pulley Ass'Y

$46.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 710-04976

Stud Left/Black/Wh Zinc

$4.49

$

In Stock, Qty 9

0

16

Troy-Bilt 710-04977

Stud Front/Unmarked/Wh Zinc

$4.49

$

In Stock, Qty 5

0

17

Troy-Bilt 710-04978

Stud Right/White/Wh Zinc

$3.99

$

In Stock, only 4 left!

0

18

Troy-Bilt 951-10855

Inner Shroud

$48.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 951-12846

Inner Shroud (Incl.19)

$

$

Not available

19

Troy-Bilt 750-05320

Engine Shroud Spacer

$4.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 712-04287

Flywheel Nut M14

$6.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 951-12470

Flywheel

$134.99

$

Usually ships in 3-6 days

0
