2X 24 (31AM5BTR709) - Cub Cadet 2X 24" Snow Thrower (2018) Handle Panel Parts Diagram

2X 24" Snow Thrower

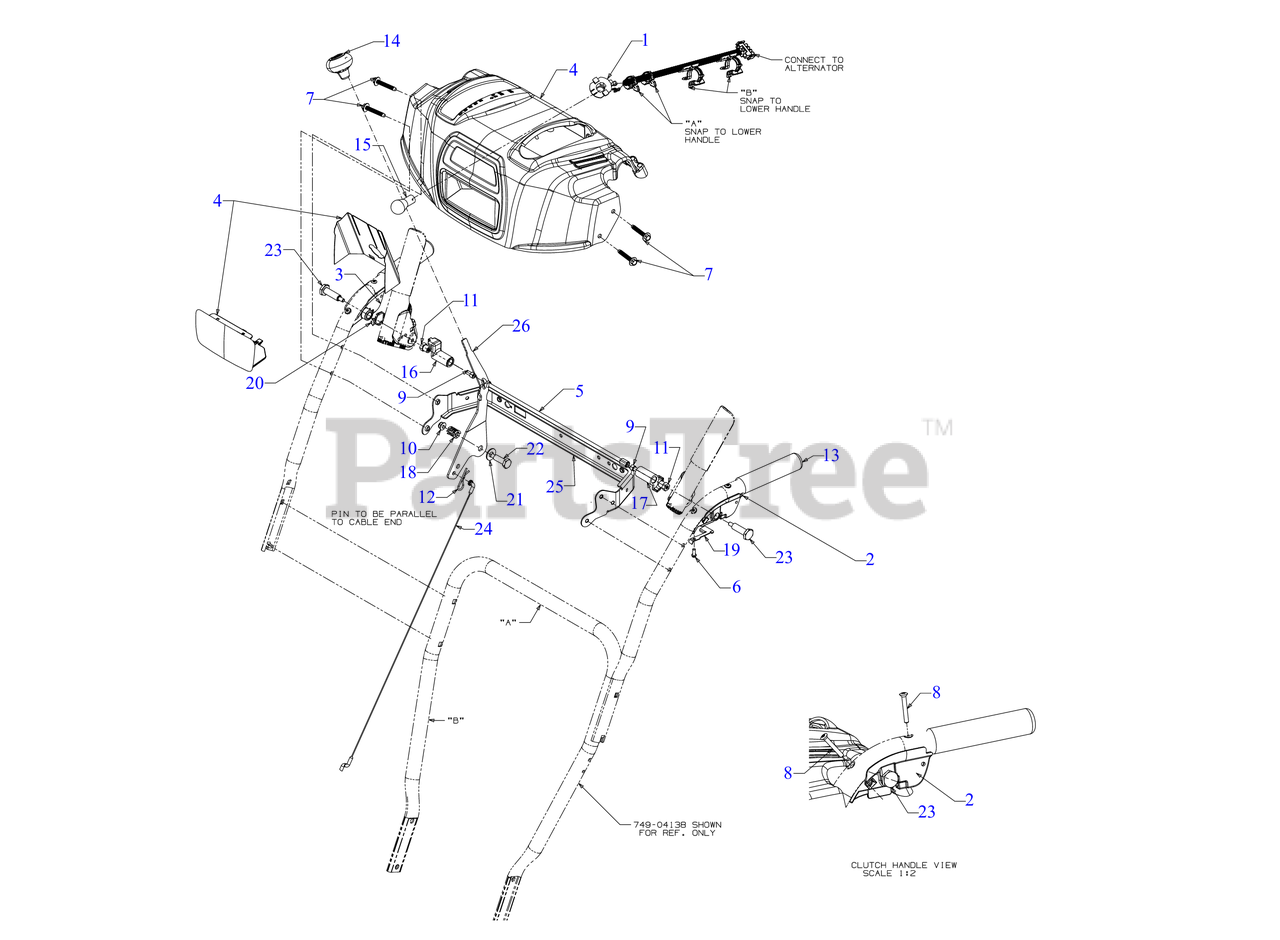

Handle Panel Parts Diagram

  • Title

1

Cub Cadet 925-06927

LIGHT HARNESS

$25.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 925-1649

HEADLIGHT SOCKET
(Superseded to 925-1649A)

Note: (Not Shown)

$10.99

$

In Stock, Qty 20+

0

2

Cub Cadet 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$14.99

$

In Stock, only 1 left!

0

3

Cub Cadet 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$14.99

$

In Stock, only 3 left!

0

4

Cub Cadet 931-04187A

HANDLE PANEL ASSEMBLY

$66.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 731-05324

HANDLE PANEL LENS

Note: (Not Shown)

$13.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 777X41804

LABEL-LENS

Note: (Not Shown)

$8.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 684-04250

PIVOT ROD

$11.99

$

In Stock, Qty 8

0

6

Cub Cadet 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, Qty 11

0

7

Cub Cadet 710-04586

SCREW 1/4-20 x 1.625

$6.49

$

In Stock, only 2 left!

0

8

Cub Cadet 710-1233

SCREW #10-24 x 1.375

$4.49

$

In Stock, Qty 13

0

9

Cub Cadet 710-3069

SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 13

0

10

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04081A

HEX NUT W/PATCH

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 720-0274

GRIP

$10.99

$

In Stock, Qty 6

0

14

Cub Cadet 720-04039

SHIFT KNOB

$9.99

$

In Stock, only 4 left!

0

15

Cub Cadet 925-1629

LAMP-12 VOLT

$10.99

$

In Stock, Qty 14

0

16

Cub Cadet 731-04894D

LOCK PLATE

$4.99

$

In Stock, only 4 left!

0

17

Cub Cadet 731-04896B

CLUTCH LOCK CAM
(Superseded to 731-04896C)

$3.99

$

In Stock, Qty 12

0

18

Cub Cadet 732-0193

COMPRESSION SPRING

$4.49

$

In Stock, Qty 8

0

19

Cub Cadet 732-04219C

CLUTCH SPRING

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 732-04238B

TORSION SPRING

$4.99

$

In Stock, Qty 12

0

21

Cub Cadet 936-0267

FLAT WASHER .40X.88X.060
(Superseded to 736-0267)

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 738-04125

SHOULDER SCREW

$4.49

$

In Stock, Qty 18

0

23

Cub Cadet 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.49

$

In Stock, only 1 left!

0

24

Cub Cadet 946-04396A

SPEED SELECTOR CABLE (PLASTIC)

$19.99

$

In Stock, Qty 20+

0

25

Cub Cadet 790-00248E-0637

HANDLE SUPPORT BRACKET (POWDER BLACK)

$22.99

$

In Stock, only 2 left!

0

26

Cub Cadet 790-00311C-0637

SHIFT LEVER

$25.99

$

In Stock, only 1 left!

0
