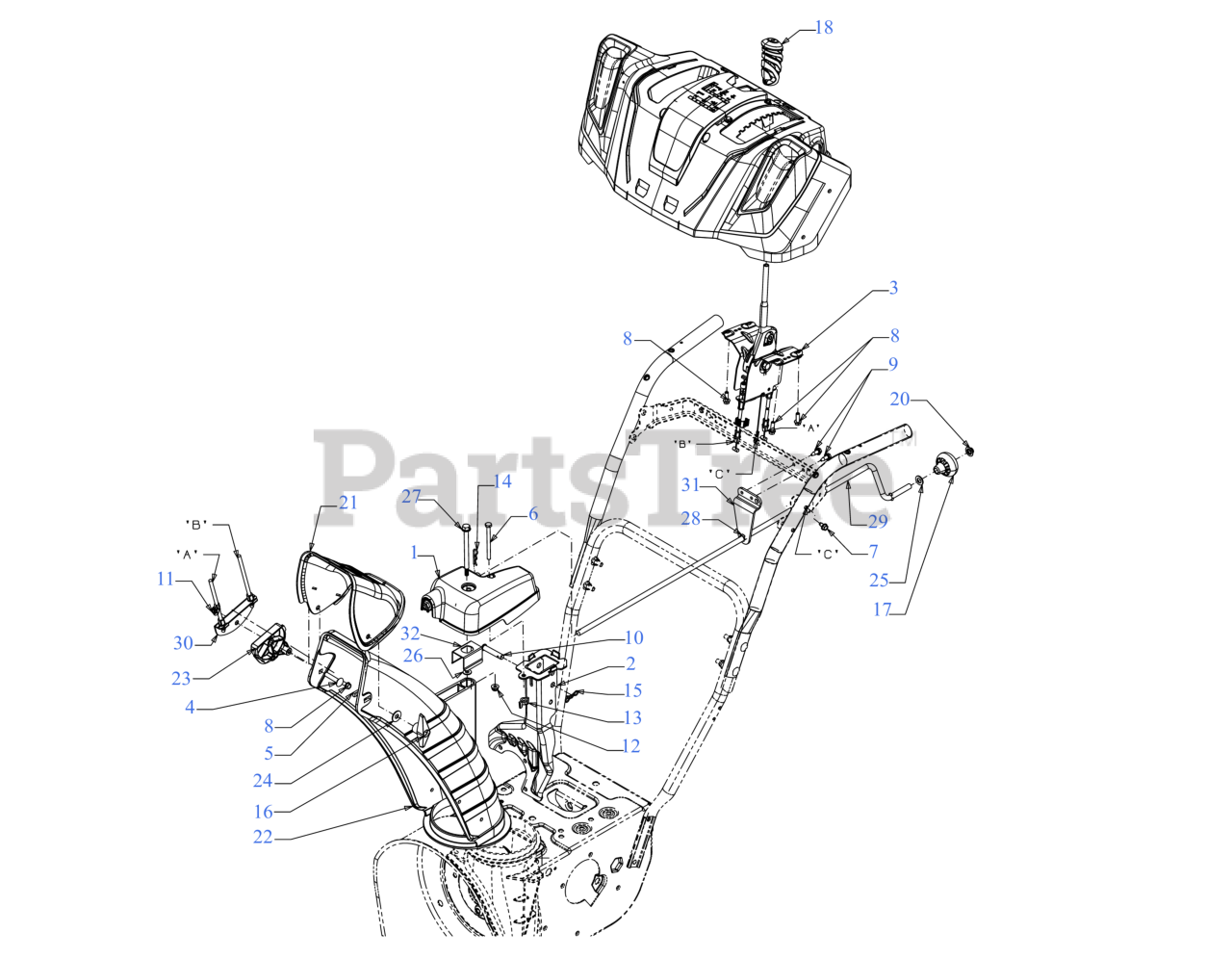

2X 24 (31AM5CVR710) - Cub Cadet 2X 24" Snow Thrower (2020) Chute Parts Diagram

2X 24" Snow Thrower

Chute Parts Diagram

  • Title

1

Cub Cadet 918-04933B

GEARBOX ASSEMBLY

Note: (See separate breakdown)

$98.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-04311B-0637

CHUTE SUPPORT BRACKET ASSEMBLY (POWDER BLACK)

$41.99

$

Usually ships in 3-6 days

0

3

CHUTE CONTROL

Note: (See separate breakdown)

$

$

Not available

4

Cub Cadet 710-0262

CARRIAGE BOLT 5/16-18 x 1.50

$4.49

$

In Stock, Qty 5

0

5

Cub Cadet 710-04071

CARRIAGE BOLT 5/16-18 x 1

$4.99

$

In Stock, only 2 left!

0

6

Cub Cadet 710-04370

SCREW 1/4-20 x 3.0 GR5

$4.49

$

In Stock, only 4 left!

0

7

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0895

SCREW 1/4-15 x .750

$6.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 711-04469A

CLEVIS PIN 3/8 x 1.87

$6.49

$

In Stock, Qty 12

0

11

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3087

WING NUT 1/4-20

$4.49

$

In Stock, Qty 11

0

14

Cub Cadet 914-0101

INTERNAL COTTER PIN-1/2 DIA
(Superseded to 714-0101)

$

$

Not available

15

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

16

Cub Cadet 720-0284

WING NUT KNOB

$7.49

$

In Stock, Qty 20+

0

17

Cub Cadet 720-04102

SHIFT KNOB

$7.49

$

In Stock, only 2 left!

0

18

Cub Cadet 720-05086

PTO HANDLE GRIP .355 ID

$13.99

$

In Stock, only 4 left!

0

20

Cub Cadet 926-0100

PUSH NUT
(Superseded to 726-0100)

$

$

Not available

21

Cub Cadet 731-04427A

UPPER REMOTE CHUTE WITH LABEL
(Superseded to 731-04427B)

$17.99

$

In Stock, Qty 6

0

22

Cub Cadet 731-06440A

LOWER CHUTE 5"

$55.99

$

In Stock, Qty 10

0

23

Cub Cadet 731-06451

CABLE CHUTE GUIDE

$5.49

$

In Stock, only 2 left!

0

24

Cub Cadet 936-0159

FLAT WASHER
(Superseded to 736-0159)

$

$

Not available

25

Cub Cadet 936-0185

FLAT WASHER
(Superseded to 736-0185)

$4.49

$

In Stock, only 4 left!

0

26

Cub Cadet 736-04446

FLAT WASHER

$4.99

$

In Stock, Qty 17

0

27

Cub Cadet 738-04367

SHOULDER SCREW

$5.49

$

In Stock, only 3 left!

0

28

Cub Cadet 941-0475

BUSHING .380 ID

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 747-05386A-0637

CHUTE CRANK (POWDER BLACK)

$33.99

$

In Stock, only 2 left!

0

30

Cub Cadet 784-5594A

CABLE BRACKET

Note: (Choose color when ordering)

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 790-00341

ROD SUPPORT BRACKET

Variations

Cub Cadet 790-00341-0637

Support Rod Bracket - POWDER BLACK (0637)

$17.99

$

In Stock, only 2 left!

0

$13.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 790-00503

CHUTE BRACKET

$6.99

$

In Stock, only 2 left!

0
