2X 24 (31AS6KXRA56) - Cub Cadet 2X 24" Snow Thrower (2024) Panel Parts Diagram

2X 24" Snow Thrower

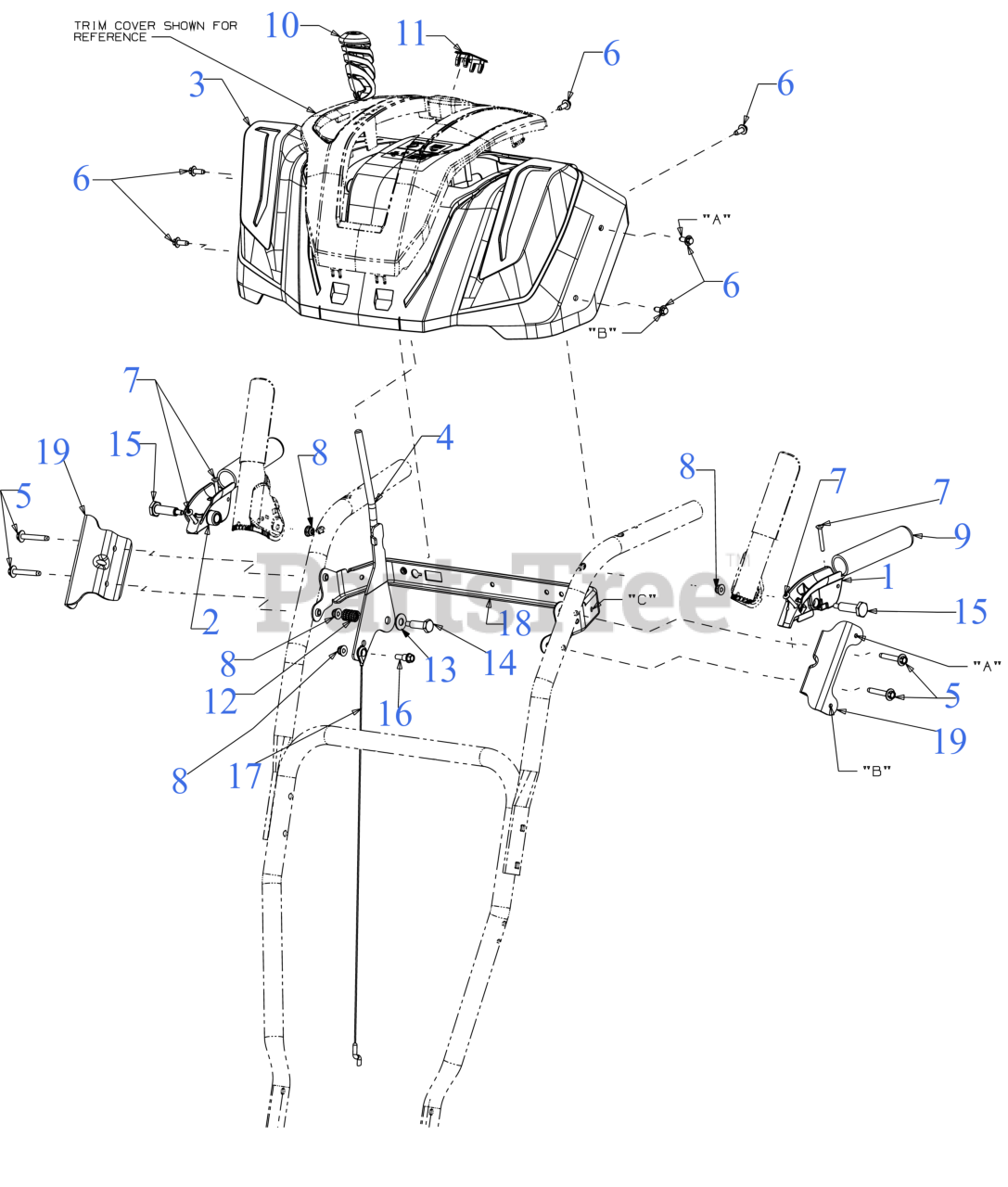

Panel Parts Diagram

  • Title

1

Cub Cadet 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$16.99

$

In Stock, only 2 left!

0

1

Cub Cadet 712-0161

HEX NUT

Note: (Not Shown)

$4.99

$

In Stock, Qty 16

0

2

Cub Cadet 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$16.99

$

In Stock, only 2 left!

0

2

Cub Cadet 712-0161

HEX NUT

Note: (Not Shown)

$4.99

$

In Stock, Qty 16

0

3

Cub Cadet 631P08311

HANDLE PANEL

$66.99

$

Usually ships in 0 days

0

4

Cub Cadet 984-05229

SPEED SHIFT CONTROL ASSEMBLY
(Superseded to 984-05229-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 984-05229-0637

SPEED SHIFT CONTROL (POWDER BLACK) - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04586

SCREW 1/4-20 x 1.625

$7.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 9

0

8

Cub Cadet 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 720-0274

GRIP

$12.99

$

In Stock, only 2 left!

0

10

Cub Cadet 720-05086

PTO HANDLE GRIP .355 ID

$13.99

$

In Stock, only 4 left!

0

11

Cub Cadet 731-04010

PANEL SWITCH PLUG

$21.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 732-04756

COMPRESSION SPRING

$3.99

$

In Stock, only 2 left!

0

13

Cub Cadet 736-0267

FLAT WASHER .38X.88

$4.99

$

In Stock, Qty 12

0

14

Cub Cadet 738-04125

SHOULDER SCREW

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 738-05149A

SHOULDER SCREW .342X.335X1/4-20

$6.99

$

In Stock, only 2 left!

0

17

Cub Cadet 746P06984

SELECTION CABLE

$5.99

$

In Stock, only 2 left!

0

18

Cub Cadet 790-00248E

HANDLE SUPPORT BRACKET
(Superseded to 790-00248E-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00248E-0637

Handle Support Bracket - POWDER BLACK (0637)

$25.99

$

In Stock, Qty 5

0

$25.99

$

In Stock, Qty 5

0

19

Cub Cadet 790-00846

HANDLE PANEL BRACKET
(Superseded to 790-00846-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00846-0637

HANDLE PANEL BRACKET (POWDER BLACK) - POWDER BLACK (0637)

$9.99

$

Usually ships in 3-6 days

0

$9.99

$

Usually ships in 3-6 days

0
