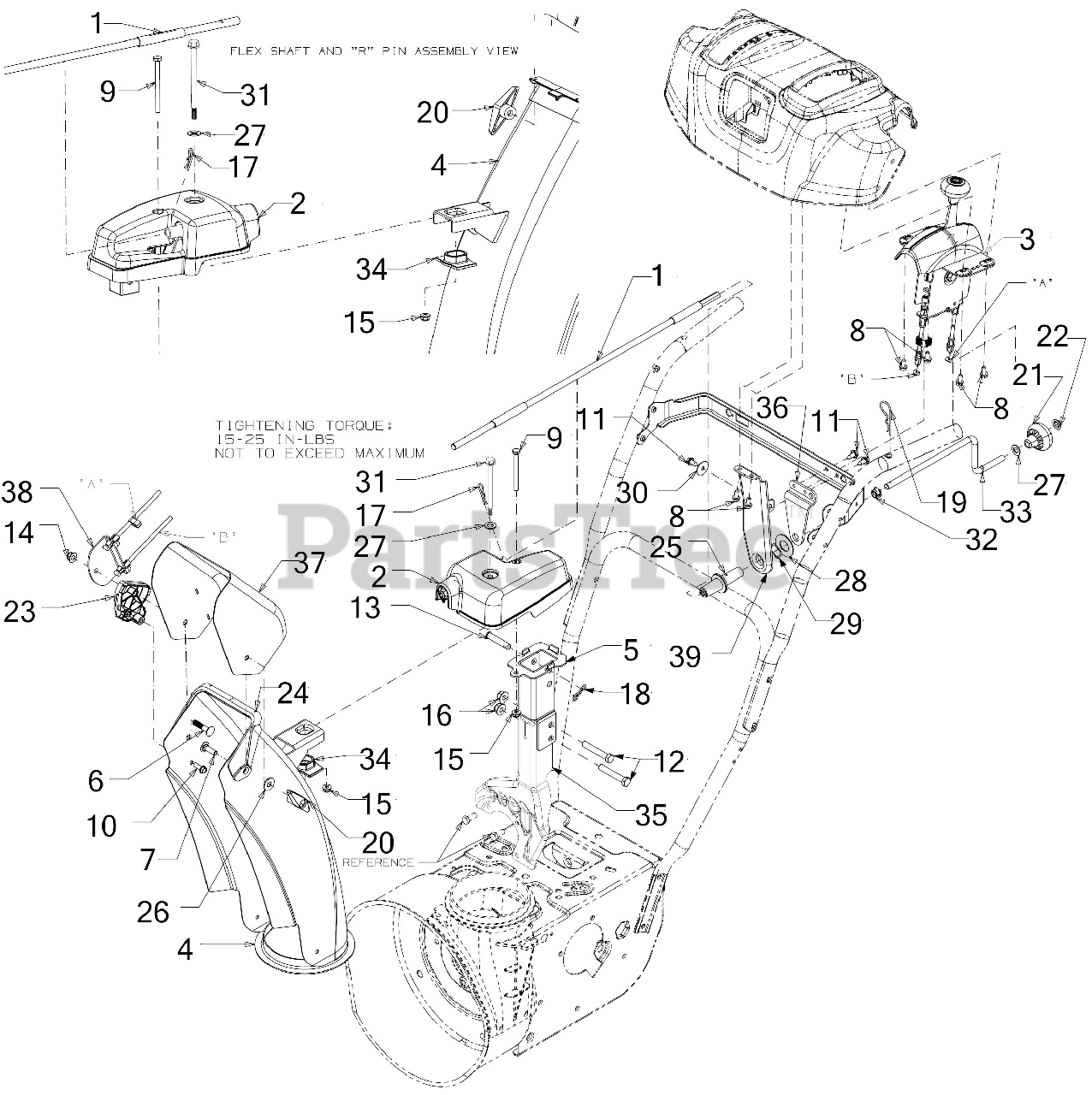

2X 26 HP (31AM5CSS710) - Cub Cadet 2X 26" Snow Thrower (2016) Chute & Controls Parts Diagram

2X 26" Snow Thrower

Chute & Controls Parts Diagram

  • Title

1

Cub Cadet 611-05044A

CHUTE CONTROL SHAFT
(Superseded to 911-05044B)

$138.99

$

In Stock, only 2 left!

0

2

Cub Cadet 918-04933B

WORM GEARBOX ASSEMBLY

$88.99

$

In Stock, only 1 left!

0

2

Cub Cadet 710-04373A

SCREW #12-16 .75

Note: (Not Shown)

$4.49

$

In Stock, Qty 15

0

2

Cub Cadet 711-05329A

WORM DRIVE SHAFT .625

Note: (Not Shown)

$20.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-04065

NUT

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 731-07529A

CHUTE GEARBOX COVER

Note: (Not Shown)

$17.99

$

In Stock, only 1 left!

0

2

Cub Cadet 732-04756

COMPRESSION SPRING

Note: (Not Shown)

$3.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 736-0290

FLAT WASHER

Note: (Not Shown)

$6.49

$

In Stock, Qty 20+

0

2

Cub Cadet 736-04337

SHIM WASHER .632X1.000X.010:HD

Note: (Not Shown)

$3.99

$

In Stock, Qty 15

0

2

Cub Cadet 736-3072

WASHER

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

ARCTIC GREASE (NOT SERVICEABLE)

Note: (Not Shown)

$

$

Not available

2

Cub Cadet 941-0225

FLANGE BEARING

Note: (Not Shown)

$6.99

$

In Stock, Qty 20+

0

2

Cub Cadet 741-04388A

HEX FLANGE BEARING

Note: (Not Shown)

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 790-00342C-0637

CHUTE ROTATION BRACKET

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 717-04667B

HELICAL GEAR-14T

Note: (Not Shown)

$9.99

$

In Stock, Qty 10

0

3

Cub Cadet 984-05044

2-WAY TALL CHUTE CONTROL ASSEMBLY

$98.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 712-04064

FLANGE LOCK NUT

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 720-04039

SHIFT KNOB

Note: (Not Shown)

$9.99

$

In Stock, only 4 left!

0

3

Cub Cadet 731-05307

2 WAY CONTROL COVER

Note: (Not Shown)

$10.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-07868

CABLE CLIP

Note: (Not Shown)

$3.49

$

In Stock, only 1 left!

0

3

Cub Cadet 731-1313C

CABLE GUIDE

Note: (Not Shown)

$11.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 738-04185

SHOULDER SCREW

Note: (Not Shown)

$7.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 946-05091

2-WAY CHUTE CONTROL CABLE

Note: (Not Shown)

$49.99

$

In Stock, only 3 left!

0

3

Cub Cadet 790-00210A-0637

2-WAY CONTROL LEVER

Note: (Not Shown)

$13.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 790-00200A-0637

2 WAY CONTROL BRACKET

Note: (Not Shown)

$17.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-05062-4021

LOWER CHUTE

$95.99

$

In Stock, only 2 left!

0

5

Cub Cadet 684-05109-4021

CHUTE EXTENSION MAST
(Superseded to 684-05109-0637)

$31.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0262

CARRIAGE BOLT 5/16-18 x 1.50

$3.99

$

In Stock, Qty 14

0

7

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-04187A

HEX SCREW 1/4-15 x .50

$6.49

$

In Stock, Qty 10

0

9

Cub Cadet 710-04370

SCREW 1/4-20 x 3.0 GR5

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet 710-0895

SCREW 1/4-15 x .750

$5.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-1652

SCREW 1/4-20X.625

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.49

$

In Stock, Qty 20+

0

13

Cub Cadet 711-04469A

CLEVIS PIN 3/8 x 1.87

$5.49

$

In Stock, Qty 8

0

14

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 914-0101

INTERNAL COTTER PIN
(Superseded to 714-0101)

$

$

Not available

18

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

19

Cub Cadet 714-3020

INTERNAL COTTER PIN

$3.99

$

In Stock, Qty 9

0

20

Cub Cadet 920-0284

WING NUT KNOB
(Superseded to 720-0284)

$6.49

$

In Stock, Qty 20+

0

20

Cub Cadet 912-0429

HEX NUT
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 720-04072A

STAR KNOB 5/16

$6.49

$

In Stock, Qty 20+

0

21

Cub Cadet 720-04102

SHIFT KNOB

$6.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 926-0100

PUSH NUT
(Superseded to 726-0100)

$

$

Not available

23

Cub Cadet 731-09535

CHUTE TILT GUIDE

$7.99

$

In Stock, Qty 8

0

24

Cub Cadet 731-09539A

UPPER CHUTE ADAPTER

$23.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-09643

CHUTE ROD COUPLER

$6.99

$

In Stock, only 3 left!

0

26

Cub Cadet 936-0159

FLAT WASHER
(Superseded to 736-0159)

$

$

Not available

27

Cub Cadet 936-0185

FLAT WASHER
(Superseded to 736-0185)

$3.49

$

In Stock, Qty 15

0

28

Cub Cadet 936-0316

FLAT WASHER
(Superseded to 736-0316)

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0621

WAVE WASHER .785X1.00X.012

$16.99

$

In Stock, only 1 left!

0

30

Cub Cadet 736-3092

FLAT WASHER

$3.99

$

In Stock, Qty 13

0

31

Cub Cadet 738-04367

SHOULDER SCREW

$4.99

$

In Stock, only 1 left!

0

32

Cub Cadet 941-0475

BUSHING .380 ID

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 747-06196-0637

CHUTE CRANK

$19.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 748-05057

HELICAL GEAR CHUTE ADAPTER

$10.99

$

In Stock, only 1 left!

0

35

Cub Cadet 790-00330A-4021

CHUTE SUPPORT BRACKET
(Superseded to 790-00330C-4021)

$30.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 790-00341-0637

ROD SUPPORT BRACKET

$15.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 790-00529-4021

UPPER CHUTE STEEL

$36.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 790-00565-0637

CABLE BRACKET GUIDE
(Superseded to 790-00565A-0637)

$13.99

$

In Stock, only 2 left!

0

39

Cub Cadet 790-00576-0637

CHUTE CONTROL BRACKET

$37.99

$

Usually ships in 3-6 days

0
