2X 28 (31AH5LVNB10) - Cub Cadet 2X 28" Snow Thrower (2024) Auger Housing Parts Diagram

2X 28" Snow Thrower

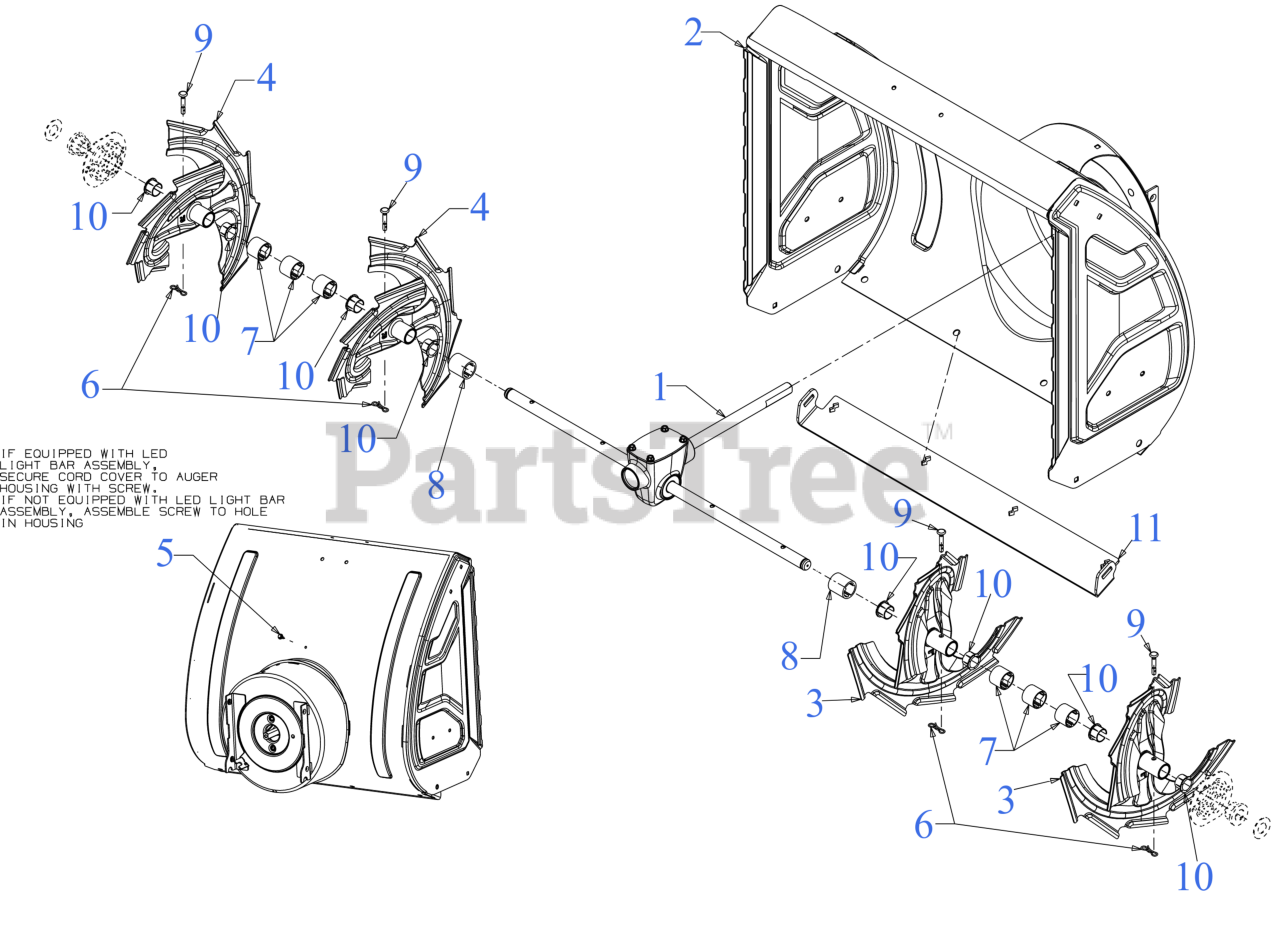

Auger Housing Parts Diagram

  • Title

1

Cub Cadet 918-07023

28" AUGER GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$343.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-05189A

28" AUGER HOUSING (HD/LED)

Note: *CHOOSE COLOR WHEN ORDERING*

$266.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-06760

10T AUGER SPIRAL (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$35.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-06761

10T AUGER SPIRAL (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$35.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

7

Cub Cadet 731-04870

SPACER 1.25OD x .75ID X1.00 LG

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 731-10286

SPACER 1.25OD x .75ID x 1.312 LG

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

9

Cub Cadet 490-241-C063

Cub Cadet SHEAR PINS (2X SNOW)

Note: Retail Packaged Part

$12.99

$

In Stock, Qty 8

0

9

Cub Cadet OEM-738-04124

SHEAR PINS QTY 4
(Superseded to 738-04124A)

Note: Retail Packaged Part

$1.99

$

In Stock, Qty 20+

0

10

Cub Cadet 741-0493C

FLANGE BUSHING

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 790-00549

SHAVE PLATE 27.50

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00549-4021

Shave Plate, 27.50 - CUB YELLOW 2 (4021)

$65.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00549-0606

PLATE-SHAVE 27.50 - MAJESTIC ORANGE (0606)

$67.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00549-0717

PLATE-SHAVE 27.50 - SILVER MIST (0717)

$67.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0
