2X 30 EFI (31AH5GVO710) - Cub Cadet 2X 30" Snow Thrower (2024) Auger Housing Parts Diagram

2X 30" Snow Thrower

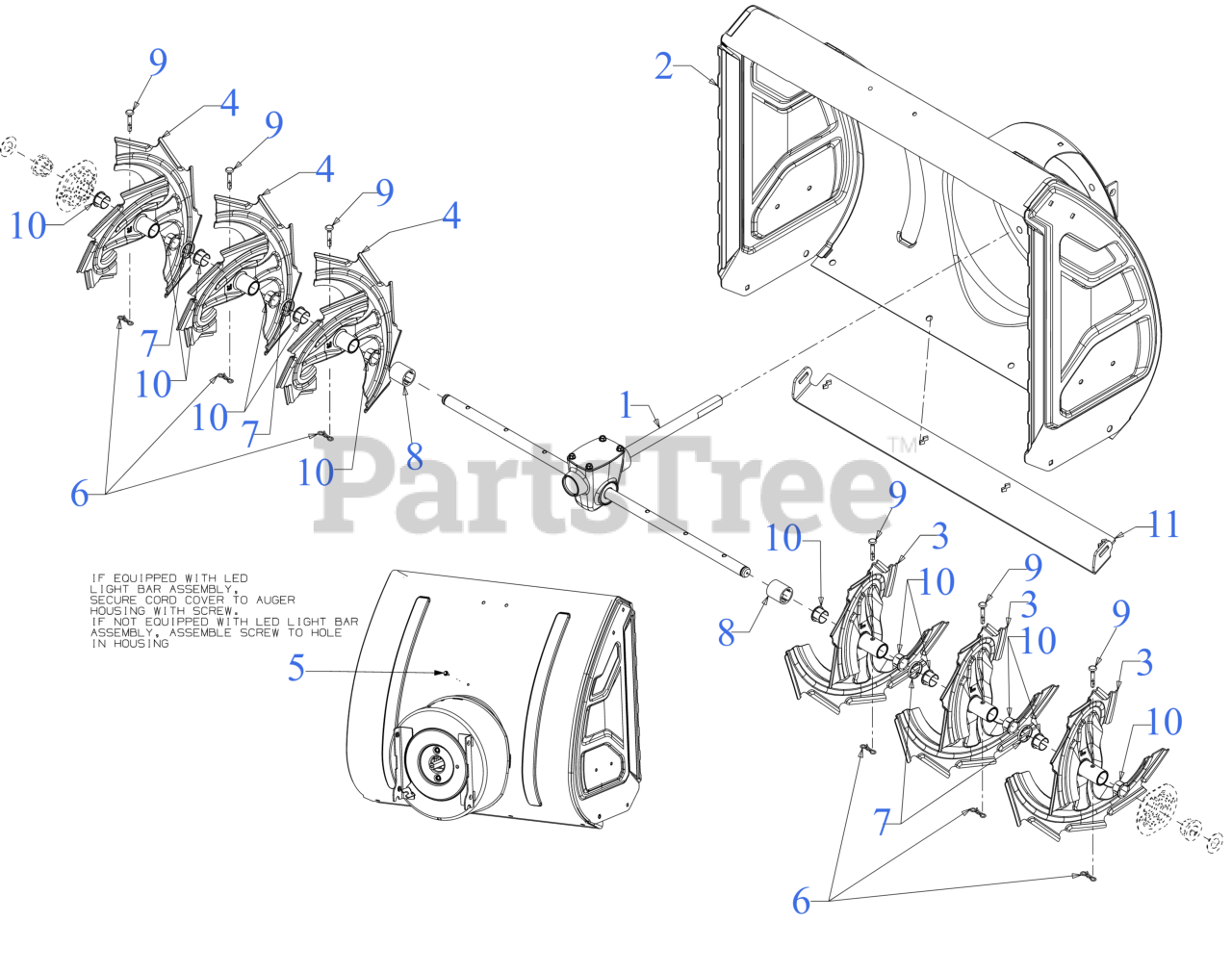

Auger Housing Parts Diagram

  • Title

1

Cub Cadet 918-07020

30" AUGER GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$362.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-05190A

30" AUGER HOUSING ASSEMBLY HD W/LED

Note: *CHOOSE COLOR WHEN ORDERING*

$296.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-06760

10T AUGER SPIRAL (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$35.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-06761

10T AUGER SPIRAL (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$35.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

7

Cub Cadet 731-04871

SPCR 1.25 OD x 75IDX2.00LG

$7.49

$

In Stock, Qty 20+

0

8

Cub Cadet 731-10286

SPACER 1.25OD x .75ID x 1.312 LG

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

10

Cub Cadet 741-0493C

FLANGE BUSHING

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 790-00550

29.50" SHAVE PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00550-0606

PLATE-SHAVE 29.50 - MAJESTIC ORANGE (0606)

$70.99

$

In Stock, only 1 left!

0

Cub Cadet 790-00550-4021

Shave Plate, 29.50 - CUB YELLOW 2 (4021)

$70.99

$

In Stock, only 2 left!

0

Cub Cadet 790-00550-0691

PLATE-SHAVE 29.50 - BLACK JACK (0691)

$70.99

$

In Stock, only 2 left!

0

Cub Cadet 790-00550-0717

PLATE-SHAVE 29.50 - SILVER MIST (0717)

$70.99

$

In Stock, only 2 left!

0

Cub Cadet 790-00550-4033

PLATE-SHAVE 29.50 - FLINT MICA (4033)

$70.99

$

In Stock, only 2 left!

0

$65.99

$

Usually ships in 3-6 days

0
