2X 30 MAX (31AH8JVSB10) - Cub Cadet 2X 30" Snow Thrower (2023) Engine Drive Parts Diagram

2X 30" Snow Thrower

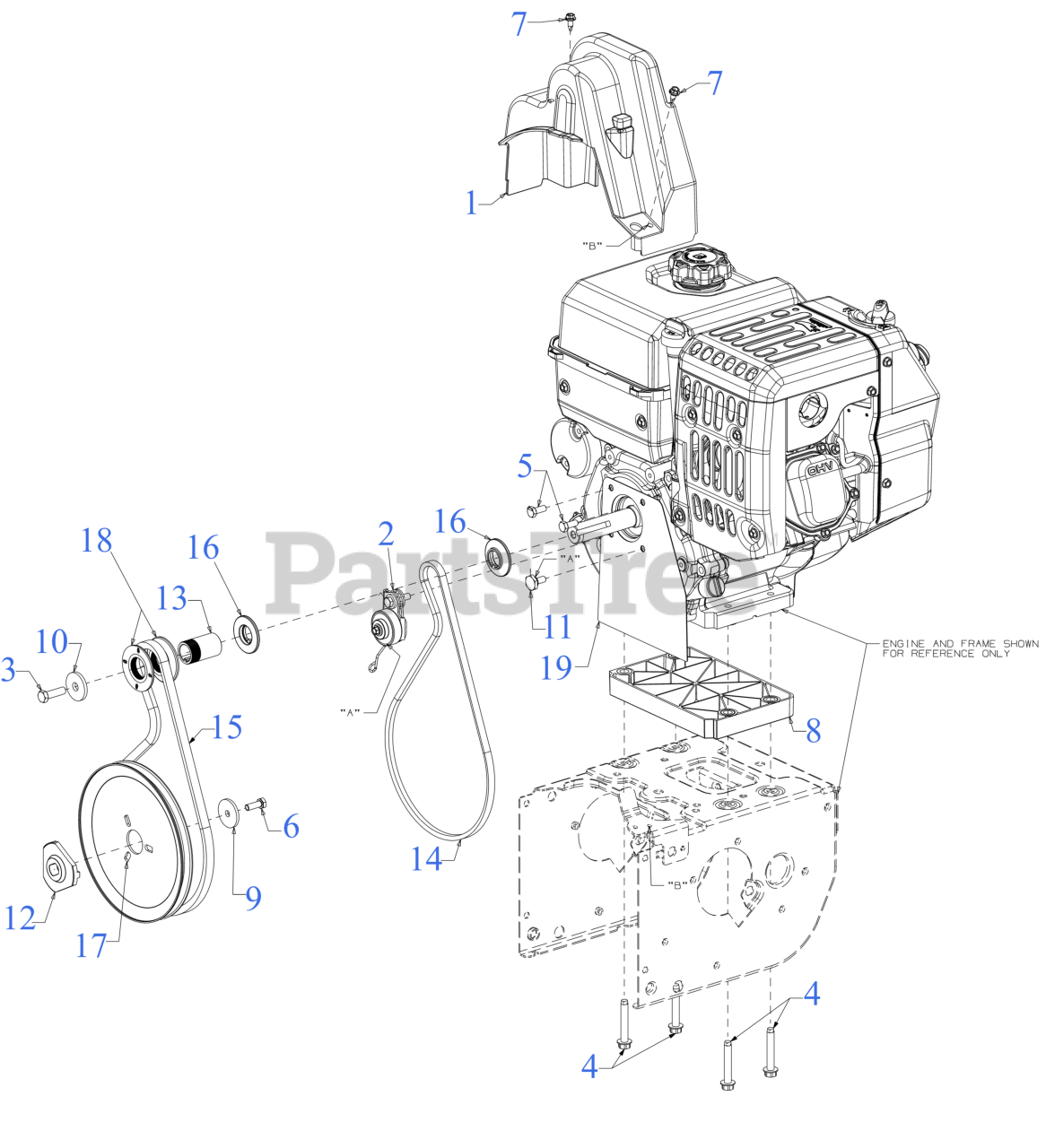

Engine Drive Parts Diagram

  • Title

1

Cub Cadet 631-05394

BELT COVER ASSEMBLY

$37.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-04261

HEX SCREW #12-16 x .50

$6.49

$

In Stock, only 4 left!

0

2

IDLER ASSEMBLY

Note: (See Separate Breakdown)

$

$

Not available

3

Cub Cadet 710-0191

SCREW 3/8-24X1.25

$4.99

$

In Stock, Qty 8

0

4

Cub Cadet 710-05446

SCREW 3/8-16 x 2.250

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0627

SCREW 5/16-24 x .750 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1245B

SCREW 5/16-24 x .875 GR5

$8.49

$

In Stock, only 4 left!

0

7

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 731-11797

ENGINE MOUNTING SPACER

$31.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 736-0505

FLAT WASHER

$6.49

$

In Stock, Qty 5

0

10

Cub Cadet 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$9.99

$

In Stock, Qty 17

0

11

Cub Cadet 738-04439

SHOULDER SCREW

$3.99

$

In Stock, Qty 7

0

12

Cub Cadet 748-04053A

ADAPTER PULLEY .75 DIA W/DD

$22.99

$

In Stock, only 1 left!

0

13

Cub Cadet 750-04303

PULLEY SPACER

$17.99

$

In Stock, only 1 left!

0

14

Cub Cadet 954-05143

DRIVE BELT 3L x 36.90

$27.99

$

In Stock, only 3 left!

0

15

Cub Cadet 754P06495

V-BELT .500 x 37.835

$25.99

$

In Stock, only 1 left!

0

16

Cub Cadet 756-04252

HALF PULLEY-3/8 V x 1.7160

$6.49

$

In Stock, only 3 left!

0

17

Cub Cadet 756-05219

AUGER PULLEY 8.5 OD

$55.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 756-06383

HALF PULLEY A2.43 x 1.140 SPLINE

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 790-00784

ENGINE PLATE (FRONT)

$10.99

$

Usually ships in 3-6 days

0
