3-2651 - Toro 22" Walk-Behind Mower (1970)

22" Walk-Behind Mower

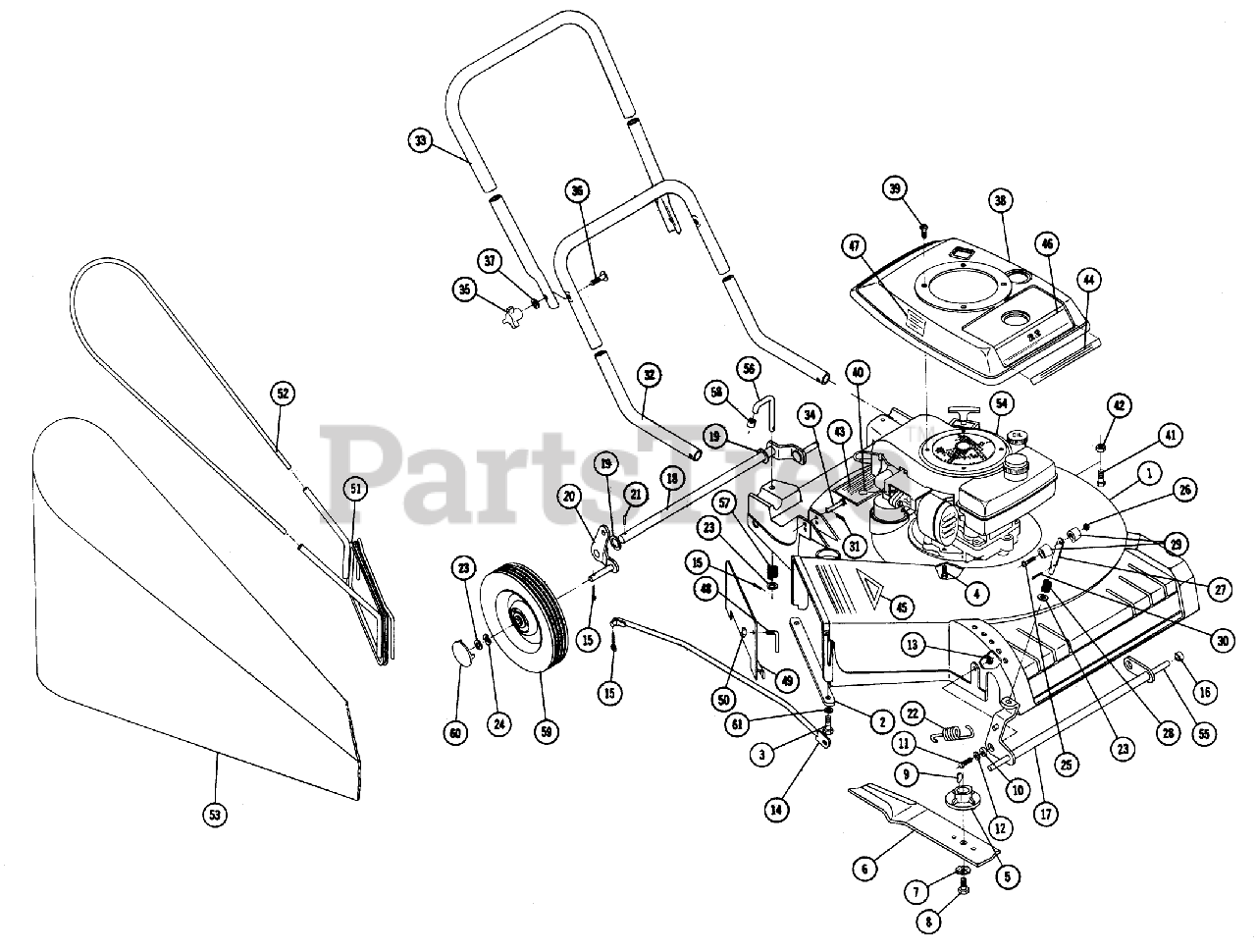

3-2651 - Toro 22" Walk-Behind Mower (1970) > Parts Diagrams (1) > PARTS LIST FOR MODELS 3-2641 AND 3-2651

  • Title
8580

1

Deck

Part# 8580

OEM Warranty Repair Part for Toro

Currently unavailable

8581

2

Toe Guard

Part# 8581

OEM Warranty Repair Part for Toro

Currently unavailable

926695-4

3

Bolt 5/16-18 x 3/4 Self Tap

Part# 926695-4

OEM Warranty Repair Part for Toro

Currently unavailable

911301-4

4

Screw Hex 5/16-18 x 1 Sems

Part# 911301-4

OEM Warranty Repair Part for Toro

Currently unavailable

MW-7726

5

Drive Blade

Part# MW-7726

OEM Warranty Repair Part for Toro

Currently unavailable

8551

6

22" BLADE

Part# 8551

OEM Warranty Repair Part for Toro

Not available

1336

7

WASHER

Part# 1336

OEM Warranty Repair Part for Toro

Not available

908184-5

8

Bolt 3/8-24 x 1 1/4 Nylok

Part# 908184-5

OEM Warranty Repair Part for Toro

Currently unavailable

937155

9

Key Hi-Pro

Part# 937155 (Superseded to 3257-3)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.92

9101

10

Spacer

Part# 9101

OEM Warranty Repair Part for Toro

Currently unavailable

908019-4

11

Bolt 5/16-18 x 1

Part# 908019-4

OEM Warranty Repair Part for Toro

Currently unavailable

920038-4

12

Washer

Part# 920038-4

OEM Warranty Repair Part for Toro

Currently unavailable

915112-6

13

Nut-Nylok

Part# 915112-6

OEM Warranty Repair Part for Toro

Currently unavailable

8591

14

Rod-Wheel

Part# 8591

OEM Warranty Repair Part for Toro

Currently unavailable

932008-4

15

Hairpin

Part# 932008-4

OEM Warranty Repair Part for Toro

Currently unavailable

6309

16

Spacer

Part# 6309

OEM Warranty Repair Part for Toro

Not available

8592

17

Height Adjustment Belcrank

Part# 8592

OEM Warranty Repair Part for Toro

Currently unavailable

8595

18

Axle-Rear

Part# 8595

OEM Warranty Repair Part for Toro

Currently unavailable

920013-4

19

Washer, 5/8

Part# 920013-4

OEM Warranty Repair Part for Toro

Currently unavailable

8598

20

Belcrank Rear

Part# 8598

OEM Warranty Repair Part for Toro

Currently unavailable

933186

21

ROLLPIN 3/16 X 7/8

Part# 933186

OEM Warranty Repair Part for Toro

Not available

8594

22

SPRING

Part# 8594

OEM Warranty Repair Part for Toro

Not available

920009-4

23

Washer

Part# 920009-4

OEM Warranty Repair Part for Toro

Currently unavailable

MW-4405

24

Washer

Part# MW-4405

OEM Warranty Repair Part for Toro

Currently unavailable

911743-4

25

Bolt #10-24 x 3/4 Pan Head

Part# 911743-4

OEM Warranty Repair Part for Toro

Currently unavailable

915964-4

26

#10-24 Kep-Nut

Part# 915964-4

OEM Warranty Repair Part for Toro

Currently unavailable

8601

27

Plunger

Part# 8601

OEM Warranty Repair Part for Toro

Currently unavailable

8602

28

Spring

Part# 8602

OEM Warranty Repair Part for Toro

Currently unavailable

8982

29

Knob

Part# 8982

OEM Warranty Repair Part for Toro

Currently unavailable

934786-4

30

Cotter Pin 1/8 x 3/4

Part# 934786-4

OEM Warranty Repair Part for Toro

Currently unavailable

933505-4

31

Hairpin

Part# 933505-4

OEM Warranty Repair Part for Toro

Currently unavailable

8608

32

Handle-Lower

Part# 8608

OEM Warranty Repair Part for Toro

Not available

8609

33

Handle-Upper

Part# 8609

OEM Warranty Repair Part for Toro

Currently unavailable

5523

34

Pin-Clevis

Part# 5523

OEM Warranty Repair Part for Toro

Currently unavailable

8610

35

Knob

Part# 8610

OEM Warranty Repair Part for Toro

Not available

8684

36

Bolt 5/16-18 x 1 3/4 Curved Head

Part# 8684

OEM Warranty Repair Part for Toro

Currently unavailable

920155-4

37

Lockwasher 5/16 Int. Tooth

Part# 920155-4

OEM Warranty Repair Part for Toro

Currently unavailable

7657

38

Shroud-Engine

Part# 7657

OEM Warranty Repair Part for Toro

Currently unavailable

911793-4

39

Screw 1/4-28 x 1/2 Pan Head

Part# 911793-4

OEM Warranty Repair Part for Toro

Currently unavailable

9752

40

Cap

Part# 9752

OEM Warranty Repair Part for Toro

Currently unavailable

911781-4

41

Bolt 1/4-20 x 1/2

Part# 911781-4

OEM Warranty Repair Part for Toro

Currently unavailable

915661-4

42

Nut, 1/4-20

Part# 915661-4

OEM Warranty Repair Part for Toro

Currently unavailable

8619

43

NUT, CONDUIT, 1/2 INCH

Part# 8619

OEM Warranty Repair Part for Toro

Currently unavailable

8620

44

Decal-Wheel Horse

Part# 8620 (Superseded to 83-3410)

OEM Warranty Repair Part for Toro

Not available

5699

45

Decal-ASA Triangle

Part# 5699

OEM Warranty Repair Part for Toro

Currently unavailable

8875

46

Decal-22"

Part# 8875

OEM Warranty Repair Part for Toro

Currently unavailable

9936

47

Decal-Throttle Control

Part# 9936

OEM Warranty Repair Part for Toro

Currently unavailable

8624

48

Stud-Leaf Mulcher

Part# 8624

OEM Warranty Repair Part for Toro

Currently unavailable

8625

49

Plate

Part# 8625

OEM Warranty Repair Part for Toro

Currently unavailable

915584-4

50

Nut Wing 1/4-20

Part# 915584-4

OEM Warranty Repair Part for Toro

Currently unavailable

9183

51

Frame

Part# 9183

OEM Warranty Repair Part for Toro

Not available

8989

52

Hoop

Part# 8989

OEM Warranty Repair Part for Toro

Not available

8983

53

Bag

Part# 8983

OEM Warranty Repair Part for Toro

Not available

8582

54

Engine

Part# 8582

OEM Warranty Repair Part for Toro

Currently unavailable

8589

55

Axle-Front

Part# 8589

OEM Warranty Repair Part for Toro

Currently unavailable

8615

56

Hook

Part# 8615

OEM Warranty Repair Part for Toro

Currently unavailable

8616

57

SPRING

Part# 8616

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.42

3680

58

Cap

Part# 3680 (Superseded to 105316)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.85

7159

59

Wheel & Tire Assembly

Part# 7159

OEM Warranty Repair Part for Toro

Not available

6312

60

Cap-Hub

Part# 6312

OEM Warranty Repair Part for Toro

Currently unavailable

920123-4

61

Lockwasher, 5/16

Part# 920123-4

OEM Warranty Repair Part for Toro

Currently unavailable
