30 HC-C (59AD202-150) - Cub Cadet Single Sided Hedge Clipper Clipper Parts Diagram

Single Sided Hedge Clipper

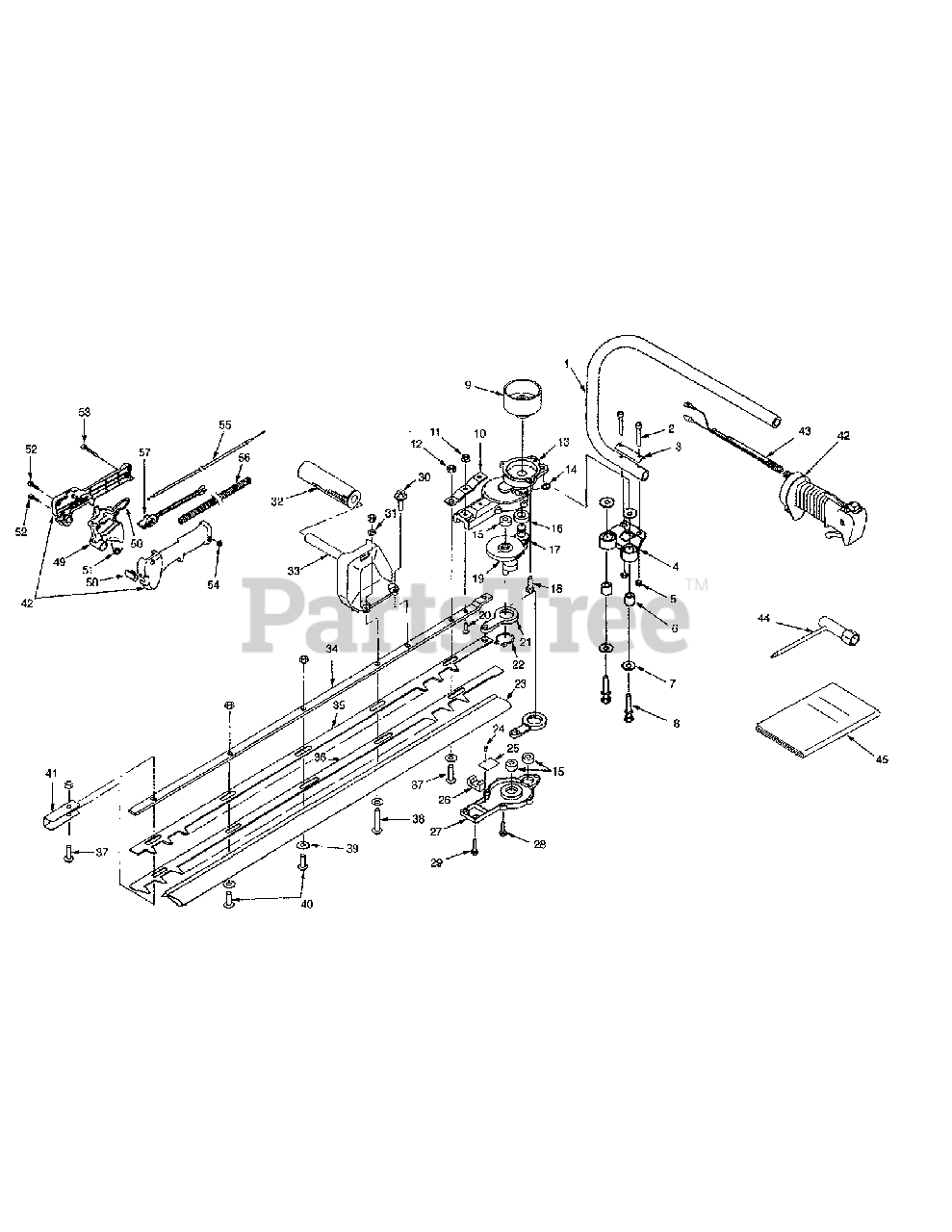

Clipper Parts Diagram

  • Title

1

Cub Cadet IM-728510030

Handle

$

$

Not available

2

Cub Cadet IM-010709011

Bolt, M5x30

$

$

Not available

3

Cub Cadet IM-728610010

Holder, Handle

$

$

Not available

4

Cub Cadet IM-728610020

Holder, Handle

$

$

Not available

5

Cub Cadet IM-020100005

Nut

$

$

Not available

6

Cub Cadet IM-728970110

Coller

$

$

Not available

7

Cub Cadet IM-026109009

Washer

$

$

Not available

8

Cub Cadet IM-720973184

Bolt, M6x26

$

$

Not available

9

Cub Cadet IM-728400010

Drum, Clutch

$

$

Not available

10

Cub Cadet IM-728640010

Plate

$

$

Not available

11

Cub Cadet IM-023100005

Nut

$

$

Not available

12

Cub Cadet IM-728970020

Nut

$

$

Not available

13

Cub Cadet IM-728210030

Case, Gear

$

$

Not available

14

Cub Cadet IM-728970100

Nipples, Grease

$

$

Not available

15

Cub Cadet IM-728970010

Bearing, Ball, 6082

$

$

Not available

16

Cub Cadet IM-040146001

Bearing, Ball, 6001 LL

$

$

Not available

17

Cub Cadet IM-728310010

Gear, Pinion

$

$

Not available

18

Cub Cadet IM-720973178

Bolt, M6x14

$

$

Not available

19

Cub Cadet IM-728320010

Gear, Crank

$

$

Not available

20

Cub Cadet IM-015300520

Screw, M5x20

$

$

Not available

21

Cub Cadet IM-728350010

Rod

$

$

Not available

22

Cub Cadet IM-036100026

Snap Ring, S-26

Note: NLA

$

$

Not available

23

Cub Cadet IM-728720020

Cover, Balde

$

$

Not available

24

Cub Cadet IM-015100305

Screw, M3x5

$

$

Not available

25

Cub Cadet IM-728640020

Plate

$

$

Not available

26

Cub Cadet IM-198133100

Felt

$

$

Not available

27

Cub Cadet IM-728210020

Case, Gear

$

$

Not available

28

Cub Cadet IM-010709008

Bolt, M5x16

$3.49

$

In Stock, only 2 left!

0

29

Cub Cadet IM-010709009

Bolt, M5x20

$

$

Not available

30

Cub Cadet IM-728970120

Bolt, M6x18

$

$

Not available

31

Cub Cadet IM-728970130

Washer

$

$

Not available

32

Cub Cadet IM-728970140

Grip

$

$

Not available

33

Cub Cadet IM-728500020

Handle

$

$

Not available

34

Cub Cadet IM-728640040

Plate

$

$

Not available

35

Cub Cadet IM-728700030

Blade

$

$

Not available

36

Cub Cadet IM-728700040

Blade

$

$

Not available

37

Cub Cadet IM-728970050

Screw

$

$

Not available

38

Cub Cadet IM-728970150

Screw

$

$

Not available

39

Cub Cadet IM-728970030

Washer

$

$

Not available

40

Cub Cadet IM-728970040

Screw

$7.99

$

Usually ships in 3-6 days

0

41

Cub Cadet IM-728640050

Plate

$

$

Not available

42

Cub Cadet IM-125034180

Lever Assembly, Throttle

$

$

Not available

43

Cub Cadet IM-125504890

Wire Complete, Throttle

$

$

Not available

44

Cub Cadet IM-720983371

Wrench, Spanner Box 19

$

$

Not available

45

Cub Cadet IM-100814830

Manual, Operator's

Note: NLA

$

$

Currently unavailable

49

Cub Cadet IM-125323200

Lever

Note: NLA

$

$

Not available

50

Cub Cadet IM-125323210

Stop Lever

$

$

Not available

51

Cub Cadet IM-198213420

Spring

$

$

Not available

52

Cub Cadet IM-185843142

Screw, 4x20

$

$

Not available

53

Cub Cadet IM-185843143

Screw, M5x30

$

$

Not available

54

Cub Cadet IM-185843144

Nut, M5

$

$

Not available

55

Cub Cadet IM-125505260

Wire Compl, Throttle

$

$

Not available

55

Cub Cadet IM-125505260

Wire Compl, Throttle

$

$

Not available

56

Cub Cadet IM-184843145

Hose

Note: NLA

$

$

Currently unavailable

57

Cub Cadet IM-185203310

Stop, Switch

$

$

Not available

58

Cub Cadet IM-185843146

Plug

$

$

Not available
