300 (212-300-100) - Cub Cadet 26" Front-Tine Tiller (1982) Engine, Tine Shield and Tine Assembly Parts Diagram

26" Front-Tine Tiller

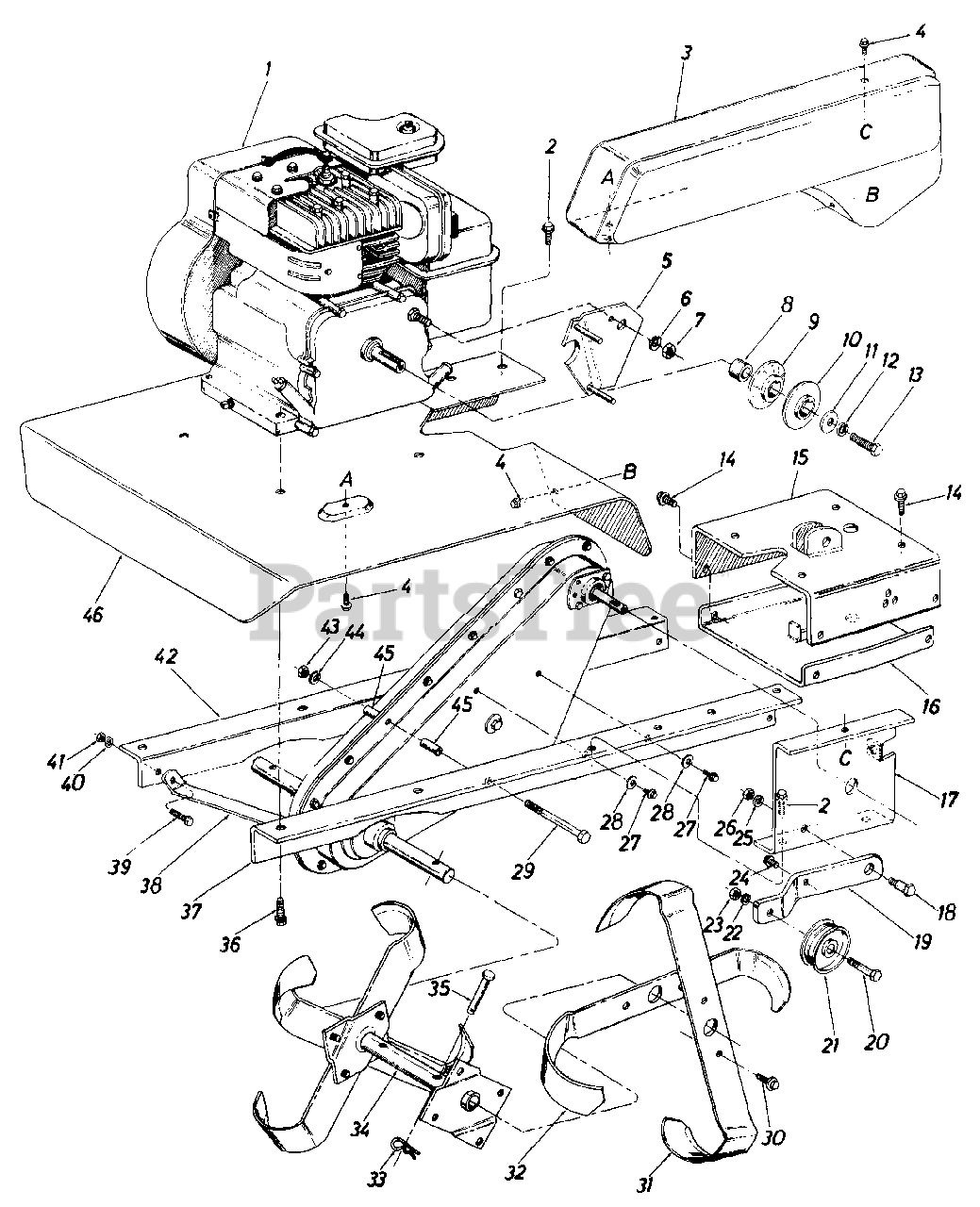

Engine, Tine Shield and Tine Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Cub Cadet 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$

$

Not available

3

Cub Cadet 04958

Belt Cover

Note: Color Code - 499

$

$

Not available

4

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 04935

Belt Keeper Brkt. Ass'y.

$

$

Currently unavailable

6

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

7

Cub Cadet 710-0751

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 750-0142

Spacer
(Superseded to 950-0142)

$

$

Not available

9

Cub Cadet 748-0282

Pulley Half

$

$

Not available

10

Cub Cadet 748-0282

Pulley Half

$

$

Not available

11

Cub Cadet 736-0258

Fl-Wash. 3/8" I.D. x 1.25" O.D. x .100

$4.99

$

In Stock, Qty 10

0

12

Cub Cadet 736-0169

L-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 11

0

13

Cub Cadet 710-0152

Hex Scr. 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.99

$

In Stock, Qty 14

0

14

Cub Cadet 710-0649

Hex Wash. Hd. Self-Tap Scr. 3/8-24 x 7/8" Lg.

$

$

Not available

15

Cub Cadet 04950

Handle Mounting Brkt. Ass'y.

$

$

Not available

16

Cub Cadet 04943

U-Channel Brkt. Ass'y.

$

$

Currently unavailable

17

Cub Cadet 04934

Idler Mounting Brkt.

$

$

Not available

18

Cub Cadet 738-0322

Shld. Bolt
(Superseded to 738-0322A)

$7.49

$

In Stock, only 1 left!

0

19

Cub Cadet 04929

Idler Bracket

$

$

Currently unavailable

20

Cub Cadet 710-0344

Hex Scr. 3/8-16 x 1.50" Lg.

$6.49

$

In Stock, only 3 left!

0

21

Cub Cadet 756-0137

Idler Pulley

$

$

Not available

22

Cub Cadet 736-0169

L-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 11

0

23

Cub Cadet 712-0342

Hex Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 12

0

24

Cub Cadet 710-0601

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0169

L-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 11

0

26

Cub Cadet 712-0342

Hex Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 12

0

27

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0270

Belleville Wash. .26 I.D. x .7 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0176

Hex Scr. 5/16-18 x 2.75" Lg.

$4.99

$

In Stock, only 2 left!

0

30

Cub Cadet 710-0600

Hex Wash. Self-Tap Scr. 5/16-24 x .50" Lg.

$

$

Not available

31

Cub Cadet 742-0209

Tine Blade - L.H.

$

$

Not available

32

Cub Cadet 742-0210

Tine Blade - R.H.

$

$

Not available

33

Cub Cadet 714-0149

Hairpin Cotter
(Superseded to 914-0149B)

$

$

Not available

34

Cub Cadet 04931

Tine Adapter Ass'y.

$

$

Not available

35

Cub Cadet 711-0415

Clevis Pin

$4.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 710-0502

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, Qty 8

0

37

Cub Cadet 04949

Frame Rail - L.H.

Note: Color Code - 499

$

$

Not available

38

Cub Cadet 04933

Front Brace Brkt.

$

$

Currently unavailable

39

Cub Cadet 710-0118

Hex Scr. 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

42

Cub Cadet 04948

Frame Rail - R.H.

Note: Color Code - 499

$

$

Not available

43

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

44

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

Cub Cadet 750-0470

Spacer

$7.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 04941

Tine Shield

Note: Color Code - 499

$

$

Not available

Cub Cadet 04930

Tine Ass'y. - Comp.

$

$

Currently unavailable
