300 - Shindaiwa Chainsaw Clutch, Oil Pump Parts Diagram

Chainsaw

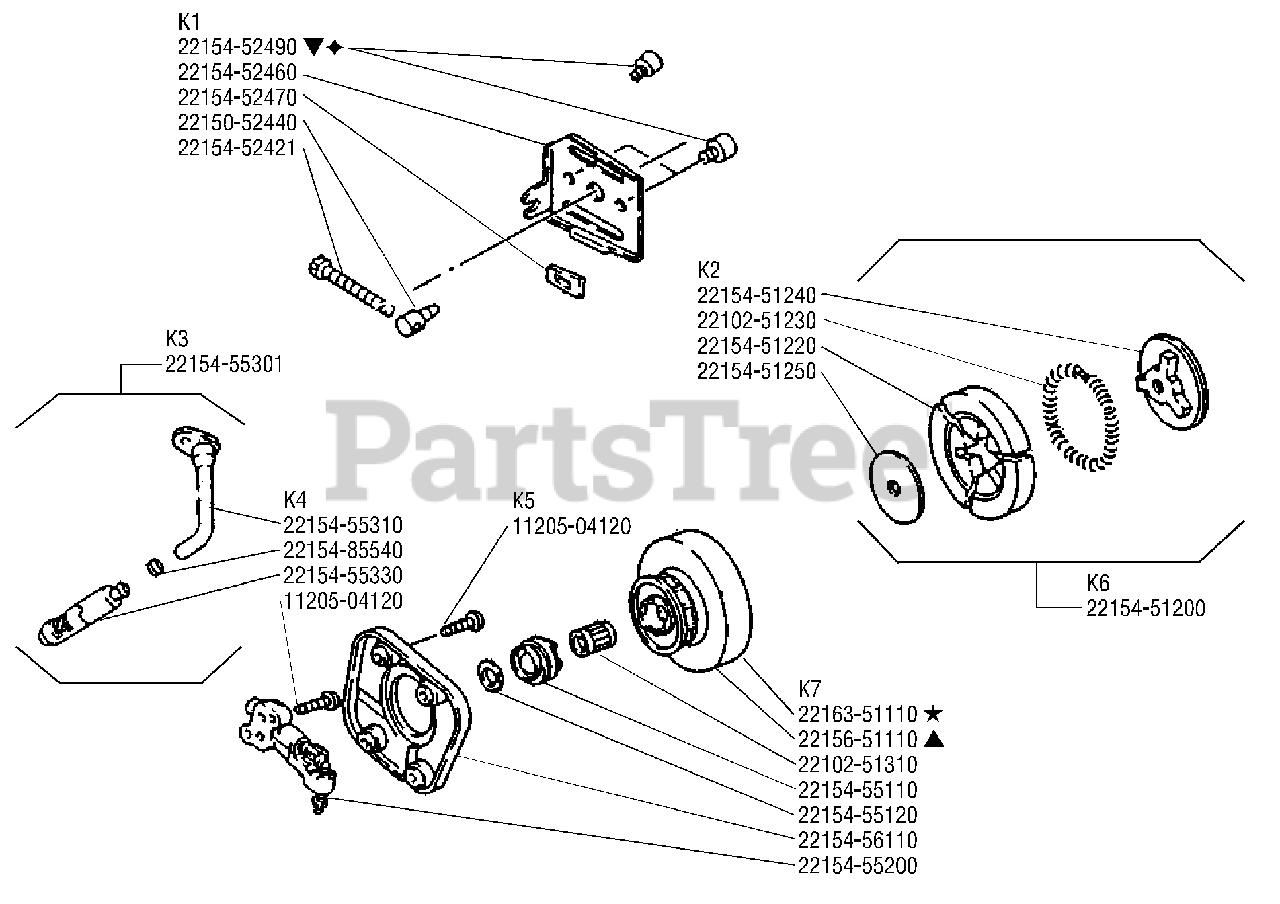

Clutch, Oil Pump Parts Diagram

  • Title

22154-52490

Echo 22154-52490

BAR PIN
(Superseded to V203001260)

Note: Models (1) 300, (2) 300S; PR 84

$1.99

$

In Stock, only 2 left!

0

22154-52460

Echo 22154-52460

GUARD, MOUNT
(Superseded to C305000140)

$4.49

$

Usually ships in 2-4 days

0

22154-52470

Echo 22154-52470

GUIDE, CHAIN
(Superseded to C301000000)

$1.49

$

Usually ships in 2-4 days

0

22150-52440

Echo 22150-52440

TENSIONER, CHAIN
(Superseded to C309000110)

$2.99

$

In Stock, Qty 8

0

22154-52421

Echo 22154-52421

SCREW, ADJUST
(Superseded to V253000590)

$1.99

$

In Stock, only 4 left!

0

22154-51240

Echo 22154-51240

HUB, CLUTCH - OUTER
(Superseded to A552000150)

$8.49

$

Usually ships in 2-4 days

0

22102-51230

Echo 22102-51230

SPRING, CLUTCH
(Superseded to V451000890)

$4.99

$

Usually ships in 2-4 days

0

22154-51220

Echo 22154-51220

SHOE, CLUTCH
(Superseded to A555000160)

$5.99

$

Usually ships in 2-4 days

0

22154-55301

Echo 22154-55301

OIL FILTER ASSY
(Superseded to C021000000)

$12.99

$

Usually ships in 2-4 days

0

22154-51250

Echo 22154-51250

HUB, CLUTCH - INNER
(Superseded to A552000160)

$7.49

$

Usually ships in 2-4 days

0

22154-55310

Echo 22154-55310

PIPE - OIL
(Superseded to V470001280)

$6.49

$

In Stock, only 1 left!

0

11205-04120

Echo 11205-04120

SCREW - 4X12
(Superseded to 9157304012)

$1.49

$

Usually ships in 2-4 days

0

22154-85540

Echo 22154-85540

CLIP
(Superseded to V490000720)

$6.99

$

In Stock, Qty 8

0

22154-55330

Echo 22154-55330

FILTER, OIL

$5.99

$

Usually ships in 2-4 days

0

11205-04120

Echo 11205-04120

SCREW - 4X12
(Superseded to 9157304012)

$1.49

$

Usually ships in 2-4 days

0

22154-51200

Echo 22154-51200

CLUTCH ASSY
(Superseded to A056000550)

$30.99

$

In Stock, only 1 left!

0

22163-51110

Echo 22163-51110

DRUM, CLUTCH
(Superseded to A556000970)

Note: 3/8" Spur Standard

$58.99

$

In Stock, only 1 left!

0

22156-51110

Echo 22156-51110

DRUM, CLUTCH
(Superseded to A556000980)

Note: Models (1) 300, (2) 300S

$60.99

$

Usually ships in 2-4 days

0

22102-51310

Echo 22102-51310

BEARING, NEEDLE
(Superseded to V555000110)

$10.99

$

Usually ships in 2-4 days

0

22154-55110

Echo 22154-55110

GEAR
(Superseded to V652000170)

$1.99

$

In Stock, Qty 6

0

22154-55120

Echo 22154-55120

WASHER, THRUST
(Superseded to V307000330)

$1.99

$

In Stock, only 3 left!

0

22154-56110

Echo 22154-56110

COVER, PUMP

$3.49

$

Usually ships in 2-4 days

0

22154-55200

Echo 22154-55200

AUTO-OILER ASSY
(Superseded to C022000120)

$75.99

$

In Stock, Qty 5

0
