300 (UT-10687) - Homelite Chainsaw Engine Assembly Parts Diagram

Chainsaw

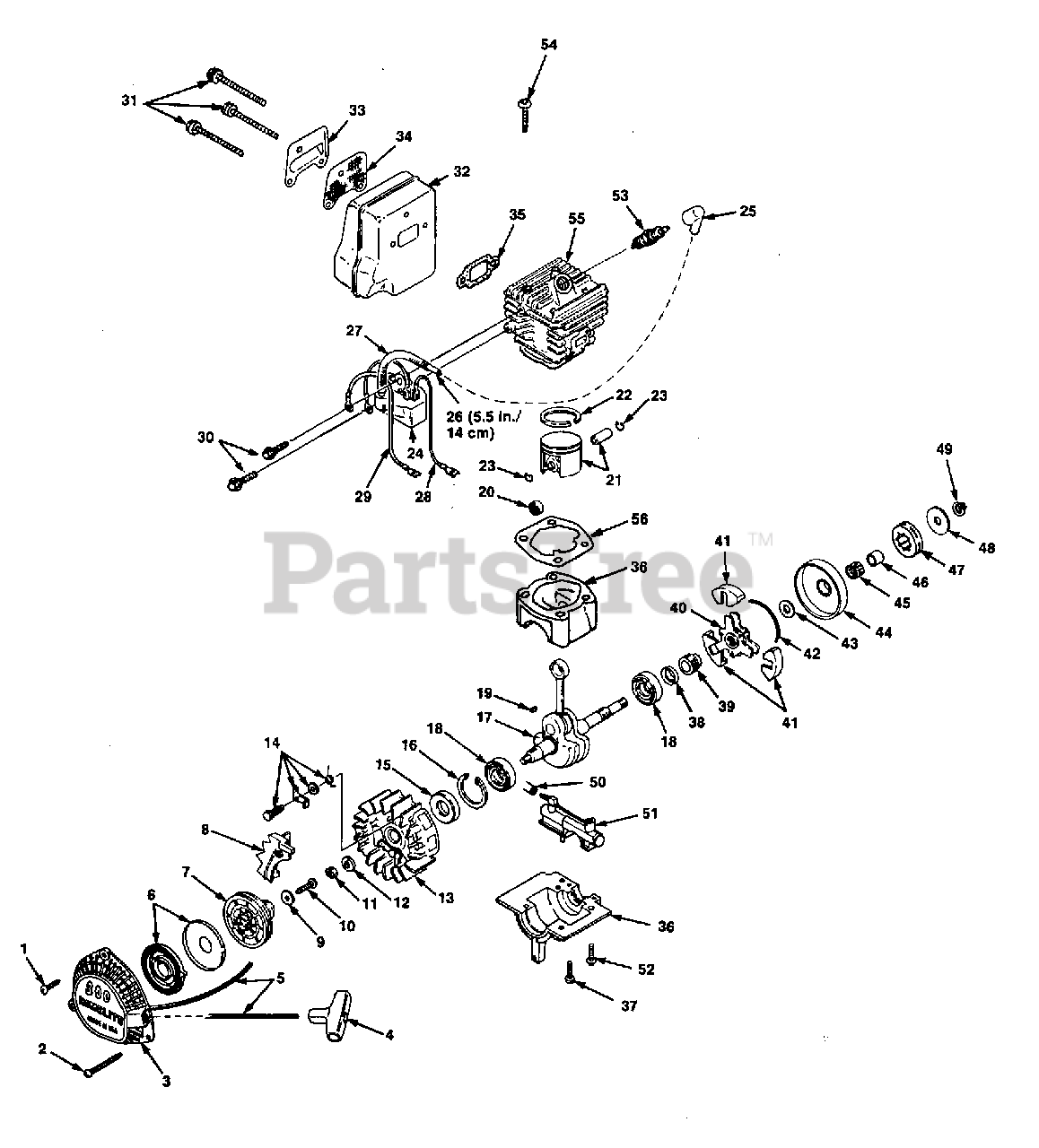

Engine Assembly Parts Diagram

  • Title

1

Homelite 82546

SCREW- (8-16 x 1/2")
(Superseded to 660675001)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 82566

SCREW- (8-16 x 2 1/4")

$

$

Not available

3

Homelite A02580A

STARTER HOUSING w/Decal

$

$

Currently unavailable

4

Homelite 02264

GRIP-Starter
(Superseded to UP03832)

$

$

Not available

5

Homelite 97899

ROPE
(Superseded to 9789901)

$2.49

$

In Stock, only 2 left!

0

6

Homelite A97908

SPRING & CONTAINER
(Superseded to 300982011)

$

$

Not available

7

Homelite 97768A

PULLEY

$

$

Currently unavailable

8

Homelite 017151

HOUSING- Starter side

$

$

Currently unavailable

9

Homelite 94062

WASHER- Retainer

$

$

Not available

10

Homelite 93417

SCREW- Thd. forming (10-24 x 5/8")
(Superseded to 82409)

$

$

Not available

11

Homelite 81124A

NUT-Jam

$

$

Not available

12

Homelite 83102

WASHER- Lock (3/8")

$

$

Not available

13

Homelite A00994A

ROTOR & STARTER PAWL ASSY.

$

$

Currently unavailable

14

Homelite A02774

STARTER PAWL

$

$

Currently unavailable

15

Homelite 98197

SEAL- Shaft
(Superseded to UP06470)

$

$

Not available

16

Homelite 289221

RING- Retaining

$

$

Not available

17

Homelite A03303

CRANKSHAFT ASSY.

$

$

Currently unavailable

18

Homelite 98797

BEARING- Ball

$

$

Not available

19

Homelite 75078

KEY- Woodruff
(Superseded to UP07068)

$

$

Not available

20

Homelite 68512

BEARING- Roller
(Superseded to UP05641)

$14.99

$

Usually ships in 3-7 days

0

21

Homelite A03301

PISTON & PIN ASSY.

$

$

Currently unavailable

22

Homelite 02263A

RING- Piston
(Superseded to UP07238)

$

$

Not available

23

Homelite 64813

RING- Retainer

$5.99

$

Usually ships in 3-7 days

0

24

Homelite A01546

MODULE- Ignition

$

$

Not available

25

Homelite A02597

BOOT- Spark plug

$

$

Not available

26

Homelite 69326

LEAD- Hi Tension

$

$

Not available

27

Homelite 95098

INSULATOR- Lead

$

$

Not available

28

Homelite A01822A

WIRE- Ignition

$

$

Currently unavailable

29

Homelite A01821A

WIRE- Ground

$

$

Not available

30

Homelite 88052

SCREW- (10-24 x 7/8")

$5.99

$

Usually ships in 3-7 days

0

31

Homelite 88058

SCREW- Sems (10-24)

$

$

Not available

32

Homelite A02555

BODY- Muffler
(Superseded to A06652)

$

$

Currently unavailable

33

Homelite 01734

COVER- Exhaust

$

$

Currently unavailable

34

Homelite 01733

SCREEN- Spark arrestor

$

$

Not available

35

Homelite 01729

GASKET- Muffler
(Superseded to UP06624)

$

$

Not available

36

Homelite A03302

CRANKCASE ASSY.

$

$

Currently unavailable

37

Homelite 80891

SCREWS- (12-24 x 7/8")

$

$

Not available

38

Homelite 93858

SEAL- Crankshaft
(Superseded to UP07439)

$

$

Not available

39

Homelite 00229

WORM- Left hand

$

$

Not available

40

Homelite A00769

CLUTCH- Spider

$

$

Not available

41

Homelite 98292

SHOE- Clutch

$10.99

$

Usually ships in 3-7 days

0

42

Homelite 98453

SPRING- Clutch
(Superseded to UP07449)

$

$

Not available

43

Homelite 58833

WASHER- Thrust (Inner)

$

$

Not available

44

Homelite A02990

SPLINE & DRUM

$

$

Not available

45

Homelite 02999

BEARING- Needle
(Superseded to UP07431)

$

$

Not available

46

Homelite 03039

RACE- Inner
(Superseded to UP07419)

$

$

Not available

47

Homelite 03012

SPROCKET- (.325 x 8 tooth)
(Superseded to 07341)

$

$

Not available

48

Homelite 65027

WASHER

$

$

Not available

49

Homelite 81255

NUT- Lock hex (3/8-24)

$

$

Not available

50

Homelite 02548

LINE- Oil

$

$

Not available

51

Homelite A02802A

PUMP- Oil
(Superseded to UP06621)

$95.99

$

Usually ships in 3-7 days

0

52

Homelite 82146

SCREW- Oil pump (8-32 x 5/8")
(Superseded to UP03887)

$1.49

$

Usually ships in 3-7 days

0

53

Homelite 98217

PLUG- Spark (RCJ6Y)
(Superseded to 870174002)

$21.99

$

Usually ships in 3-7 days

0

54

Homelite 82568

SCREW- Pan Hd.
(Superseded to UP06518)

$

$

Not available

55

Homelite A03719

CYLINDER & GASKET

$

$

Not available

56

Homelite 02527

GASKET

$

$

Not available
