300 (UT-10687) - Homelite Chainsaw Housing & Tanks Parts Diagram

Chainsaw

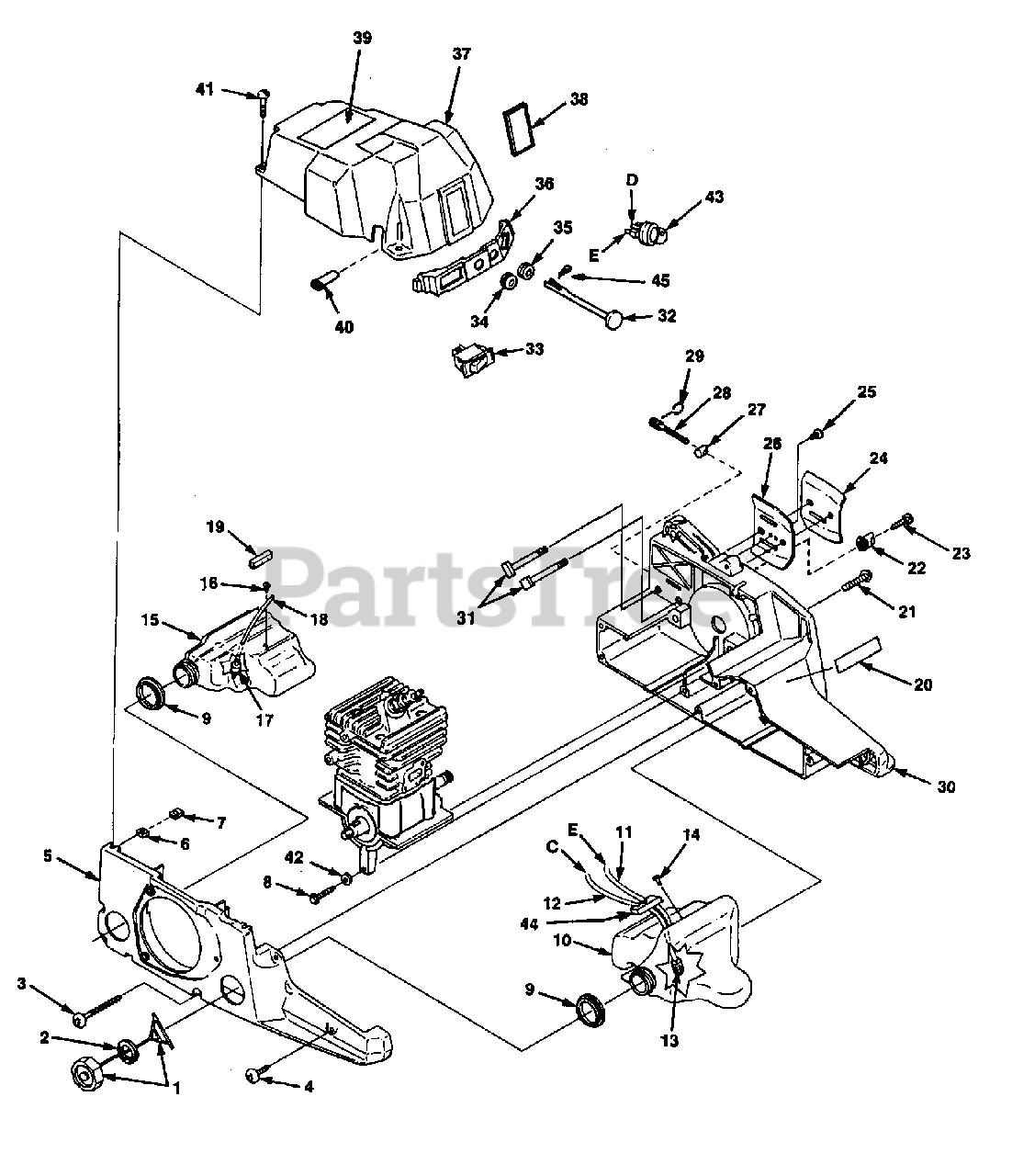

Housing & Tanks Parts Diagram

  • Title

1

Homelite A00904

CAP- Tank (w/retainer)

$

$

Currently unavailable

2

Homelite 02762

GASKET
(Superseded to UP07434)

$

$

Not available

3

Homelite 82545

SCREW (8-16 x 1 3/4")

$

$

Not available

4

Homelite 82546

SCREW- (8-16 x 5/8")
(Superseded to 660675001)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 017151

HOUSING- Starter side

$

$

Currently unavailable

6

Homelite 70810

NUT- Square (10-24)
(Superseded to UP06986)

$

$

Not available

7

Homelite 95337

NUT- Retainer

$

$

Not available

8

Homelite 82558

SCREW- Thd. forming (10-14 x 1 1/8")

$

$

Not available

9

Homelite 00993

SEAL- Tank

$

$

Not available

10

Homelite A01811

TANK- Fuel
(Superseded to A06637)

$

$

Not available

11

Homelite 7031021

TUBING- Rubber
(Superseded to 0745422)

$5.49

$

In Stock, only 1 left!

0

12

Homelite 7031036

TUBING- Rubber
(Superseded to UP06561)

$

$

Not available

13

Homelite 49422

FILTER- Fuel
(Superseded to PS03380)

$

$

Not available

14

Homelite 69451

VALVE- Check

$

$

Not available

15

Homelite A01810A

TANK- Oil

$

$

Currently unavailable

16

Homelite 69451

VALVE- Check

$

$

Not available

17

Homelite A68593

FILTER- Oil

$

$

Not available

18

Homelite 7031029

TUBING- Rubber

$

$

Not available

19

Homelite 02952

FILTER- Foam

$

$

Not available

20

Homelite 01805

DECAL- Panel
(Superseded to 01805A)

$

$

Not available

21

Homelite 80864

SCREW (12-24 x 1")
(Superseded to 808641)

$

$

Not available

22

Homelite 95212

STOP- Chain

$

$

Not available

23

Homelite 82537

SCREW (10-14 x 7/8")

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 01170

PLATE- Guide bar (outer)
(Superseded to UP06590)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 82513

SCREW (6-19 x 1/2")

$1.49

$

In Stock, Qty 5

0

26

Homelite 98278

PLATE- Guide bar (inner)

$

$

Not available

27

Homelite 651121

PIN-Adjusting
(Superseded to 651121A)

$

$

Not available

28

Homelite 03139

SCREW- Adjusting
(Superseded to UP06838)

$2.99

$

Usually ships in 3-7 days

0

29

Homelite 69599

RING- Snap

$

$

Not available

30

Homelite A03720

HOUSING- Drive side

$

$

Currently unavailable

31

Homelite 03132

BOLT- Guide Bar

$

$

Not available

32

Homelite 02262

ROD- Choke

$

$

Not available

33

Homelite 01802

SWITCH
(Superseded to UP06786)

$

$

Not available

34

Homelite 69889

BOOT- Throttle cable

$

$

Not available

35

Homelite 64862

GROMMET- Choke
(Superseded to 570219001)

$

$

Not available

36

Homelite 01169

PANEL- Control

$

$

Not available

37

Homelite A03304

COVER- Cylinder Assy.

$

$

Currently unavailable

38

Homelite 01173A

SCREEN- Air inlet

$

$

Currently unavailable

39

Homelite 02506

DECAL- Warning

$

$

Not available

40

Homelite 01728

GROMMET- Carburetor

$

$

Not available

41

Homelite 95792

SCREW- (10-24 x .710)

$

$

Not available

42

Homelite 83056

WASHER- Lock

$

$

Not available

43

Homelite 01183

BULB- Primer
(Superseded to 300780002)

$

$

Not available

44

Homelite 02952

FILTER- Foam

$

$

Not available

45

Homelite 86334

PIN- Cotter

$

$

Not available
