300 - Weed Eater String Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

String Trimmer, Electric

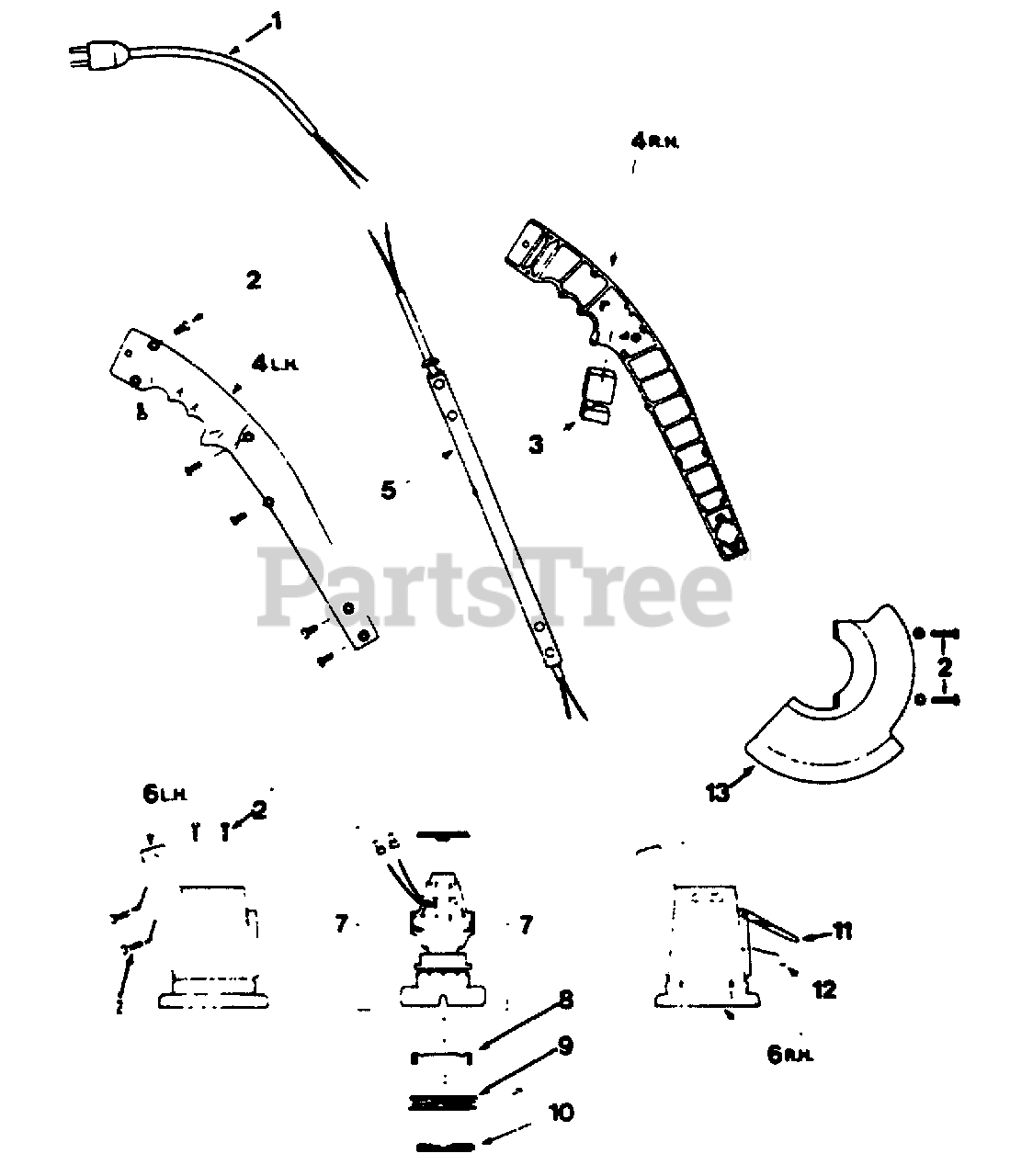

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 530090866

POWER CORD PIGTAIL

$

$

Not available

2

Poulan 530092598

SCREW

$

$

Not available

3

Poulan 530090824

SWITCH

$

$

Not available

4

Poulan 530092599

HANDLE SET

$

$

Not available

5

Poulan 092601

HANDLE TUBE (obsolete)

$

$

Not available

6

Poulan 530092602

MOTOR HSNG. ASSY.

$12.99

$

Usually ships in 3-10 days

0

8

Poulan 530092603

LINE SAVER

$

$

Not available

9

Poulan 530092604

SPOOL WOUND

$

$

Not available

10

Poulan 530092605

COUNTERBALANCE

$

$

Not available

11

Poulan 530092606

CLIP OFF LEVER

$

$

Not available

12

Poulan 530090873

CLIP OFF BLADE

$

$

Not available

13

Poulan 530092607

GUARD

$

$

Not available
