3000 (5900530) - Massey Ferguson 52" Zero-Turn Mower Fuel Tank & Mount Group Parts Diagram

52" Zero-Turn Mower

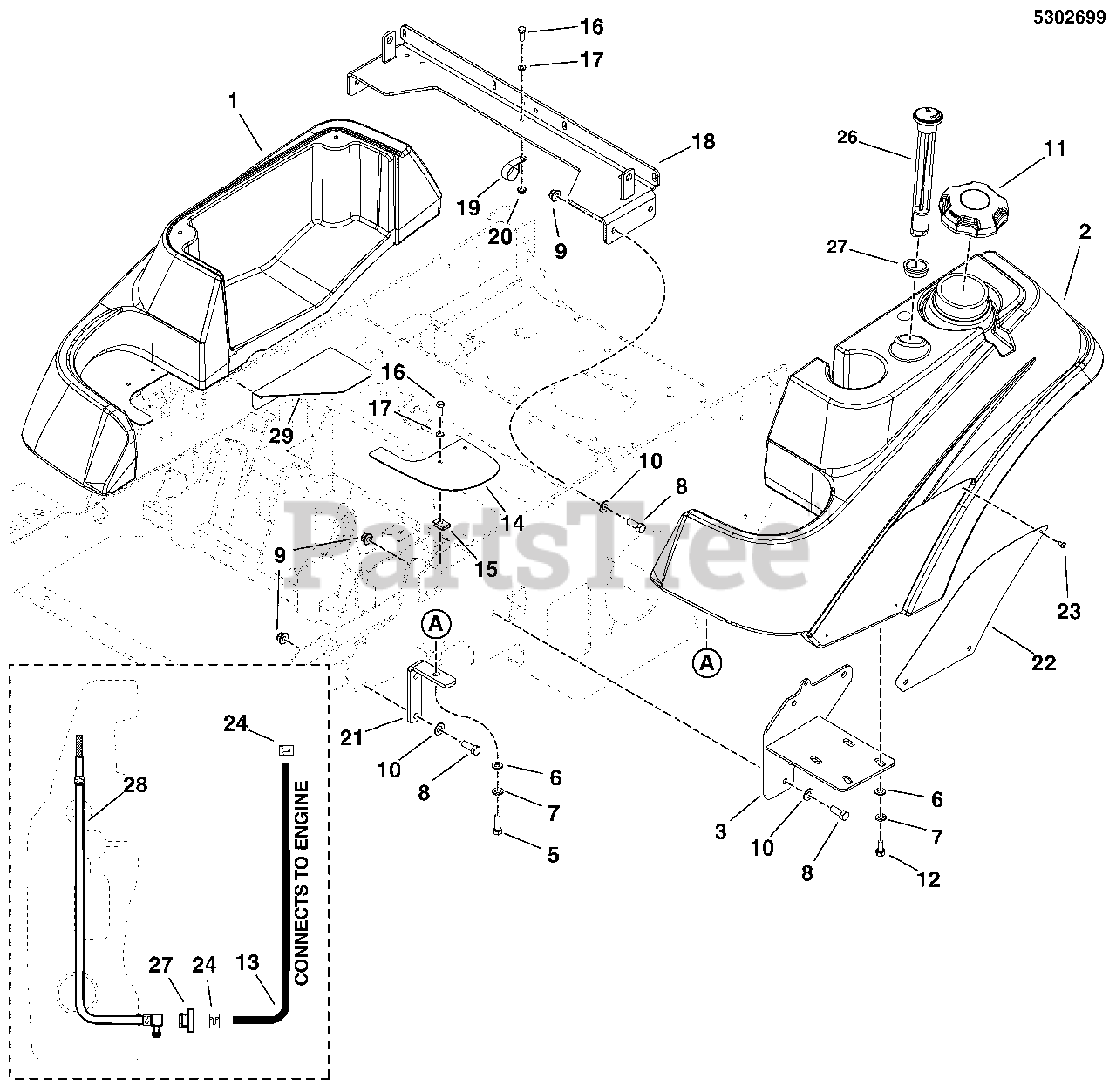

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Simplicity 5049948

TANK, FENDER, 1500Z - RH
(Superseded to 5049948SM)

$308.99

$

In Stock, only 1 left!

0

2

Simplicity 5103176

TANK, FUEL, LH, 1500Z
(Superseded to 5103176YP)

$551.99

$

Usually ships in 2-12 days

0

3

Simplicity 5407906D

WELD, MOUNT, FUEL TANK, LH -RED
(Superseded to 5407906A)

$92.99

$

Usually ships in 2-12 days

0

4

Simplicity 5407976D

WELD, MOUNT, FUEL TANK, RH -RED
(Superseded to 5407976A)

Note: (Not Shown)

$92.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Simplicity 5025170

WASHER, 5/16 LOCK YZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025013X8

BOLT, 3/8-16 X 1 GD5 YZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

9

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

12

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

13

Simplicity 5050831X4P5

HOSE, 1/4" FUEL, 4.50"
(Superseded to 5050831X4P5YP)

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 5408312A

GUARD, MASSEY TANK, 3000 - BLK
(Superseded to 5408312AYP)

$9.99

$

Usually ships in 2-12 days

0

15

Simplicity 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

17

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 12

0

18

Simplicity 5407977D

WELD, MOUNT, HYDRO TANK - RED
(Superseded to 5407977DYP)

$142.99

$

Usually ships in 2-12 days

0

19

Simplicity 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, only 1 left!

0

21

Simplicity 5408065D

BAR, TANK MOUNT, FRONT - RED
(Superseded to 5408065A)

$9.99

$

Usually ships in 2-12 days

0

22

Simplicity 5400250D

PLATE, BADGE - IS1500
(Superseded to 5400250DYP)

$54.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 5020835

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 5020835SM)

$

$

Not available

25

Simplicity 1726400SM

BUSHING-FUEL TANK RED RUBBER (SV)
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

26

Simplicity 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

27

Simplicity 5022917X1

GROMMET, FUEL GAUGE
(Superseded to 5022917X1SM)

$6.99

$

In Stock, only 3 left!

0

28

Simplicity 5101144

PICKUP TUBE ASM, FUEL TANK

$33.99

$

Usually ships in 2-12 days

0

29

Simplicity 5408430D

PLATE, GUARD, SEAT, RH
(Superseded to 5408430A)

$27.99

$

Usually ships in 2-12 days

0

30

Simplicity 5408431D

PLATE, GUARD, SEAT, LH
(Superseded to 5408431A)

Note: (Not Shown)

$25.99

$

Usually ships in 2-12 days

0
