3000 (5900530) - Massey Ferguson 52" Zero-Turn Mower Instrument Control Panel Group Parts Diagram

52" Zero-Turn Mower

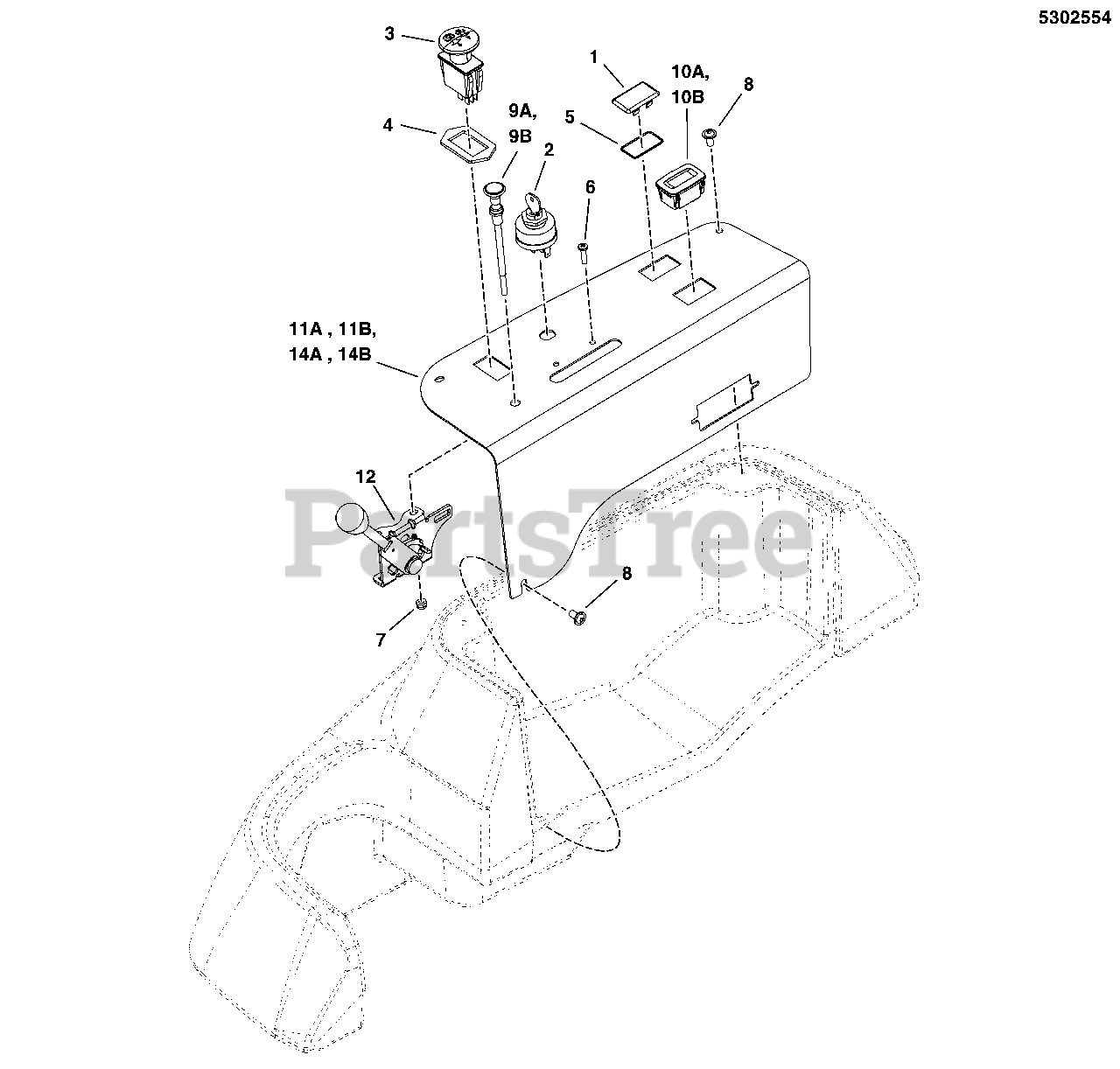

Instrument Control Panel Group Parts Diagram

  • Title

1

Simplicity 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$5.49

$

In Stock, Qty 7

0

2

Simplicity 1737853

SWITCH ASSEMBLY, Ignition Indak No Keys/Hdwr
(Superseded to 1737853YP)

$38.99

$

In Stock, Qty 10

0

3

Simplicity 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$35.99

$

In Stock, Qty 20+

0

4

Simplicity 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

5

Simplicity 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$7.49

$

Usually ships in 2-12 days

0

7

Simplicity 703412

NUT, Nylock, #10-24, GR2

Note: (5025271)

$4.49

$

In Stock, Qty 5

0

8

Simplicity 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.99

$

In Stock, only 2 left!

0

9A

Simplicity 5100184

CABLE, CHOKE CONTROL, 43.5"
(Superseded to 5100184SM)

Note: (Kawasaki Models)

$43.99

$

In Stock, only 2 left!

0

9B

Simplicity 5046501

CABLE, Choke Control, 47"
(Superseded to 5046501SM)

Note: (Briggs & Stratton Models)

$59.99

$

In Stock, only 2 left!

0

10A

HOUR METER, ASSEMBLE

Note: (S/N: 2015551938 & Above)(*See Footnote)

$

$

Not available

10B

Simplicity 5102417

HOUR METER
(Superseded to 5102417YP)

Note: (S/N: 2015551937 & Below)

$69.99

$

In Stock, only 2 left!

0

11A

Simplicity 5403402ASM

PLATE, CONTROL PANEL - BLACK

Note: (61" Models - S/N: 2016950122 & Below)

$73.99

$

Usually ships in 2-12 days

0

11B

Simplicity 5410303AYP

PLATE, CONTROL PANEL, IS600Z - BLK

Note: (61" Models - S/N: 2016950123 & Above)

$70.99

$

Usually ships in 2-12 days

0

12

Simplicity 5101537

LEVER, THROTTLE CONTROL
(Superseded to 5101537SM)

$50.99

$

In Stock, only 4 left!

0

13

Simplicity 5101073

CABLE, Throttle Control, 42"
(Superseded to 5101073SM)

Note: (NOT SHOWN)

$34.99

$

In Stock, Qty 9

0

14A

Simplicity 5410303A

PLATE, CONTROL PANEL, IS600Z - BLK
(Superseded to 5410303AYP)

Note: (72" Models - S/N: 2016950122 & Below)

$70.99

$

Usually ships in 2-12 days

0

14B

Simplicity 5411933A

PANEL, CONTROL, IS2100Z - BLK
(Superseded to 5411933AAFS)

Note: (72" Models - S/N: 2016950123 & Above)

$34.99

$

Usually ships in 2-12 days

0
