3000 B - Poulan Weed N Blow Blower, Type 1 (2006-09) Housing - Type 1 Parts Diagram

Weed N Blow Blower, Type 1

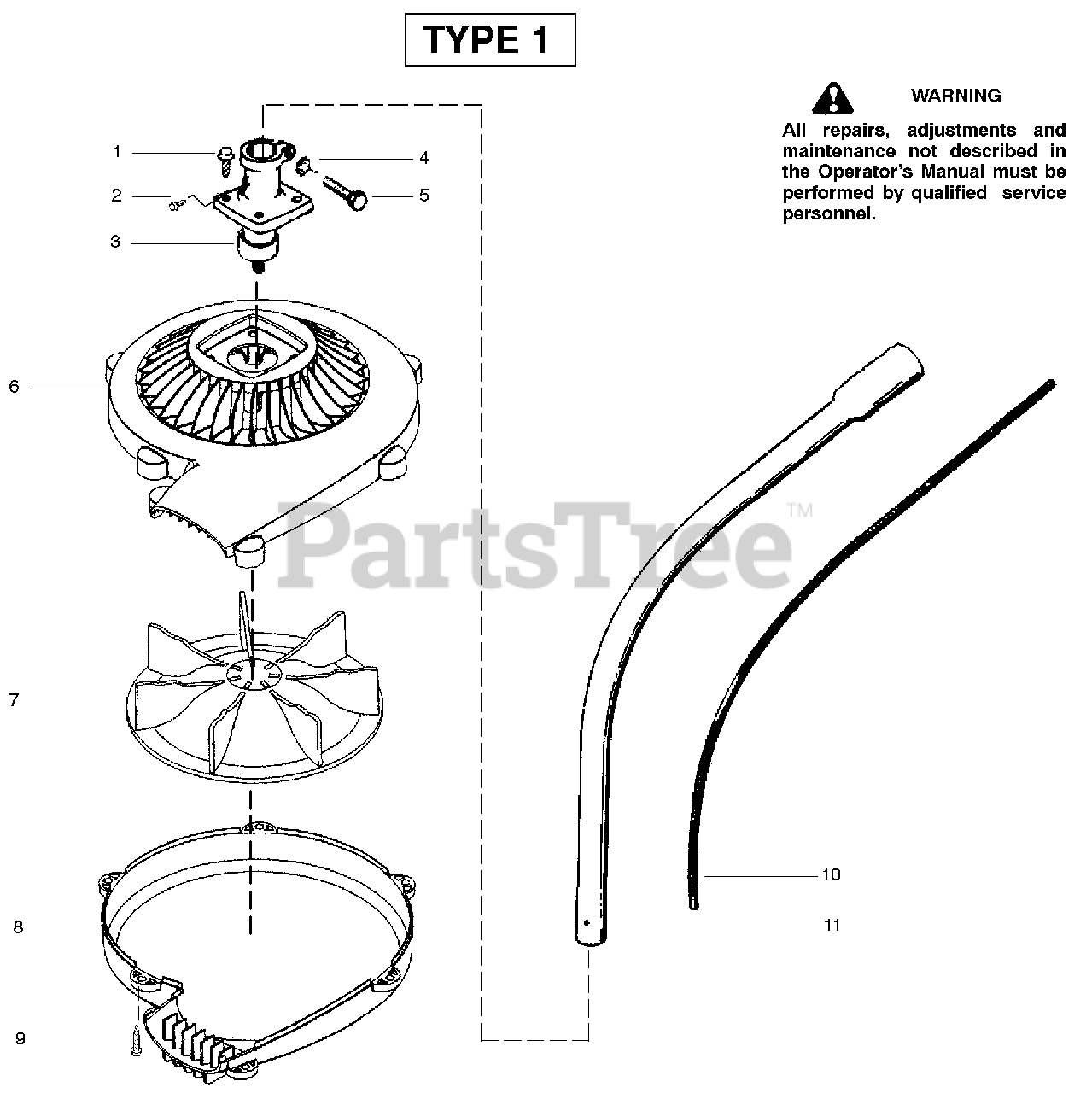

Housing - Type 1 Parts Diagram

  • Title

1

Electrolux/AYP 530016360

Screw (brg hsg/blwr)

$

$

Not available

2

Electrolux/AYP 530015518

Screw-Shaft Alignment

$

$

Not available

3

Electrolux/AYP 530094581

Assy-Bearing Hsg.

Note: (Incl. # 2,4,5)

$

$

Not available

4

Electrolux/AYP 530092227

Washer-Lock (star)

$

$

Not available

5

Electrolux/AYP 534828400

Bolt

$

$

Not available

6

Electrolux/AYP 530095891

Blower-Scroll (upper)

$

$

Not available

7

Electrolux/AYP 530055123

Impeller

$

$

Not available

8

Electrolux/AYP 530095892

Blower-Scroll (lower)

$20.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530016273

Screw

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530095884

Flexshaft-Split Boom

$

$

Not available

11

Electrolux/AYP 530095990

Assy-Lower Driveshaft

$29.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530086789

Manual

Note: Not Shown

$

$

Not available

11

Electrolux/AYP 530095894

Hanger-Attachment
(Superseded to 530150031)

Note: Not Shown

$4.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 530056153

Decal-Impeller Hsg.

Note: Not Shown

$

$

Not available
