3000 B (UT-26035) - Green Machine String Trimmer Handle & Throttle Parts Diagram

String Trimmer

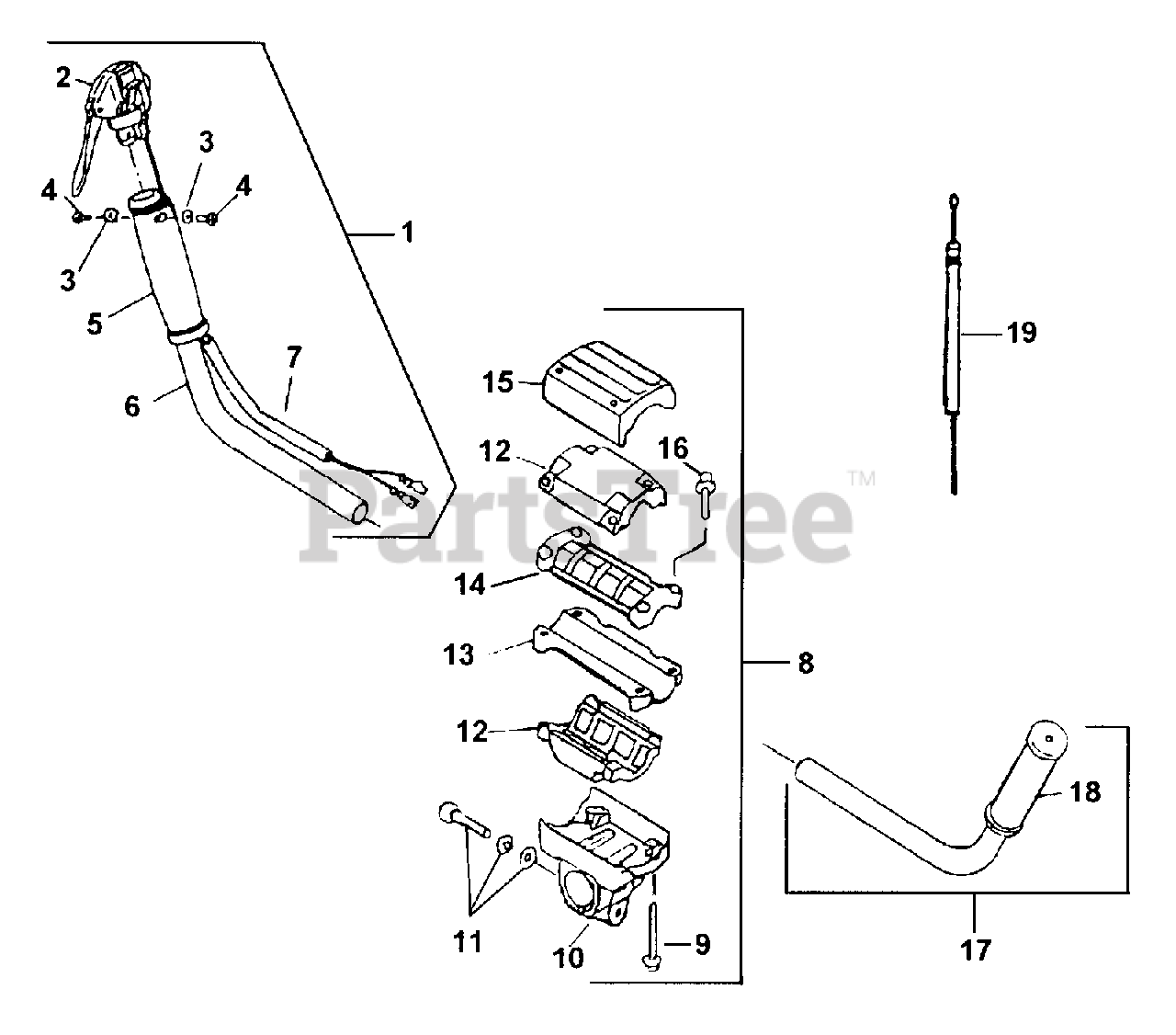

Handle & Throttle Parts Diagram

  • Title

1

Homelite A08266

HANDLE ASSY R. H.
(Superseded to UP06647)

$

$

Not available

2

Homelite GM400386

THROTTLE ASSY.

$63.99

$

Usually ships in 3-7 days

0

3

Homelite GM040025

WASHER

$

$

Not available

4

Homelite GM012302

SCREW
(Superseded to 88180)

Note: Torque Specs: 5-20 In/Lbs; 5-23 Nm

$

$

Not available

5

Homelite GM405504

GRIP R.H.

$

$

Currently unavailable

6

Homelite GM406801

HANDLE & GRIP R.H.

$

$

Currently unavailable

7

Homelite GM403501

TUBE, HARNESS

$

$

Currently unavailable

8

Homelite GM400374

HANDLE JOINT ASSY.

$

$

Not available

9

Homelite 03944

BOLT & WASHER

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available

10

Homelite GM406112

HANDLE JOINT LOWER

$99.99

$

Usually ships in 3-7 days

0

11

Homelite GM012301

SCREW & WASHER
(Superseded to 03943)

Note: Torque Specs: 35-45 In/Lbs; 3.9-4.8 Nm

$

$

Not available

12

Homelite GM405506

ISOLATING RUBBER

$

$

Not available

13

Homelite GM406113

PIPE FITTING LOWER

$

$

Not available

14

Homelite GM406114

PIPE FITTING UPPER

$30.99

$

Usually ships in 3-7 days

0

15

Homelite GM406111

HANDLE JOINT UPPER

$

$

Currently unavailable

16

Homelite GM032803

SCREW

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$3.49

$

Usually ships in 3-7 days

0

17

Homelite GM406801

HANDLE & GRIP L.H.

$

$

Currently unavailable

18

Homelite GM405505

GRIP L.H.

$17.99

$

Usually ships in 3-7 days

0

19

Homelite GM287101

THROTTLE CABLE
(Superseded to UP06988)

$

$

Not available
