3000 HB (UT-26111-A) - Green Machine Blower Air Filter / Muffler / Carburetor Parts Diagram

Blower

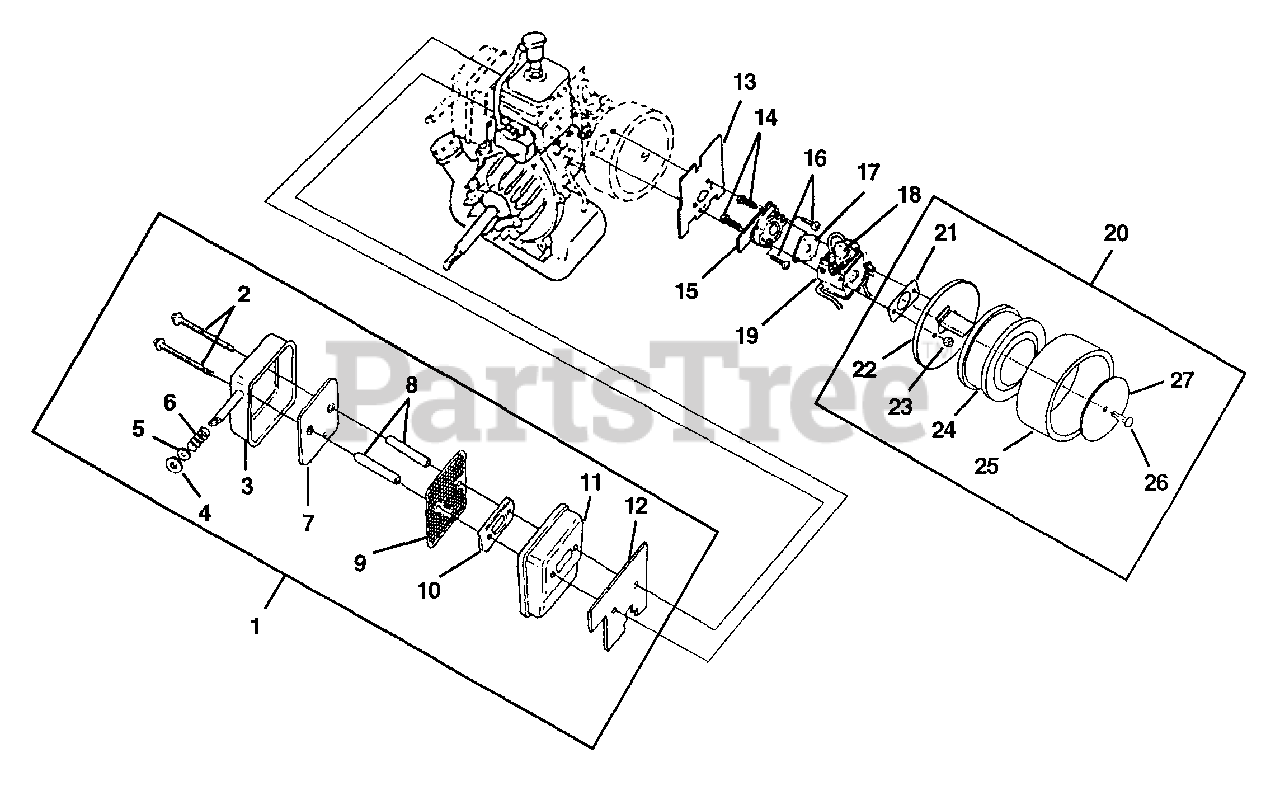

Air Filter / Muffler / Carburetor Parts Diagram

  • Title

1

Homelite A04714

MUFFLER ASSY.
(Superseded to UP04486)

$

$

Not available

2

Homelite 88060

SCREW, (SEMS HEX HD 10-24 X 2 1/2")
(Superseded to 660673001)

Note: Torque Specs: 40-50 In/Lbs; 4.6-5.8 Nm

$2.49

$

Usually ships in 3-7 days

0

3

Homelite A00366

MUFFLER COVER

$

$

Not available

4

Homelite 00381

WASHER, INSULATING

$

$

Not available

5

Homelite 84117

WASHER, FLAT

$

$

Not available

6

Homelite 00387

SPRING, COMPRESSION

$

$

Not available

7

Homelite 00777

DEFLECTOR, MUFFLER

$6.49

$

Usually ships in 3-7 days

0

8

Homelite 04785

SPACER, MUFFLER

$

$

Not available

9

Homelite 00388B

SCREEN, SPARK ARRESTOR

$

$

Not available

10

Homelite 98783

PLATE, REINFORCING

$

$

Not available

11

Homelite 98781

BODY, MUFFLER
(Superseded to 04710)

$33.99

$

Usually ships in 3-7 days

0

12

Homelite 00394A

GASKET, MUFFLER
(Superseded to UP03817)

$

$

Not available

13

Homelite 08840

GASKET, HEAT DAM

$

$

Not available

14

Homelite 04474

SCREW, MACHINE 10-24 X 2 1/4

Note: Torque Specs: 30-40 In/Lbs; 3.5-4.6 Nm

$

$

Not available

15

Homelite 98768

HEAT DAM
(Superseded to 98768A)

$

$

Not available

16

Homelite 093221

SCREW, SEMS (10-24 x 1.110)
(Superseded to 660662001)

Note: Torque Specs: 40-50 In/Lbs; 4.6-5.8 Nm

$

$

Not available

17

Homelite 98766A

GASKET, CARBURETOR
(Superseded to 900994004)

$

$

Not available

18

Homelite 01201

PRIMER BULB (WALBRO)
(Superseded to UP04802)

$9.99

$

Usually ships in 3-7 days

0

Homelite A01195A

PRIMER BULB (ZAMA)
(Superseded to UP04803)

$

$

Not available

19

Homelite A06805A

CARBURETOR
(Superseded to UP00651)

$

$

Not available

20

Homelite A04610B

AIR FILTER ASSY.

$

$

Not available

21

Homelite 04325

GASKET, CARBURETOR

$

$

Not available

22

Homelite 03890

PLATE, FILTER

$

$

Not available

23

Homelite 81208

NUT, MACHINE 10-24

Note: Torque Specs: 30-40 In/Lbs; 3.5-4.6 Nm

$

$

Not available

24

Homelite 03847

AIR FILTER

$

$

Not available

25

Homelite 04307B

PRE-FILTER
(Superseded to UP04412)

$

$

Not available

26

Homelite 825551

SCREW, (MACHINE 10-24 X 3/4")
(Superseded to UP03899)

Note: Torque Specs: 30-40 In/Lbs; 3.5-4.6 Nm

$2.99

$

Usually ships in 3-7 days

0

27

Homelite 041451

WASHER, FILTER
(Superseded to UP04411)

$

$

Not available
