3000 J (UT-26034) - Green Machine String Trimmer Deflector Parts Diagram

String Trimmer

Deflector Parts Diagram

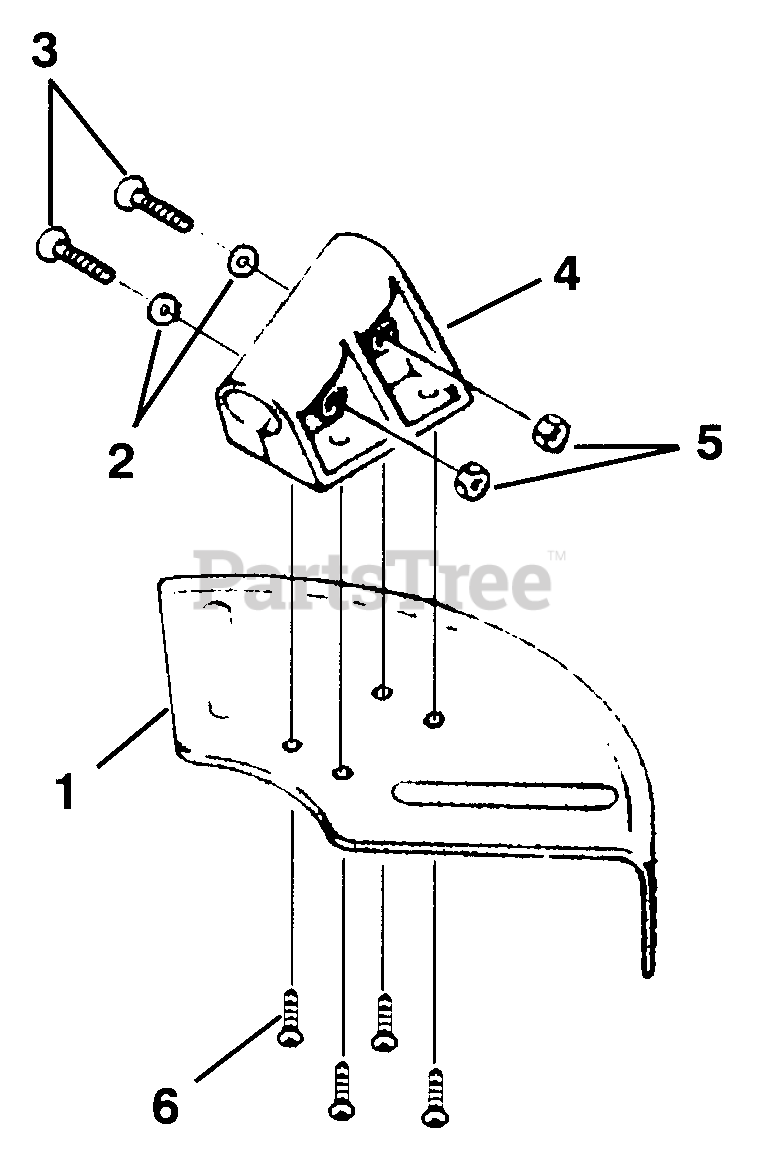

  • Title

Homelite GM24700A

BLADE GUARD ASSY

$

$

Not available

1

Homelite GM247001

BLADE GUARD
(Superseded to GM24700A)

$

$

Not available

2

Homelite GM040002

WASHER

$

$

Not available

3

Homelite GM011417

SCREW

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available

4

Homelite GM245201

BRACKET, GUARD

$

$

Not available

5

Homelite GM051012

NUT

$

$

Currently unavailable

6

Homelite GM011423

SCREW, SELF TAPPING
(Superseded to UP06817)

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available
