3000 J (UT-26034) - Green Machine String Trimmer Engine Internal Parts Diagram

String Trimmer

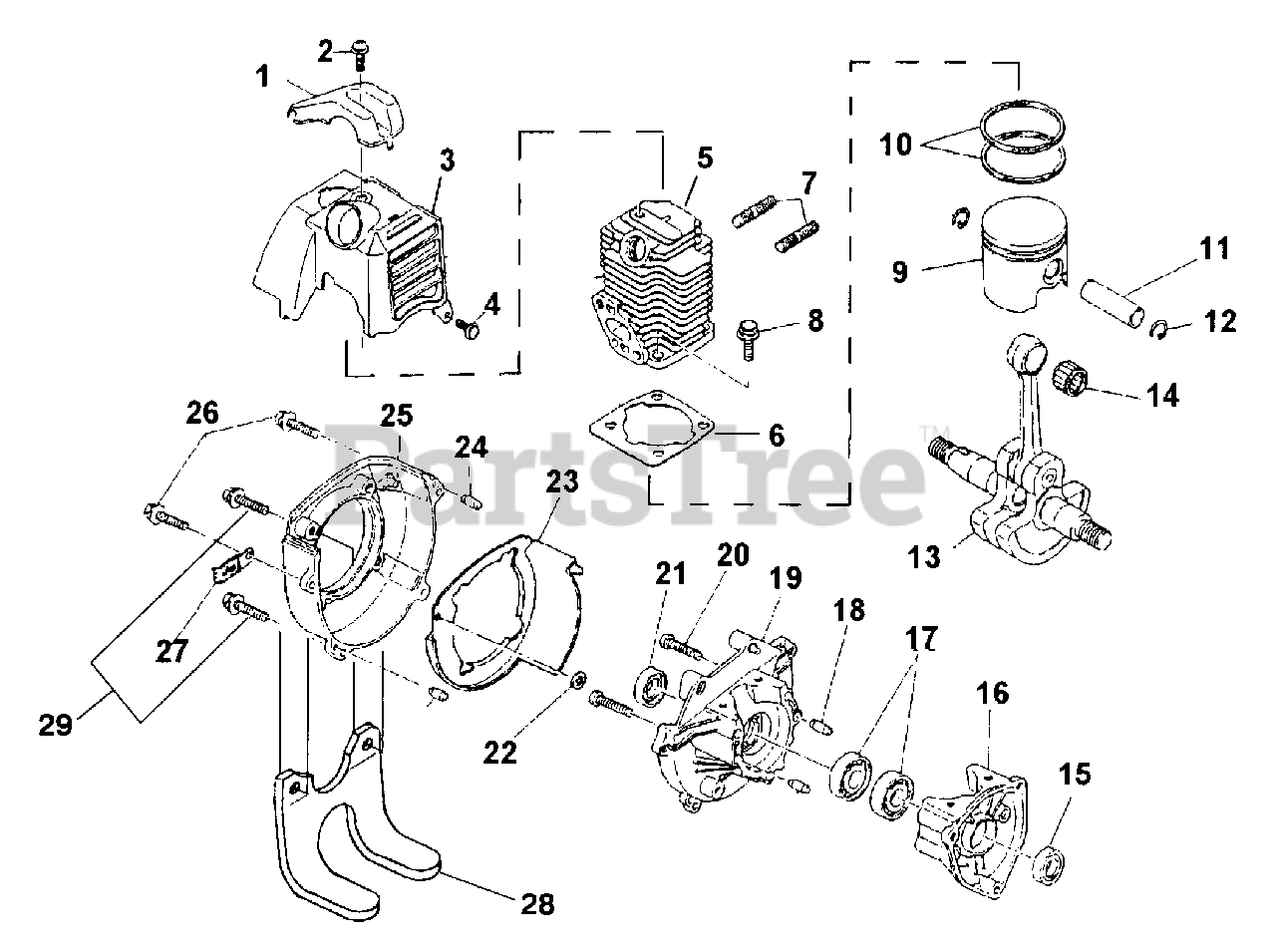

Engine Internal Parts Diagram

  • Title

1

Homelite 07722

GUARD, PLUG

$

$

Not available

2

Homelite 07723

SCREW & WASHER

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

3

Homelite 07721

COVER, TOP

$

$

Not available

4

Homelite 07724

SCREW & WASHER

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

5

Homelite A07889

CYLINDER ASSY

Note: (26cc)

$

$

Currently unavailable

6

Homelite 07718

GASKET, CYLINDER

$

$

Not available

7

Homelite 07720

STUD

$

$

Not available

8

Homelite 07719

SCREW & WASHER

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

9

Homelite A07891

PISTON ASSY

Note: (26cc)

$

$

Not available

10

Homelite 07733

RING, PISTON

Note: (26cc)

$

$

Not available

11

PIN, PISTON

$

$

Not available

12

CLIP, PISTON

$

$

Not available

13

Homelite A07893

CRANKSHAFT ASSY

Note: (26cc)

$

$

Not available

14

Homelite GM071410

BEARING

$

$

Not available

15

Homelite 07708

OIL SEAL

$

$

Not available

16

Homelite 07707

CASE, STARTER

$

$

Not available

17

Homelite GM071009

BEARING

$

$

Not available

18

Homelite 07709

PIN, DOWEL

$

$

Not available

19

Homelite 07706

CASE, DRIVE

$

$

Not available

20

Homelite GM002805

SCREW

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

21

Homelite GM081502

OIL SEAL
(Superseded to 07708)

$

$

Not available

22

Homelite 07712

NUT

$

$

Not available

23

Homelite 07711

NOSE

$

$

Not available

24

Homelite 07710

PIN, DOWEL

$

$

Not available

25

Homelite 07713

CASE, FAN

$

$

Not available

26

Homelite 07714

BOLT & WASHER

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

27

Homelite 07725

CLAMP

$

$

Not available

28

Homelite A08887

ENGINE STAND

$

$

Not available

29

Homelite 08888

SCREW (M5 X 20)

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available
