3000 M (UT-26021) - Green Machine String Trimmer Starter Parts Diagram

String Trimmer

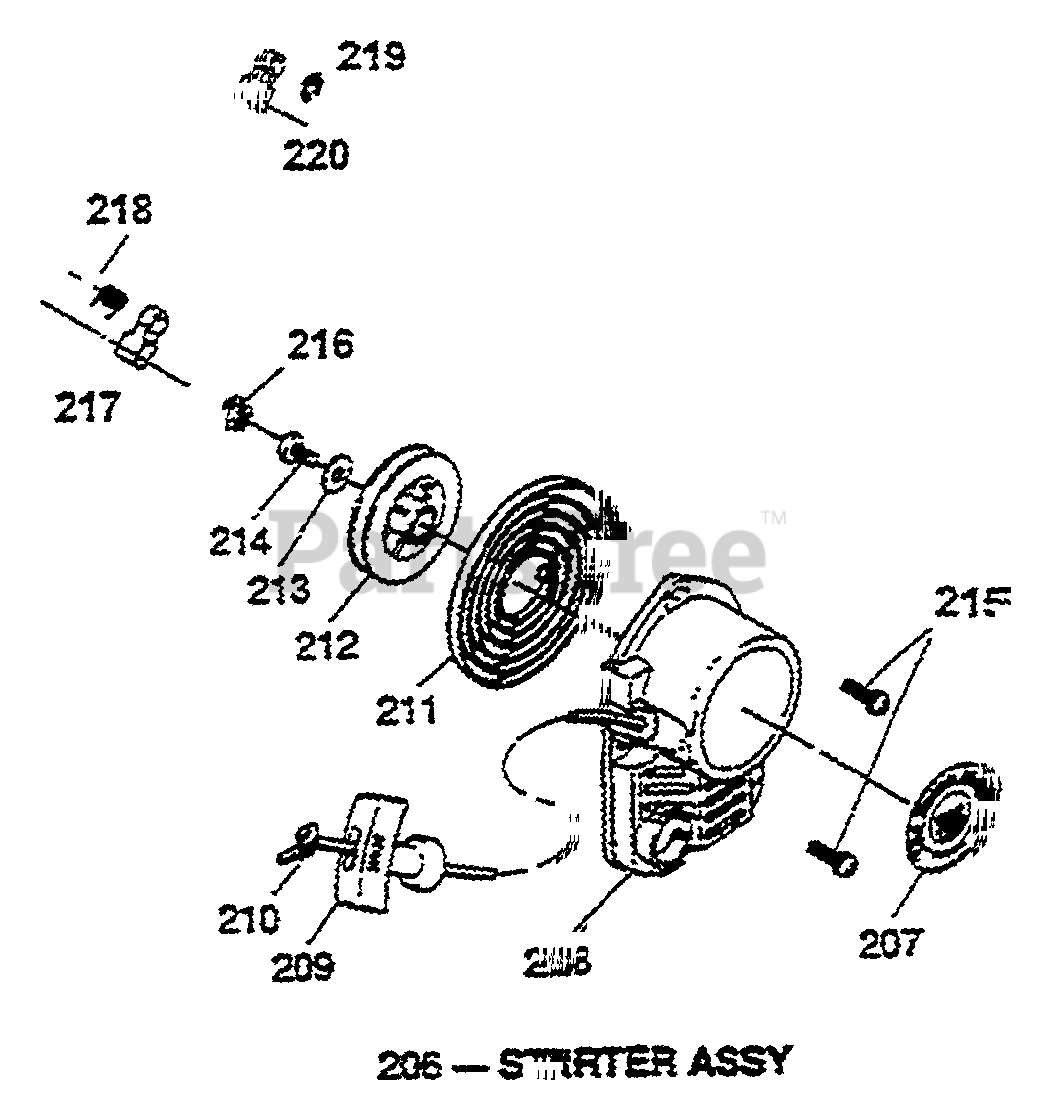

Starter Parts Diagram

  • Title

206

Homelite GM287302

STARTER ASSY

Note: (W/HOLE) ;Includes ref No. 208 thru 214

$

$

Currently unavailable

206

Homelite GM287308

STARTER ASSY

Note: (WO/HOLE);Includes ref No. 208 thru 214

$263.99

$

Usually ships in 3-7 days

0

207

Homelite GM289502

LABEL, NAME

$

$

Currently unavailable

208

Homelite GM287307

CASE, STARTER

Note: (W/HOLE)

$

$

Not available

208

Homelite GM287309

CASE, STARTER

Note: (WO/HOLE)

$187.99

$

Usually ships in 3-7 days

0

209

Homelite GM287306

KNOB, STARTER

$

$

Not available

210

Homelite GM287305

ROPE, STARTER

$

$

Not available

211

Homelite GM287304

SPRING, SPIRAL

$18.99

$

Usually ships in 3-7 days

0

212

Homelite GM287303

REEL

$

$

Not available

213

Homelite GM042804

WASHER

$5.49

$

Usually ships in 3-7 days

0

214

Homelite GM002812

SCREW

$

$

Currently unavailable

215

Homelite GM032803

BOLT AND WASHER

$3.49

$

Usually ships in 3-7 days

0

216

Homelite GM052801

NUT

$2.99

$

Usually ships in 3-7 days

0

217

Homelite GM286715

RATCHET

$

$

Currently unavailable

218

Homelite GM287902

SPRING

$

$

Currently unavailable

219

Homelite GM062803

SNAP RING

$

$

Not available

220

Homelite GM286106

RATCHET

$

$

Not available
