3000 - Poulan Chainsaw POWER UNIT Parts Diagram

Chainsaw

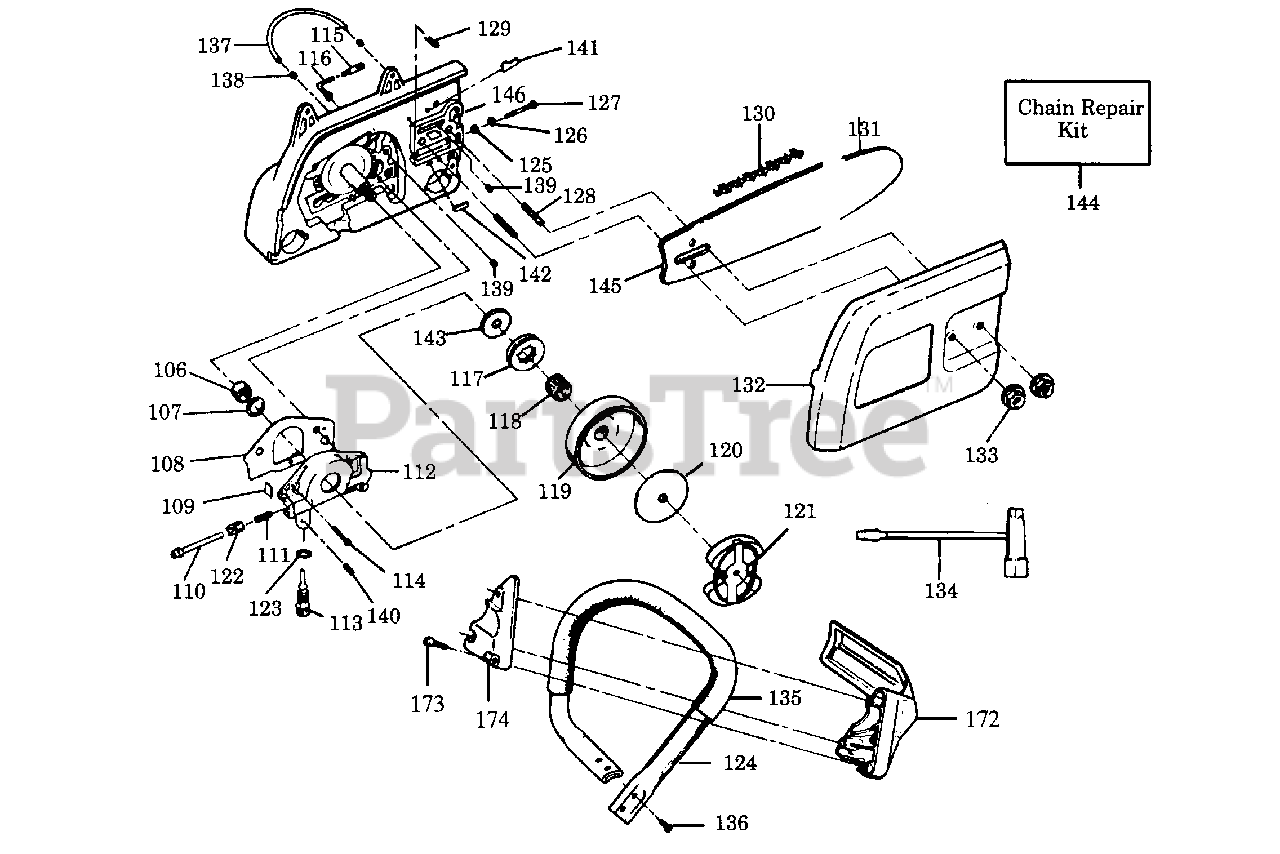

POWER UNIT Parts Diagram

  • Title

106

Poulan 530027140

Worm Gear

$

$

Not available

107

Poulan 530019147

Seal

$

$

Not available

108

Poulan 530069217

Gasket Set

$

$

Not available

109

Poulan 530027128

Dust Plug

$

$

Not available

110

Poulan 530014204

Plunger

$

$

Not available

111

Poulan 530027126

Spring

$

$

Not available

112

Poulan 530069218

Oil Pump Kit

Note: (Incl. #'s 106,107,109,110,111, 113,122,123&140)

$

$

Not available

114

Poulan 530015871

Screw
(Superseded to 530015650)

$

$

Not available

115

Poulan 530027272

Oil Pickup & Filter

$

$

Not available

116

Poulan 530027192

Oiler Intake Line

$

$

Not available

117

Poulan 530028650

Rim Sprocket (3000 only)
(Superseded to 640200010)

$9.49

$

In Stock, Qty 16

0

118

Poulan 530032049

Bearing

$

$

Not available

119

Poulan 530048084

Drum Sprocket (Model 2700,2800,3300)

$20.99

$

Usually ships in 3-10 days

0

119

Poulan 530048083

Drum (Model 3000)

$

$

Not available

120

Poulan 530027161

Clutch Plate

$

$

Not available

121

Poulan 530014161

Clutch Ass'y.

$

$

Not available

122

Poulan 530027129

Oiler Gear Spur

$

$

Not available

123

Poulan 530019079

"O" Ring

$

$

Not available

124

Poulan 530022312

Handlebar Ass'y.

$

$

Not available

125

Poulan 530023064

Bar Adjusting Pin

$5.99

$

Usually ships in 3-10 days

0

126

Poulan 530024419

"E" Ring

$5.99

$

In Stock, Qty 9

0

127

Poulan 530015730

Screw
(Superseded to 530016110)

$3.49

$

In Stock, Qty 10

0

128

Poulan 530015719

Bar Stud

$

$

Not available

129

Poulan 530015108

Vent Pin

$3.49

$

In Stock, only 2 left!

0

130

Poulan 952051301

Chain 16"

$

$

Not available

130

Poulan 952051313

Chain 18"

$

$

Not available

130

Poulan 952051310

Chain 20"

$

$

Not available

131

Poulan 530055072

Replaceable Sprocket Nose
(Superseded to 952044372)

$

$

Not available

132

Poulan 530010869

Bar Clamp Ass'y.

Note: (Incl. 142)

$

$

Not available

133

Poulan 530015445

Nut
(Superseded to 530015251)

$4.99

$

Usually ships in 3-10 days

0

134

Poulan 530031146

Scrench
(Superseded to 501691701)

$

$

Not available

135

Poulan 530027847

Grip

$

$

Not available

136

Poulan 530016058

Screw

$

$

Not available

137

Poulan 530021061

Oiler Discharge Line

$

$

Not available

138

Poulan 530002464

Oiler Discharge Sleeve

$3.49

$

In Stock, only 1 left!

0

139

Poulan 530015422

Tubing Nut

$

$

Not available

140

Poulan 530015752

Oiler Adjustment Pin

$

$

Not available

141

Poulan 530027222

Chain Pad - Top

$

$

Not available

142

Poulan 530027223

Chain Pad

$

$

Not available

143

Poulan 530015733

Thrust Washer

$4.99

$

In Stock, only 4 left!

0

144

Poulan 530052085

Chain Repair Kit

$

$

Not available

145

Poulan 952044324

Model 2800
(Superseded to 530044405)

$

$

Not available

145

Poulan 952044372

Model 3000,3300

$

$

Not available

145

Poulan 952044325

Bar 18"

$39.99

$

In Stock, only 1 left!

0

145

Bar 20"

$

$

Not available

145

Poulan 952044377

Model 3000

$

$

Not available

145

Poulan 952044326

Model 2700,3100,3300

$

$

Not available

146

Poulan 530029236

Crankcase Plug

$

$

Not available

172

Poulan 530024466

Handguard - See also 65 External Power Unit

$

$

Not available

173

Poulan 530015509

Screw

$3.49

$

In Stock, only 2 left!

0

174

Poulan 530024467

Handguard Cap

$

$

Not available

174

, Ass'y. Parts Bag

Note: Not Shown.

$

$

Not available

Poulan 530014958

Model 2700

Note: Not Shown.

$

$

Not available

Poulan 530010883

Model 2800

Note: Not Shown.

$

$

Not available

Poulan 530010882

Model 3000

Note: Not Shown.

$

$

Not available

Poulan 530014858

Model 3100

Note: Not Shown.

$

$

Not available

Poulan 530010971

Model 3300-16"

Note: Not Shown.

$

$

Not available

Poulan 530014110

Model 3300-18"

Note: Not Shown.

$

$

Not available

Poulan 530010973

Model 3300-20"

Note: Not Shown.

$

$

Not available
