30032 - Toro 91cm Walk-Behind Mower, T-Bar, Hydro Drive, 15hp (SN: 310000001 - 310999999) (2010) HYDRAULIC MOTOR ASSEMBLY NO. 104-1171 Parts Diagram

91cm Walk-Behind Mower, T-Bar, Hydro Drive, 15hp

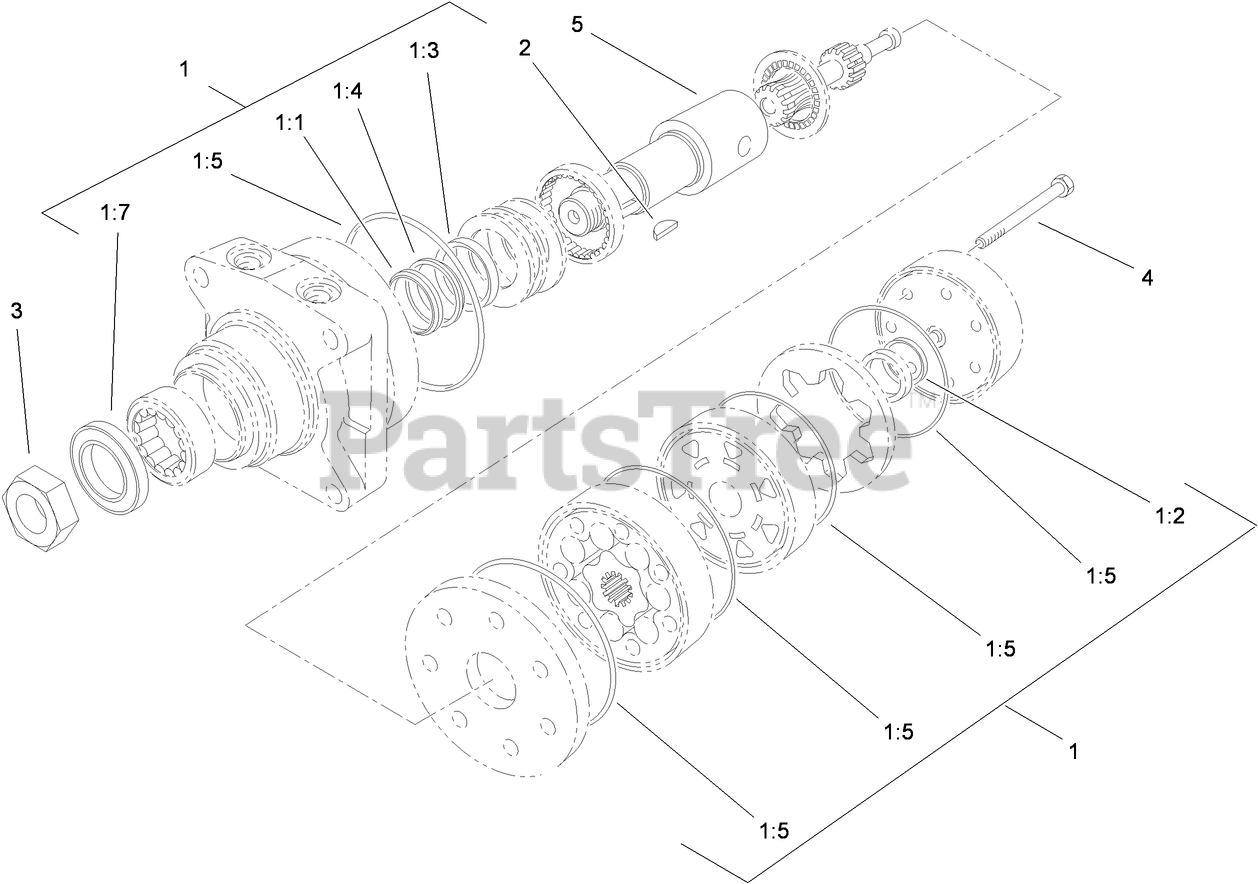

HYDRAULIC MOTOR ASSEMBLY NO. 104-1171 Parts Diagram

  • Title

1

Toro 1-000119

SEAL KIT

$222.99

$

In Stock, only 1 left!

0

1:1

Ring-Back Up

Note: Not serviced separately

$

$

Not available

1:2

Seal-Commutator

Note: Not serviced separately

$

$

Not available

1:3

SEAL-SHAFT (VITON)

Note: Not serviced separately

$

$

Not available

1:4

WASHER-BACK UP, STEEL

Note: Not serviced separately

$

$

Not available

1:5

RING-SEAL (VITON)

Note: Not serviced separately

$

$

Not available

1:7

Seal-Dirt and Water

Note: Not serviced separately

$

$

Not available

2

Toro 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 5

0

3

Toro 85-7310

NUT-MOTOR, WHEEL

$28.99

$

Usually ships in 3-6 days

0

4

Toro 106-5549

BOLT-SPECIAL

$14.99

$

Usually ships in 3-6 days

0

5

Toro 106-8764

SHAFT-COUPLING

$1057.99

$

Usually ships in 3-6 days

0
