300421-0111-XX - Briggs & Stratton Horizontal Engine Carb,FuelTank,A/C,BlowerHsg Parts Diagram

Horizontal Engine

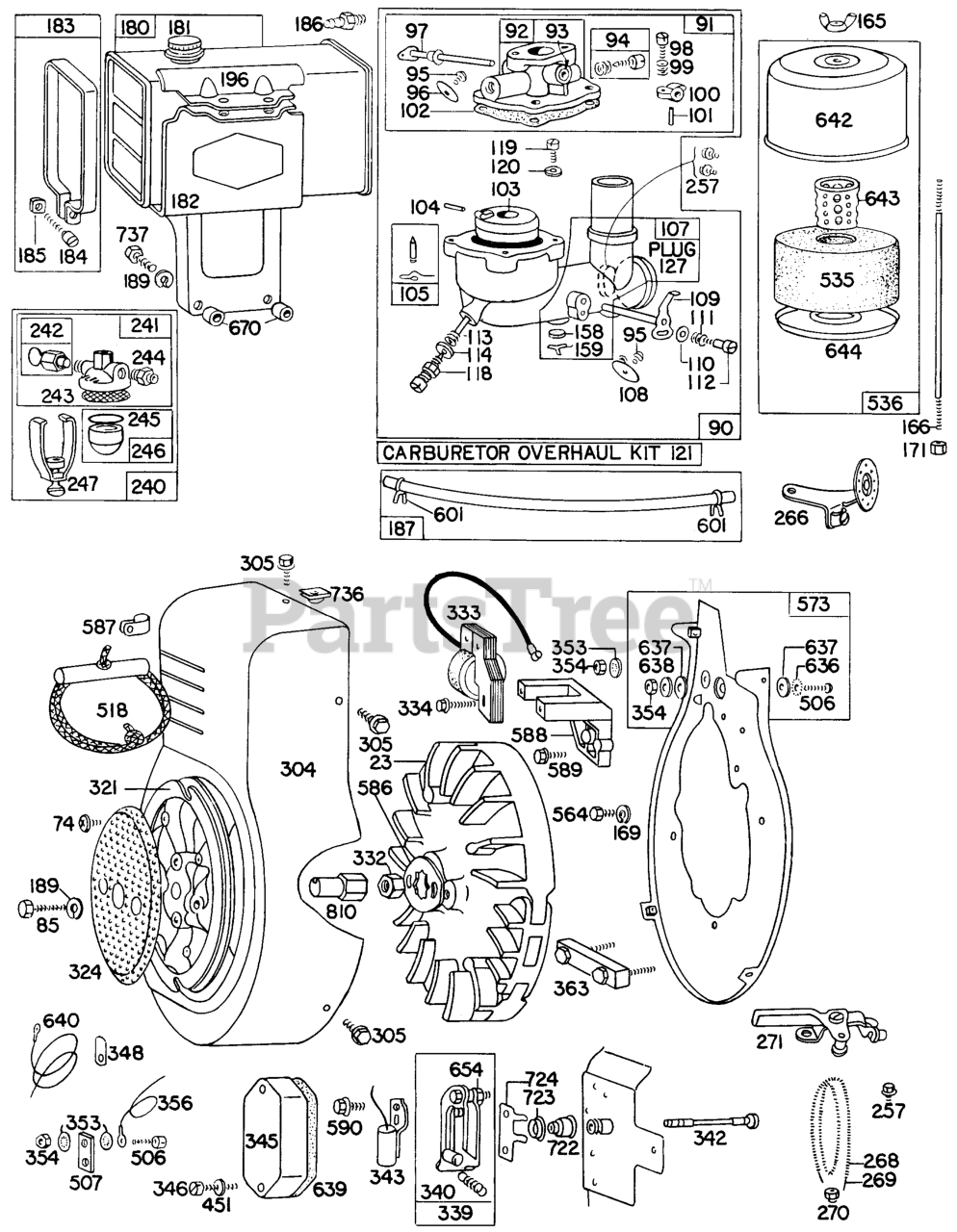

Carb,FuelTank,A/C,BlowerHsg Parts Diagram

  • Title
23

Briggs & Stratton 298975

Flywheel-Magneto

$155.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93521

Screw,screen Mtg
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 91386

Screw, Hex Head Cap (2" Long)
(Superseded to 691076)

$3.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 299353

Carburetor Assembly (Not available-Use Part No. 391065)
(Superseded to 391065)

$371.99

$

In Stock, only 1 left!

0

91

Briggs & Stratton 299687

Body Assy.-Upper Carburetor

$

$

Not available

92

Briggs & Stratton 299357

Body-Upper Carburetor
(Superseded to 299687)

$

$

Not available

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve-Idle Mixture

Note: Included in Carburetor Overhaul Kit-Part No. 299720

$11.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93038

Screw-Throttle Valve Mounting Sem
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 221939

Valve-Throttle
(Superseded to 691727)

$6.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 298535

Shaft-Throttle
(Superseded to 691944)

$39.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 61967

Stop-Throttle Lever
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin-Throttle Stop And Governor Shaft
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 270268

Gasket-Carburetor Body
(Superseded to 692215)

Note: Included in Carburetor Overhaul Kit-Part No. 299720

$5.49

$

In Stock, Qty 8

0

103

Briggs & Stratton 298514

Float-Carburetor
(Superseded to 692265)

$11.99

$

In Stock, Qty 7

0

104

Briggs & Stratton 230896

Pin-Hinge
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 299720

$3.99

$

In Stock, only 4 left!

0

105

Briggs & Stratton 299096

Valve-Fuel Inlet
(Superseded to 394681)

Note: Included in Carburetor Overhaul Kit-Part No. 299720

$7.99

$

In Stock, Qty 19

0

107

Briggs & Stratton 391066

Body Assy.-Lower Carburetor
(Superseded to 391069)

$103.99

$

Usually ships in 2-12 days

0

108

$

$

Not available

109

Briggs & Stratton 298534

Shaft And Lever-Choke
(Superseded to 691353)

$29.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 62899

Washer-Thermostat
(Superseded to 691186)

$4.99

$

Usually ships in 2-12 days

0

112

Briggs & Stratton 23123

Screw-Shoulder
(Superseded to 691587)

$6.49

$

In Stock, Qty 5

0

113

Briggs & Stratton 299518

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 299720

$29.99

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 68667

Washer, Fiber (Viton Seat)
(Superseded to 691610)

Note: Included in Carburetor Overhaul Kit-Part No. 299720

$6.49

$

In Stock, Qty 12

0

118

Briggs & Stratton 99525

Valve-Needle
(Superseded to 99525S)

Note: Included in Carburetor Overhaul Kit-Part No. 299720

$12.99

$

In Stock, Qty 5

0

119

Briggs & Stratton 90746

Screw, Machine Fill (10-32 X 5/8")
(Superseded to 690278)

$3.99

$

In Stock, only 1 left!

0

120

Briggs & Stratton 92290

Lockwasher, Zinc Pl
(Superseded to 690286)

$3.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 299720

Carburetor Overhaul Kit

$46.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 221747

Plug-Welch
(Superseded to 690627)

Note: Included in Carburetor Overhaul Kit-Part No. 299720

$5.49

$

In Stock, only 2 left!

0

158

Briggs & Stratton 27590

Filter-Carburetor Drin

$6.49

$

Usually ships in 2-12 days

0

159

Briggs & Stratton 220521

Retainer-Carb Drain

$

$

Not available

165

Briggs & Stratton 93453

Nut, Wing
(Superseded to 691331)

$5.99

$

In Stock, Qty 9

0

165

$

$

Not available

166

Briggs & Stratton 230768

Stud-Air Cl (9-1/4" Long)

$

$

Not available

169

Briggs & Stratton 90832

Washer-Lock
(Superseded to 22097GS)

$3.49

$

Usually ships in 2-12 days

0

171

Briggs & Stratton 92129

Nut, Hex Mach (1/4-28)
(Superseded to 690284)

$2.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 291488

Tank-Fuel (Metal)

$128.99

$

In Stock, only 4 left!

0

181

Briggs & Stratton 69221

Cap-Fuel Tank Metal (1-3/4" O.d. Top)
(Superseded to 791545)

$11.99

$

In Stock, only 4 left!

0

182

Briggs & Stratton 22813

Bracket, Tank (8 Quart) (Remote Mount Only)
(Superseded to 690262)

$41.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 291490

Strap, Tank Assy (6 Quart)
(Superseded to 691937)

$33.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 91257

Screw, Machine Fill (1/4-20 X 1-1/2")
(Superseded to 690280)

$3.99

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 90970

Nut, Square (1/4-20)
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 230318

Connector, Fuel
(Superseded to 691764)

$14.99

$

In Stock, Qty 5

0

187

Briggs & Stratton 296004

Line-Fuel (23" Cut To Length)
(Superseded to 791745)

$10.99

$

In Stock, Qty 8

0

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

196

Briggs & Stratton 22907

Support, Tank (8 Quart) (Remote Mount Only)
(Superseded to 691068)

$25.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 295984

Carburetor (Used With Flexible Fuel Pipe)
(Superseded to 690612)

$

$

Not available

241

Briggs & Stratton 296005

Fuel Filter Cover
(Superseded to 690612)

$

$

Not available

242

Briggs & Stratton 295913

Valve-Shut
(Superseded to 690612)

$

$

Not available

243

Briggs & Stratton 22547

Screen-Fuel Filter
(Superseded to 691962)

$4.99

$

In Stock, Qty 5

0

244

Briggs & Stratton 230318

Connector, Fuel
(Superseded to 691764)

$14.99

$

In Stock, Qty 5

0

245

Briggs & Stratton 68477

Gasket-Fuel Filter Bowl
(Superseded to 692190)

Note: Included in Gasket Set-Part No. 299719

$4.99

$

In Stock, Qty 7

0

246

Briggs & Stratton 298683

Bowl-Fuel Filter

$14.99

$

In Stock, only 1 left!

0

247

Briggs & Stratton 99665

Yoke-Fuel Filter
(Superseded to 691700)

$22.99

$

Usually ships in 2-12 days

0

257

Briggs & Stratton 22372

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, Qty 6

0

257

Briggs & Stratton 93107

Screw-Slotted

$4.99

$

Usually ships in 2-12 days

0

257

Briggs & Stratton 93543

Screw, Sem Hex Head (10-32 X 3/8")
(Superseded to 691082)

$4.99

$

In Stock, only 3 left!

0

266

Briggs & Stratton 299361

Control-Throttle (Disc Type)

$38.99

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 65616

Casing, Wire (72", Cut To Required Length)
(Superseded to 691025)

Note: If longer casing is required, specify length in inches; if shorter casing is needed, order No. 65616 and cut to required length.

$

$

Not available

269

Briggs & Stratton 26633

Wire, Control (78" Cut To Required Length)
(Superseded to 691026)

Note: If longer wire is required, specify length in inches; if shorter wire is needed, order No. 26633 and cut to required length

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 294698

Housing-Blower

$209.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 10

0

321

Briggs & Stratton 211555

Fan-Booster
(Superseded to 691151)

$179.99

$

Usually ships in 2-12 days

0

324

Briggs & Stratton 221851

Screen-Rotating
(Superseded to 691171)

$43.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 230674

Nut-Hex.
(Superseded to 691059)

$4.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 298968

Armature-Mag (For Breaker Ignition)

$

$

Not available

334

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

339

Briggs & Stratton 298185

Breaker-Ignition

$40.99

$

In Stock, only 1 left!

0

340

Briggs & Stratton 26018

Spring-Breaker Arm

$7.49

$

In Stock, only 1 left!

0

342

Briggs & Stratton 298125

Plunger-Contact
(Superseded to 298125S)

$47.99

$

Usually ships in 2-12 days

0

343

$14.99

$

In Stock, only 4 left!

0

345

Briggs & Stratton 211327

Cover-Breaker

$

$

Not available

346

Briggs & Stratton 93400

Screw-Slotted
(Superseded to 692836)

$3.99

$

Usually ships in 2-12 days

0

348

$2.49

$

Usually ships in 2-12 days

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

Usually ships in 2-12 days

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

356

Briggs & Stratton 295413

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19068

Puller-Flywheel (Optional Accessory)

$

$

Not available

451

Briggs & Stratton 90364

Lockwasher, Zinc Pl
(Superseded to 690277)

$3.99

$

Usually ships in 2-12 days

0

506

Briggs & Stratton 90072

Screw-Slotted (8-32 X 5/8")

$4.49

$

In Stock, Qty 20+

0

507

Briggs & Stratton 66895

Insulator-Terminal

$4.99

$

In Stock, only 2 left!

0

518

Briggs & Stratton 69932

Rope/Grip Assy (55")
(Superseded to 69932S)

$9.49

$

In Stock, Qty 5

0

535

$19.99

$

In Stock, only 4 left!

0

536

$16.99

$

Usually ships in 2-12 days

0

564

Briggs & Stratton 92980

Screw, Hex Head Cap (1/4-20 X 1/2")
(Superseded to 690290)

$3.49

$

Usually ships in 2-12 days

0

573

$96.99

$

Usually ships in 2-12 days

0

586

Briggs & Stratton 22906

Retainer
(Superseded to 690265)

$4.99

$

Usually ships in 2-12 days

0

587

Briggs & Stratton 220509

Clip-Wire
(Superseded to 690389)

$3.99

$

Usually ships in 2-12 days

0

588

Briggs & Stratton 211440

Bracket-Armature Mtg.

$18.99

$

Usually ships in 2-12 days

0

589

Briggs & Stratton 93473

Screw-Slotted
(Superseded to 7091286YP)

$4.99

$

In Stock, Qty 17

0

590

Briggs & Stratton 93171

Screw-Slotted Hex.
(Superseded to 690294)

$3.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

636

$4.49

$

Usually ships in 2-12 days

0

637

$1.49

$

Usually ships in 2-12 days

0

638

$5.99

$

Usually ships in 2-12 days

0

639

Briggs & Stratton 270176

Gasket-Breaker Cover
(Superseded to 692913)

Note: Included in Gasket Set-Part No. 299719

$9.49

$

In Stock, only 4 left!

0

640

Briggs & Stratton 298141

Lead-Primary
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

642

Briggs & Stratton 221468

Cover-Air Cleaner

$58.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 280001

Spacer-Air Cleaner

$

$

Not available

644

Briggs & Stratton 221755

Base-Air Cleaner

$4.99

$

Usually ships in 2-12 days

0

$6.49

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 230900

Spacer, Mounting (2)
(Superseded to 690505)

$8.99

$

Usually ships in 2-12 days

0

722

$19.99

$

In Stock, only 1 left!

0

723

Briggs & Stratton 93516

Retainer-Seal

$2.99

$

Usually ships in 2-12 days

0

724

Briggs & Stratton 221873

Retainer-Seal

$9.49

$

Usually ships in 2-12 days

0

736

Briggs & Stratton 93542

Nut-Hex.
(Superseded to 690302)

$5.49

$

Usually ships in 2-12 days

0

737

Briggs & Stratton 93546

Screw, Hex Head Cap (5/16-18 X 1-1/4")
(Superseded to 690303)

$4.99

$

Usually ships in 2-12 days

0

810

$34.99

$

Usually ships in 2-12 days

0
