30069 - Toro Walk-Behind Mower, Pistol-Grip, Hydro Drive, 18hp (SN: 314000001 - 314999999) (2014) CONTROL HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower, Pistol-Grip, Hydro Drive, 18hp

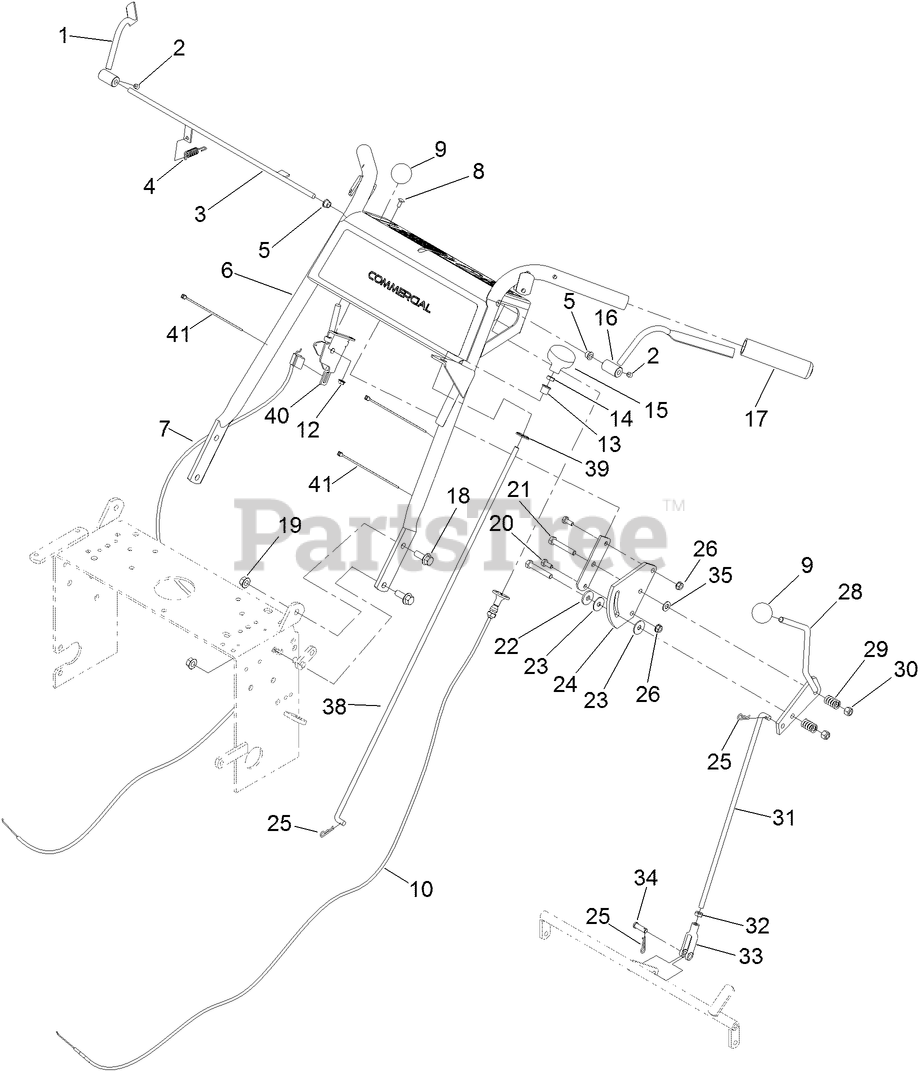

CONTROL HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 106-5486

RH OPERATOR PRESENCE CONTROL LEVER ASM

$63.99

$

Usually ships in 3-6 days

0

2

Toro 1-803322

SCREW-SET

$1.49

$

In Stock, Qty 20+

0

3

Toro 106-2717-03

ROD-CONTROL, OPERATOR PRESENCE

$67.99

$

Usually ships in 3-6 days

0

4

Toro 1-303363

SPRING-EXTENSION

$6.99

$

In Stock, Qty 9

0

5

Toro 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 20+

0

6

Toro 119-6671

HANDLE ASM

$691.99

$

Usually ships in 3-6 days

0

7

Toro 119-6680

CABLE-CONTROL

$83.99

$

Usually ships in 3-6 days

0

8

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

9

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, Qty 6

0

10

Toro 119-6679

CONTROL, CHOKE

$123.99

$

Usually ships in 3-6 days

0

12

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 20+

0

13

Toro 1-323143

Bearing-Nylon

$6.99

$

In Stock, only 4 left!

0

14

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

15

Toro 1-323134

Knob-Push / Pull

$29.99

$

In Stock, only 2 left!

0

16

Toro 106-5485

LH OPERATOR PRESENCE CONTROL LEVER ASM

$67.99

$

Usually ships in 3-6 days

0

17

Toro 104-9838

GRIP-FOAM

$6.49

$

In Stock, Qty 20+

0

18

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

19

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

20

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 1-603716

Washer-Friction

$5.49

$

In Stock, Qty 20+

0

23

Toro 1-323244

Washer-Friction
(Superseded to 93-1633)

$2.99

$

In Stock, Qty 14

0

24

Toro 1-603730

PLATE-LEVER, SHIFTER

$39.99

$

Usually ships in 3-6 days

0

25

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

26

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Toro 106-2748

LEVER-SHIFT

$119.99

$

In Stock, only 2 left!

0

29

Toro 1-323245

SPRING-COMPRESSION

$6.99

$

In Stock, Qty 20+

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 1-323522

Rod-Control, Speed

$15.99

$

Usually ships in 3-6 days

0

32

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

33

Toro 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 2 left!

0

34

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

35

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

38

Toro 1-323181

Linkage-Blade

$129.99

$

Usually ships in 3-6 days

0

39

Toro 1-323142

NUT-PUSH

$2.99

$

In Stock, only 2 left!

0

40

Toro 110-5547

LEVER-CONTROL

$42.99

$

In Stock, Qty 5

0

41

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
