30070 - Toro 91cm Walk-Behind Mower, T-Bar, Gear Drive, 16hp (SN: 311000001 - 311999999) (2011) FUEL SYSTEM ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Gear Drive, 16hp

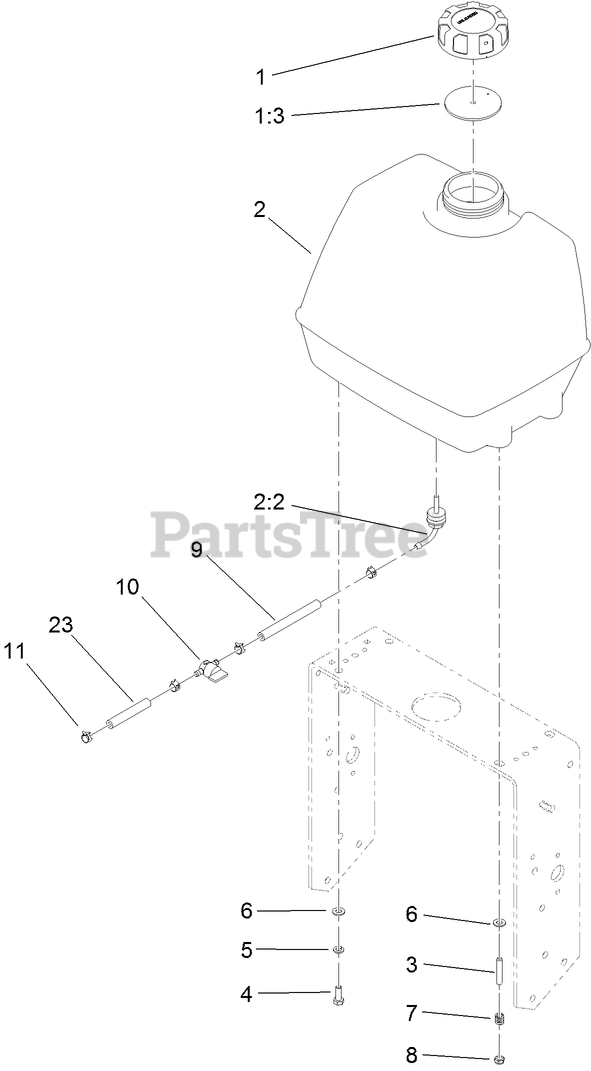

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 88-3980

GAS CAP ASM

$35.99

$

In Stock, Qty 20+

0

1:3

Toro 88-4010

GASKET-CAP, GAS

$37.99

$

In Stock, Qty 7

0

2

Toro 106-0730

FUEL TANK ASM

$

$

Not available

2:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$38.99

$

In Stock, only 4 left!

0

3

Toro 104-8121

STUD-THREADED

$

$

Not available

4

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 12

0

8

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 109-0650

HOSE-FUEL

$8.49

$

Usually ships in 3-6 days

0

10

Toro 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

11

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

23

Toro 99-9415

HOSE-FUEL

$3.99

$

In Stock, only 4 left!

0
