30072 - Toro 32" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 311000001 - 311999999) (2011) DECK ASSEMBLY Parts Diagram

32" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

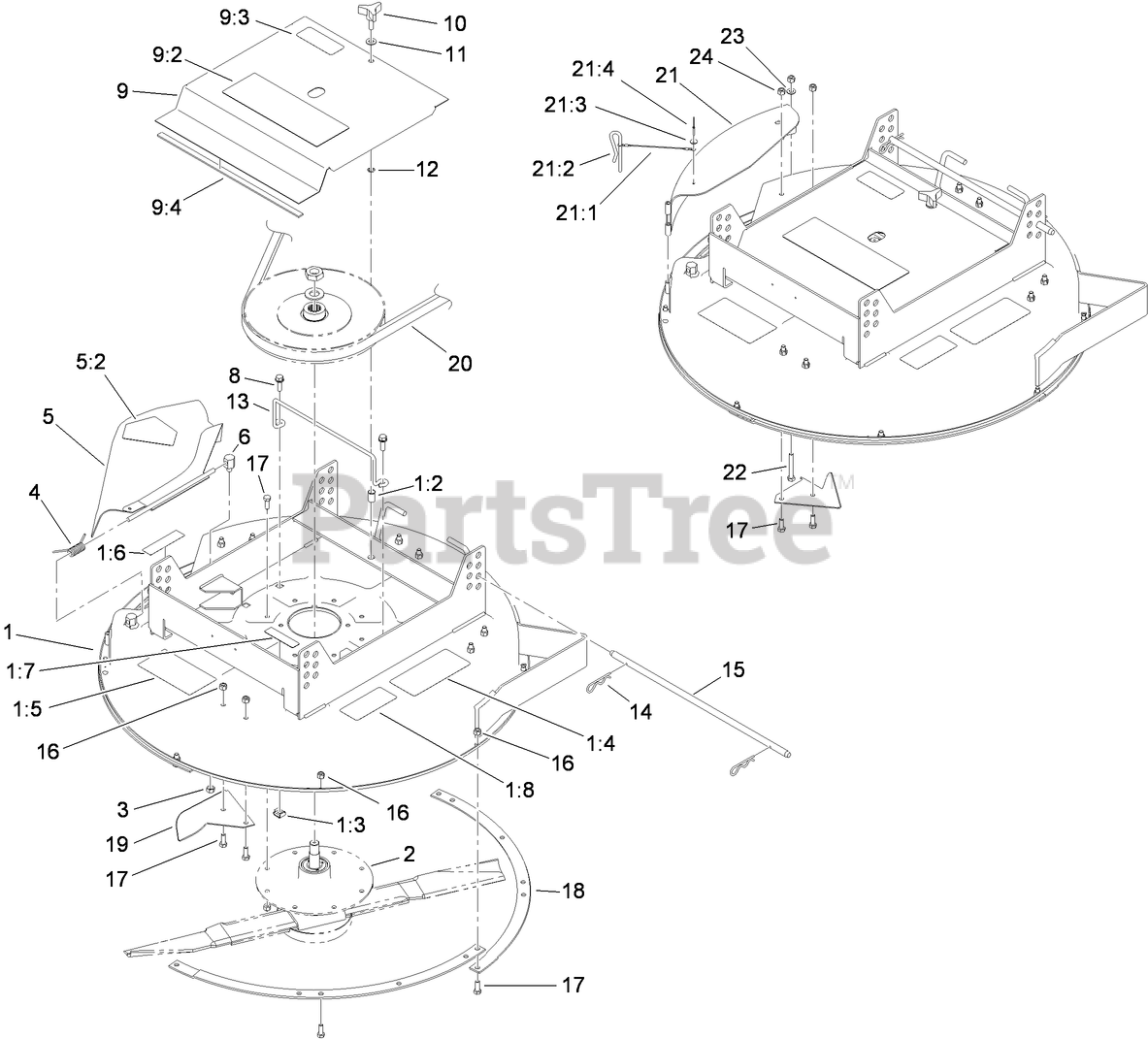

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 14-5079

32 INCH DECK ASM

$

$

Not available

1:2

Toro 32148-10

INSERT-NUT

$8.49

$

Usually ships in 3-6 days

0

1:3

Toro 3290-496

NUT-RETAINER

$6.49

$

In Stock, Qty 8

0

1:4

Toro 93-1159

DECAL-HOC

$

$

Not available

1:5

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

1:6

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

1:7

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

1:8

Toro 68-8340

DECAL-TORQUE

$19.99

$

In Stock, only 3 left!

0

2

SPINDLE ASM

Note: Not serviced separately

$

$

Not available

3

Toro 32153-2

NUT-LOCK, SIDE

$0.99

$

In Stock, Qty 20+

0

4

Toro 28-8010

SPRING

$20.99

$

Usually ships in 3-6 days

0

5

Toro 44-5930

DEFLECTOR ASM

$164.99

$

Usually ships in 3-6 days

0

5:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

6

Toro 28-7350

POST-PIVOT

$33.99

$

Usually ships in 3-6 days

0

8

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 12

0

9

Toro 119-7888

BELT COVER

$193.99

$

Usually ships in 3-6 days

0

9:2

Toro 106-0710

DECAL

$36.99

$

Usually ships in 3-6 days

0

9:3

Toro 54-0910

DECAL-HOT

$16.99

$

Usually ships in 3-6 days

0

9:4

Toro 67-6180

STRIP-MAGNETIC

$30.99

$

Usually ships in 3-6 days

0

10

Toro 104-8587

KNOB

$18.99

$

In Stock, only 2 left!

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 8

0

13

Toro 74-0570

GUIDE-BELT

$66.99

$

Usually ships in 3-6 days

0

14

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

15

Toro 67-6140

ROD-SUPPORT

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 92-5419-03

RING-RECYCLER

$22.99

$

Usually ships in 3-6 days

0

19

Toro 80-2630-03

KICKER

$31.99

$

In Stock, only 4 left!

0

20

Toro 67-6920

V-BELT

$67.99

$

In Stock, only 1 left!

0

21

Toro 92-5422

MULCHER COVER ASM

$354.99

$

Usually ships in 3-6 days

0

21:1

Toro 28-8070

LANYARD

$15.99

$

Usually ships in 3-6 days

0

21:2

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

In Stock, only 2 left!

0

21:3

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

21:4

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 12

0

22

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
