30072 - Toro 32" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 311000001 - 311999999) (2011) HANDLE ASSEMBLY Parts Diagram

32" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

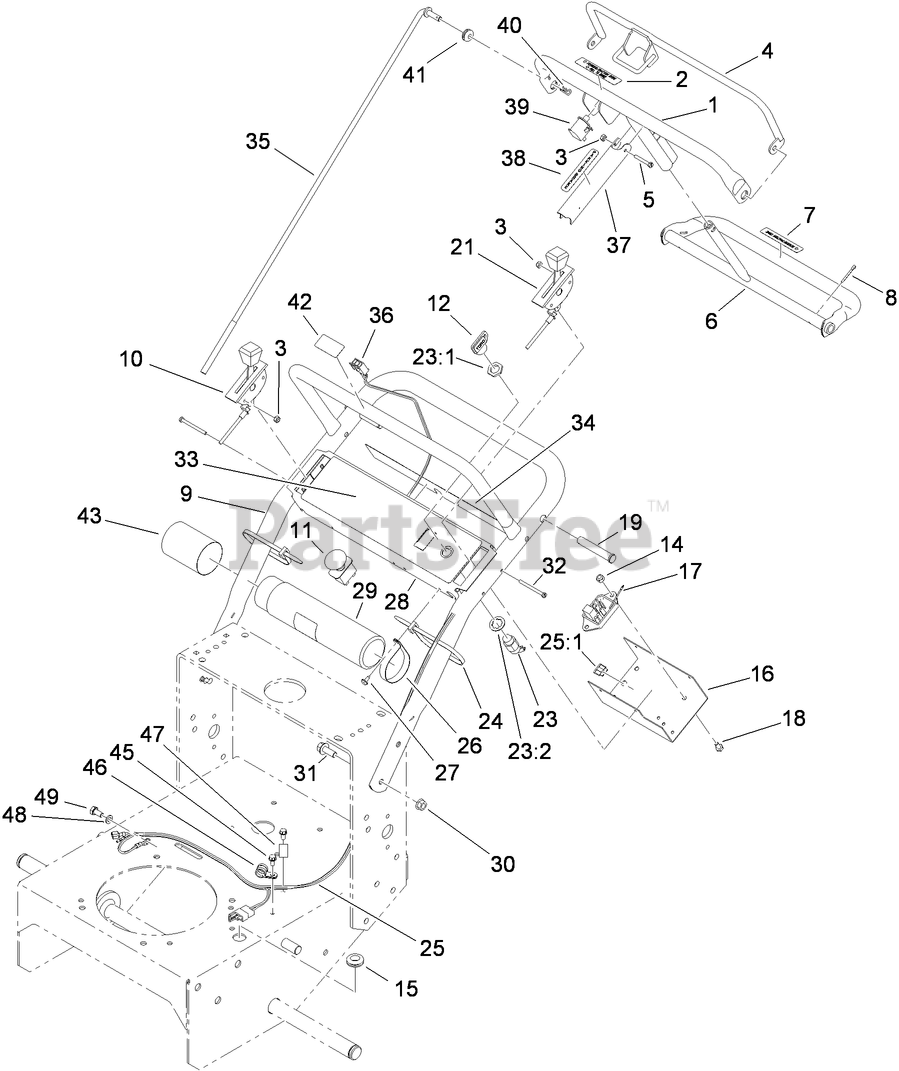

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 82-7690-03

BAR-CONTROL

$273.99

$

Usually ships in 3-6 days

0

2

Toro 82-2290

DECAL

$11.99

$

Usually ships in 3-6 days

0

3

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 82-7680-03

BAIL

$148.99

$

Usually ships in 3-6 days

0

5

Toro 32105-1

SCREW-SHH

$1.49

$

In Stock, Qty 8

0

6

Toro 106-5477-03

PIVOT-CONTROL

$196.99

$

Usually ships in 3-6 days

0

7

Toro 82-2280

DECAL

$9.49

$

In Stock, only 1 left!

0

8

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

9

Toro 105-3158-03

HANDLE-UPPER

$252.99

$

Usually ships in 3-6 days

0

10

Toro 110-4995

CABLE-CHOKE

$84.99

$

Usually ships in 3-6 days

0

11

Toro 104-8140

SWITCH-PTO

$77.99

$

In Stock, only 1 left!

0

12

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 237-124

GROMMET

$2.99

$

In Stock, only 3 left!

0

16

Toro 93-1187-03

PANEL-BOTTOM

$48.99

$

Usually ships in 3-6 days

0

17

Toro 104-8141

MODULE-DELAY

$65.99

$

In Stock, Qty 11

0

18

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

19

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 9

0

21

Toro 119-6539

CABLE-THROTTLE

$78.99

$

In Stock, only 3 left!

0

23

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

23:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 17

0

23:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 12

0

24

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

25

Toro 119-6508

HARNESS-WIRE

$261.99

$

Usually ships in 3-6 days

0

25:1

Toro 114241

FUSE-BLADE, 7.5 AMP

$11.99

$

Usually ships in 3-6 days

0

26

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

27

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 110-4982-03

PANEL-CONTROL

$119.99

$

Usually ships in 3-6 days

0

29

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

30

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

31

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 16

0

32

Toro 32105-14

SCREW-SHH

$2.99

$

Usually ships in 3-6 days

0

33

Toro 110-4971

DECAL-PANEL, CONTROL

$28.99

$

Usually ships in 3-6 days

0

34

Toro 105-0884

DECAL-DANGER

$15.99

$

Usually ships in 3-6 days

0

35

Toro 82-7632

ROD-CONTROL

$63.99

$

In Stock, only 2 left!

0

36

Toro 218-595

CONNECTOR-BODY

$

$

Not available

37

Toro 51-4850-03

LEVER-BRAKE, PARKING

$38.99

$

In Stock, only 1 left!

0

38

Toro 52-2010

DECAL-LEVER, PARKING

$5.49

$

Usually ships in 3-6 days

0

39

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

40

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

41

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0

42

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

43

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

45

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

46

Toro 2412-134

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

47

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

48

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

49

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 8

0
