30074 - Toro 36" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 310000001 - 310999999) (2010) CONTROL PANEL ASSEMBLY Parts Diagram

36" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

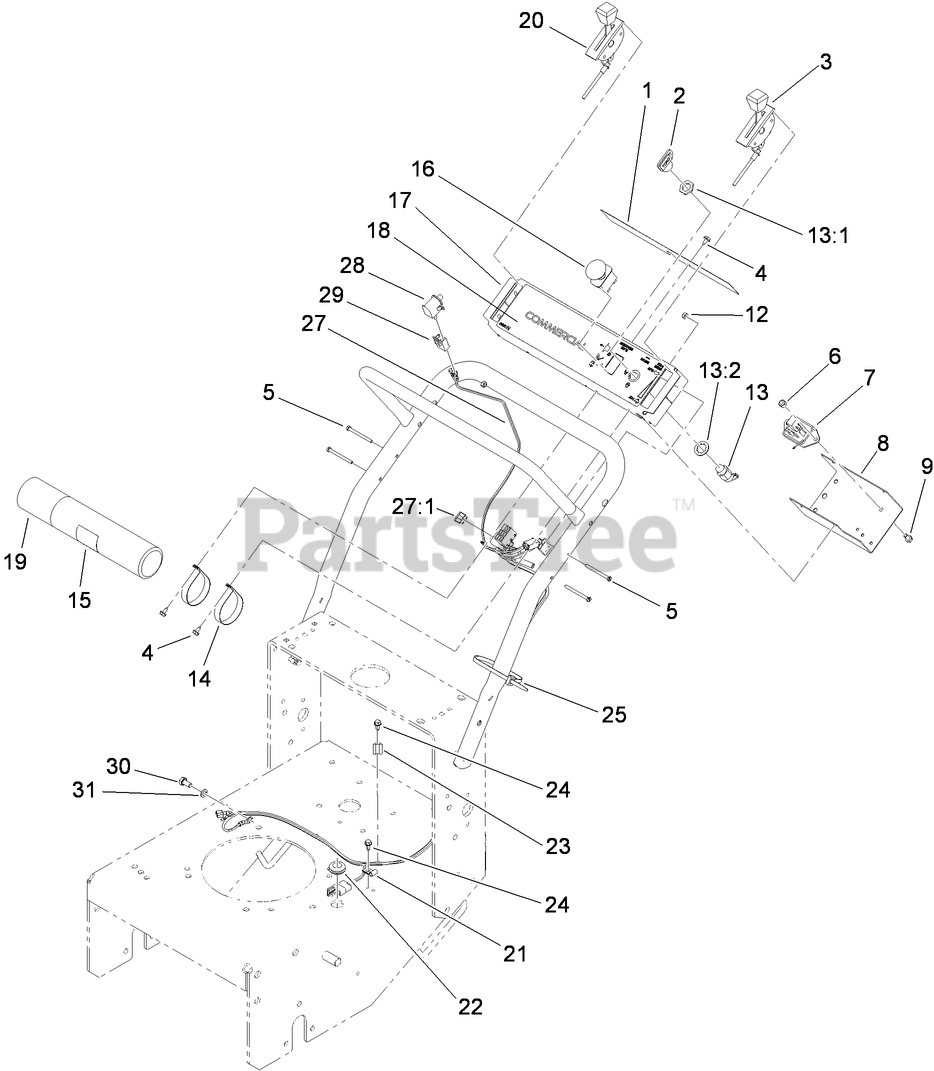

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 105-0884

DECAL-DANGER

$18.99

$

Usually ships in 3-6 days

0

2

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

3

Toro 119-6539

CABLE-THROTTLE

$91.99

$

In Stock, only 3 left!

0

4

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

5

Toro 32105-14

SCREW-SHH

$3.99

$

Usually ships in 3-6 days

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 104-8141

MODULE-DELAY

$72.99

$

In Stock, Qty 8

0

8

Toro 93-1187-03

PANEL-BOTTOM

$53.99

$

Usually ships in 3-6 days

0

9

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

12

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

13

Toro 29-5560

SWITCH-ON / OFF

$18.99

$

In Stock, only 4 left!

0

13:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

13:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 8

0

14

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

15

Toro 104-7050

TUBE-MANUAL

$9.99

$

Usually ships in 3-6 days

0

16

Toro 104-8140

SWITCH-PTO

$85.99

$

In Stock, only 4 left!

0

17

Toro 110-4982-03

PANEL-CONTROL

$133.99

$

Usually ships in 3-6 days

0

18

Toro 110-4971

DECAL-PANEL, CONTROL

$34.99

$

Usually ships in 3-6 days

0

19

Toro 104-7048

CAP-HOUSING

$6.49

$

In Stock, only 1 left!

0

20

Toro 110-4995

CABLE-CHOKE

$98.99

$

Usually ships in 3-6 days

0

21

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

22

Toro 112-7069

GROMMET

$3.99

$

Usually ships in 3-6 days

0

23

Toro 2412-134

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

24

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 11

0

25

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

27

Toro 119-6508

HARNESS-WIRE

$288.99

$

Usually ships in 3-6 days

0

27:1

Toro 114241

FUSE-BLADE, 7.5 AMP

$12.99

$

Usually ships in 3-6 days

0

28

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 6

0

29

Toro 218-595

CONNECTOR-BODY

$

$

Not available

30

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

31

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0
