30074 - Toro 36" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 313000001 - 313999999) (2013) DECK DRIVE AND BAFFLE ASSEMBLY Parts Diagram

36" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

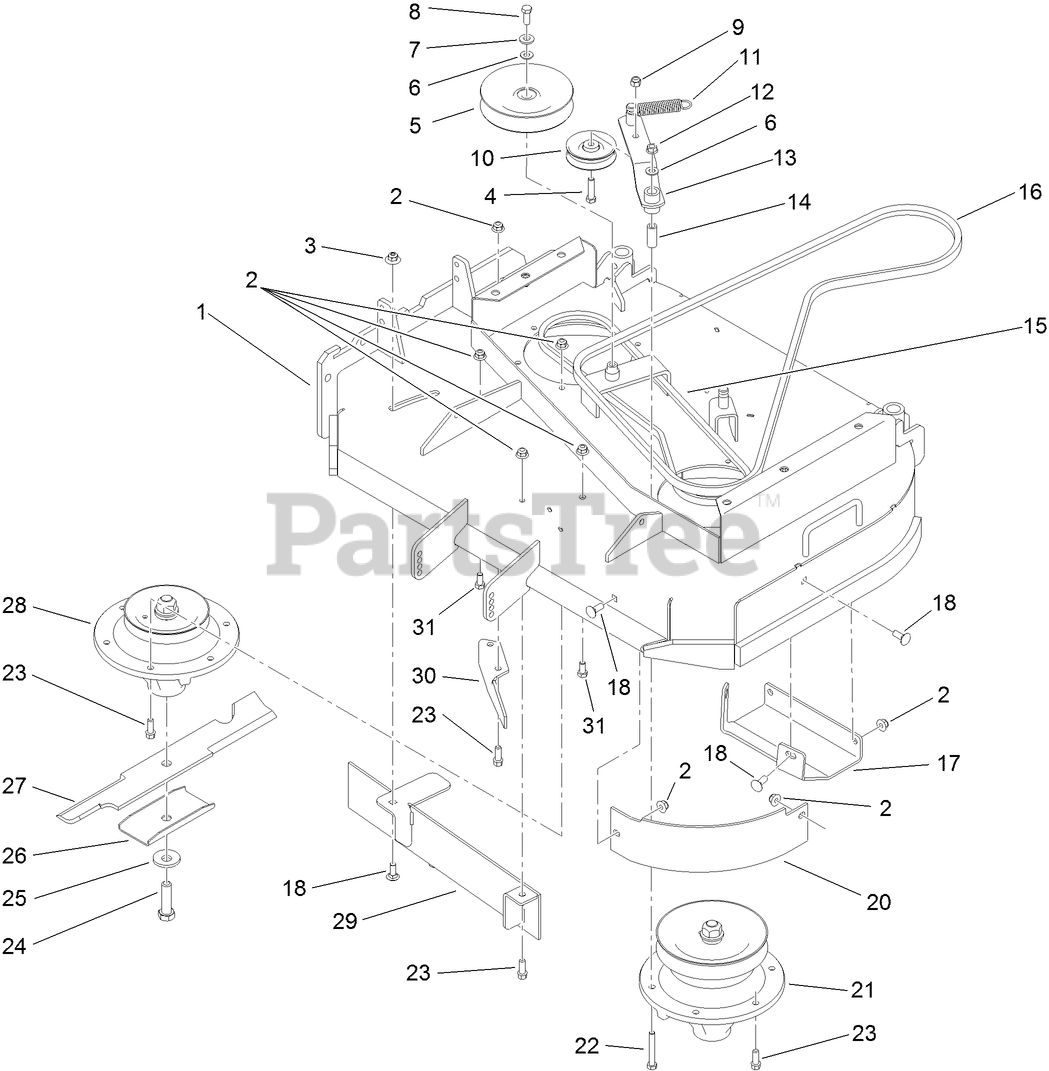

DECK DRIVE AND BAFFLE ASSEMBLY Parts Diagram

  • Title

1

Toro 112-7080

DECK ASM

$3994.99

$

Usually ships in 3-6 days

0

2

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 1-633166

PULLEY-IDLER

$63.99

$

In Stock, Qty 20+

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

8

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 51-3660

PULLEY-IDLER

$43.99

$

In Stock, only 2 left!

0

11

Toro 105-2673

SPRING-EXTENSION

$30.99

$

Usually ships in 3-6 days

0

12

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

13

Toro 105-0889

IDLER ARM ASM

$172.99

$

Usually ships in 3-6 days

0

14

Toro 51-3641

SLEEVE-PIVOT, IDLER

$21.99

$

In Stock, only 2 left!

0

15

Toro 110-6953

BELT-V

$63.99

$

In Stock, only 2 left!

0

16

Toro 110-6954

BELT-V

$120.99

$

In Stock, only 2 left!

0

17

Toro 110-2037-01

PLATE-SKID

$94.99

$

Usually ships in 3-6 days

0

18

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

20

Toro 110-6903-03

BAFFLE-FRONT, LH

$77.99

$

Usually ships in 3-6 days

0

21

Toro 110-0730

SPINDLE ASM

$738.99

$

Usually ships in 3-6 days

0

22

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 7

0

23

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

24

Toro 51-4060

SCREW-BLADE

$8.49

$

In Stock, Qty 12

0

25

Toro 103-0865

Washer-Blade Bolt, Heavy

$6.49

$

In Stock, Qty 20+

0

26

Toro 108-2727

STIFFENER-BLADE

$37.99

$

In Stock, only 2 left!

0

27

Toro 105-7781-03

BLADE-18IN, HI FLOW

$26.99

$

In Stock, Qty 14

0

28

Toro 110-0728

SPINDLE ASM

$599.99

$

Usually ships in 3-6 days

0

29

Toro 121-1779-03

BAFFLE

$103.99

$

Usually ships in 3-6 days

0

30

Toro 110-0754-01

BAFFLE-DISCHARGE

$42.99

$

Usually ships in 3-6 days

0

31

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0
