3008 (1690115) - Simplicity Broadmoor Lawn Tractor Rear Wheels & Hitch Group (2932I08) Parts Diagram

Broadmoor Lawn Tractor

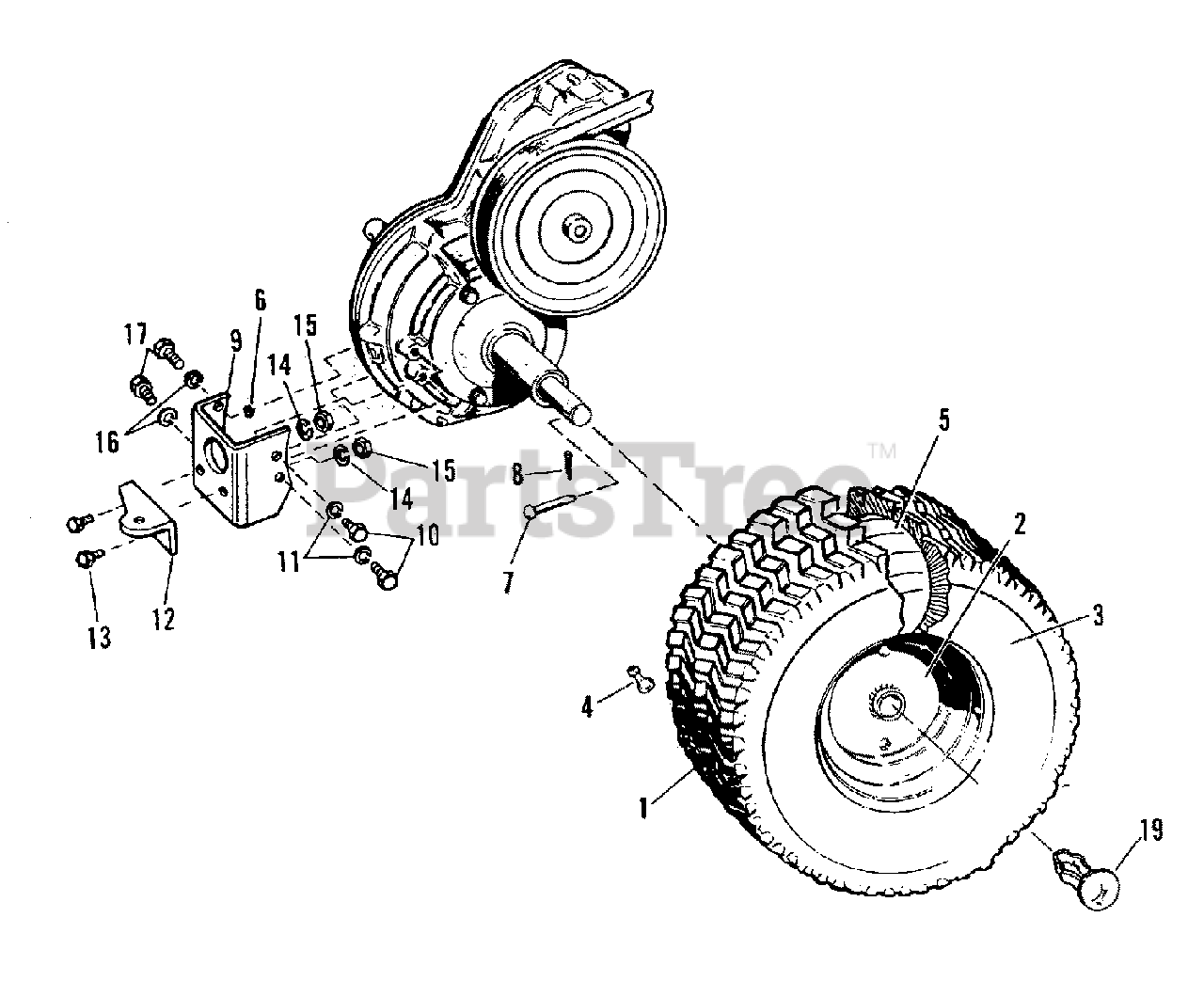

Rear Wheels & Hitch Group (2932I08) Parts Diagram

  • Title

1

Simplicity 171862

WHEEL & TIRE ASSEMBLY, R.H.

$

$

Not available

2

Simplicity 171763

WHEEL ASSEMBLY, R.H.

$

$

Not available

3

Simplicity 2159156

TIRE

$

$

Not available

4

Simplicity 2171270

VALVE STEM & CAP

$

$

Not available

5

Simplicity 2153038SM

TUBE

$35.99

$

In Stock, only 2 left!

0

6

Simplicity 2817642

WASHER, Plain, 5/16"

$

$

Not available

7

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

8

Simplicity 2818451

PIN, Cotter, 1/8" x 3/4" ig.

$

$

Not available

9

Simplicity 1652302

BRACKET, Draw Bar

$

$

Not available

10

Simplicity 2821965

CAPSCREW, Hex, 3/8"-16 x 3/4" ig.

$

$

Not available

11

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

12

Simplicity 1652303

CLIP, Draw Bar Hitch

$

$

Not available

13

Simplicity 2825204

CAPSCREW, 3/8"-16 x 1" Ig.

$

$

Not available

14

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

15

Simplicity 2816950SM

NUT, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 10

0

16

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 2821221

CAPSCREW, 5/16"-18 x 1-1/4" Ig.

$

$

Not available

18

Simplicity 158436

BUTTON, Plug, R.H.

$

$

Not available

19

Simplicity 158433

BUTTON, Plug, L.H.

$

$

Not available

20

Simplicity 171851

WHEEL & TIRE ASSEMBLY, L.H.

$

$

Not available

21

Simplicity 171850

WHEEL ASSEMBLY, L.H.

$

$

Not available
