3008-2 (1690129) - Simplicity Grabber 30" Rear-Engine Riding Mower Engine, Seat & Rear Wheels Group Parts Diagram

Grabber 30" Rear-Engine Riding Mower

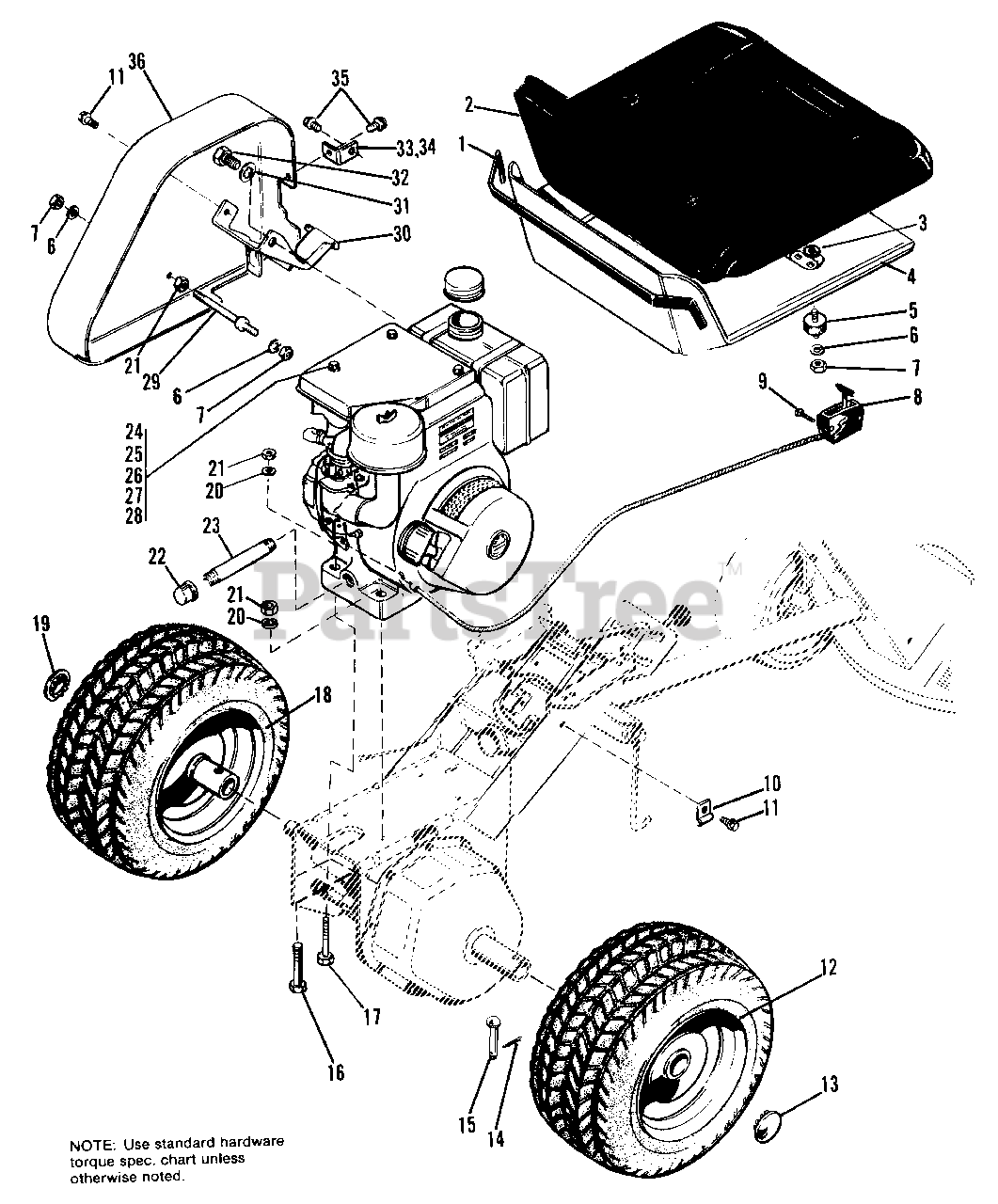

Engine, Seat & Rear Wheels Group Parts Diagram

  • Title

1

Simplicity 159177

TAPE, 2 ft.

$

$

Not available

2

Simplicity 1610429

PAD, Seat

$

$

Not available

3

Simplicity 2819381

WASHER, Plain, 5/16

Note: Used on Mfg. No. 991020 only.

$

$

Not available

4

Simplicity 1610362

PANEL, Seat

$

$

Not available

5

Simplicity 2157094SM

CONNECTOR, Cushion

$11.99

$

Usually ships in 2-12 days

0

6

Simplicity 1917356SM

LOCKWASHER, 5/16 (Qty. 6 used on 991020)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18 (Qty. 6 used on 991020)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1608962

CONTROL ASSY., Throttle

$

$

Not available

9

Simplicity 2828732

SCREW, Taptite, #10-24 x 1

$

$

Not available

10

Simplicity 2826271SM

CLIP

$

$

Not available

11

Simplicity 2824856

SCREW, Taptite, 5/16-18 x 1/2

$

$

Not available

12

Simplicity 1608918

WHEEL & TIRE ASSY., Rear, R.H.

$

$

Not available

13

Simplicity 158436

BUTTON, Plug

$

$

Not available

14

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

15

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

16

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

In Stock, only 2 left!

0

17

Simplicity 2156151

CAPSCREW, Special

$

$

Not available

18

Simplicity 1608919

WHEEL & TIRE ASSY., Rear, L.H.

$

$

Not available

19

Simplicity 158433

BUTTON, Plug

$

$

Not available

20

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

21

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

22

Simplicity 2801752

CAP, Pipe

$

$

Not available

23

Simplicity 901496

NIPPLE, Pipe

$

$

Not available

24

Simplicity 2827428

SCREW, Taptite, Hex, 1/4-20 x 3/8

$

$

Not available

25

Simplicity 2819316

CAPSCREW, Hex Hd., 1/4-20 x 1-3/4

$

$

Not available

26

Simplicity 1608963

SHIELD, Heat

$

$

Not available

27

Simplicity 1608980

SUPPORT, Heat Shield

$

$

Not available

28

Simplicity 1608994

SPACER

$

$

Not available

29

Simplicity 158418

STUD

$

$

Not available

30

Simplicity 1609443

STOP, Belt

$

$

Not available

31

Simplicity 2809589

LOCKWASHER, Int. 1/2

$

$

Not available

32

Simplicity 2824086

CAPSCREW, Hex, 1/2-20 x 3/4

$

$

Not available

33

Simplicity 176611

BRACKET, Pulley Guard

Note: Used on Mfg. No. 991020 only.

$

$

Not available

34

Simplicity 1609444

BRACKET, Pulley Guard

Note: Used on Mfg. No. 1690128 only.

$

$

Not available

35

Simplicity 2828729

SCREW, Taptite, Hex, 5/16-18 x 3/8

$

$

Not available

36

Simplicity 1609445

GUARD, Pulley

$

$

Not available
