300R (5902205) - Ferris 300R Series 42" Zero-Turn Mower, 22hp Kawasaki Frame Group Parts Diagram

300R Series 42" Zero-Turn Mower, 22hp Kawasaki

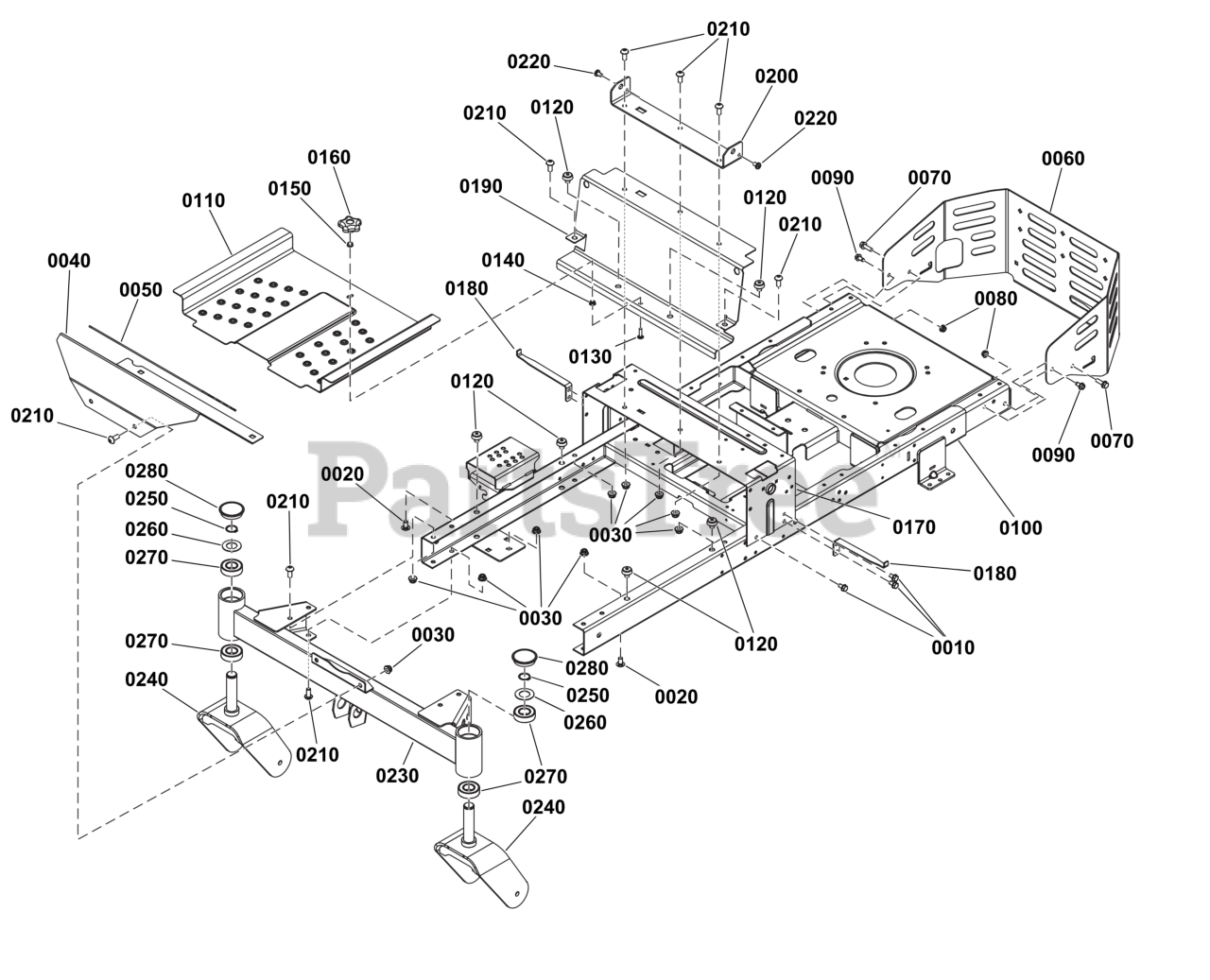

Frame Group Parts Diagram

  • Title

0010

Ferris 703949

SCREW, 5/16-18.625

$3.99

$

In Stock, Qty 20+

0

0020

Ferris 703448

BOLT, 3/8-16X.75 G5

$4.49

$

In Stock, only 3 left!

0

0030

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0040

Ferris 1759278BYP

FOOTREST

$175.99

$

Usually ships in 2-12 days

0

0050

Ferris 5101374YP

SAFETY WALK, FLOOR RE

$19.99

$

In Stock, only 2 left!

0

0060

Ferris 1759501BYP

BUMPER, Rear

$265.99

$

Usually ships in 2-12 days

0

0070

Ferris 703410

BOLT,5/16-18X1

$4.49

$

Usually ships in 2-12 days

0

0080

Ferris 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0090

Ferris 703228

SCREW, 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

0100

WELDMENT, ZT FRAME-FIXED AXLE (FER RED)

Note: (Not a serviceable part.)

$

$

Not available

0110

Ferris 1757813BYP

PAN, Foot

$100.99

$

Usually ships in 2-12 days

0

0120

Ferris 197546GS

MOUNT-VIBRATION

$8.49

$

In Stock, only 2 left!

0

0130

Ferris 7090496YP

RHSSNB, 1/4C X1 GR5 Z

$3.49

$

Usually ships in 2-12 days

0

0140

Ferris 5025126FS

NUT

$4.49

$

Usually ships in 2-12 days

0

0150

Ferris 15X143MA

NUT,25-20 HEX FLG CTR

$5.49

$

In Stock, only 4 left!

0

0160

Ferris 707785

KNOB

$6.49

$

In Stock, Qty 5

0

0170

Ferris 80096436BFS

BRACKET, CONTROL

$109.99

$

Usually ships in 2-12 days

0

0180

Ferris 1758240AFS

SUPPORT, FENDER

$9.49

$

Usually ships in 2-12 days

0

0190

Ferris 1757796BYP

PLATE-DECAL

$114.99

$

Usually ships in 2-12 days

0

0200

Ferris 84001640

SUPPORT, Seat

$35.99

$

Usually ships in 2-12 days

0

0210

Ferris 84004627

CAPSCREW

$4.49

$

Usually ships in 2-12 days

0

0220

Ferris 703932

SCREW, 5/16-18X.5

$5.49

$

Usually ships in 2-12 days

0

0230

Ferris 84013166

FRONT AXLE ASSEMBLY

$

$

Currently unavailable

0240

Ferris 80081658BFS

CASTER

$104.99

$

Usually ships in 2-12 days

0

0250

Ferris 703993

RETAINER, EXT RING, 1

$3.49

$

In Stock, Qty 20+

0

0260

Ferris 703199

WASHER, 1

$4.99

$

In Stock, Qty 18

0

0270

Ferris 1758354YP

BEARING

$10.99

$

In Stock, Qty 20+

0

0280

Ferris 5109884FS

CAP

$8.49

$

Usually ships in 2-12 days

0
