300R (5902205) - Ferris 300R Series 42" Zero-Turn Mower, 22hp Kawasaki Transmission Group Parts Diagram

300R Series 42" Zero-Turn Mower, 22hp Kawasaki

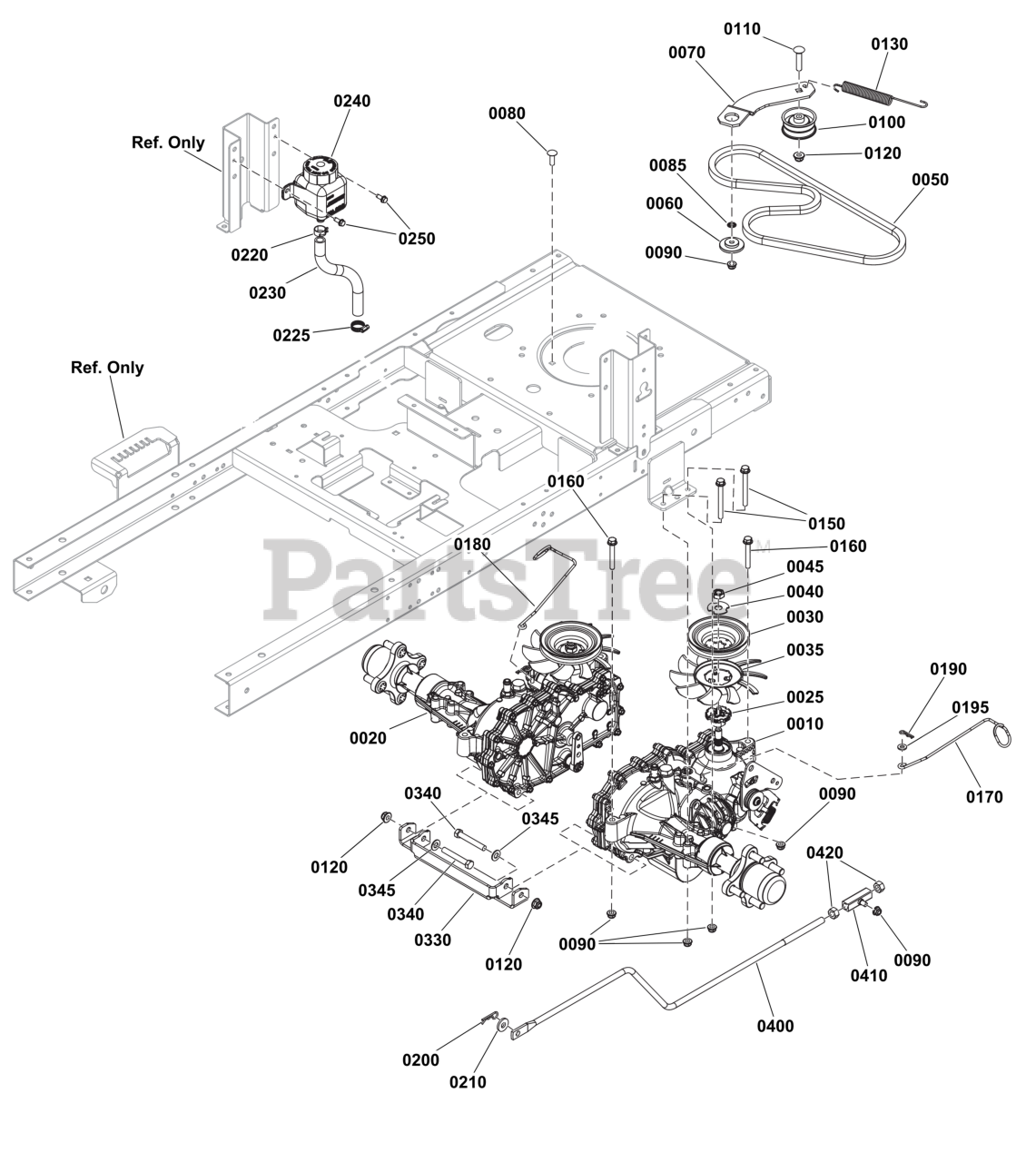

Transmission Group Parts Diagram

  • Title

0010

Ferris 84007996

TRANSAXLE

Note: (TRANSAXLE, ZT2800, ZH-JPBB-SF7B-2XLX)

$1002.99

$

Usually ships in 2-12 days

0

0020

Ferris 84008003

TRANSAXLE

Note: (TRANSAXLE, ZT2800, ZH-MPBB-SF7C-3XLX)

$966.99

$

Usually ships in 2-12 days

0

0025

Ferris 84003847

HUB

$8.49

$

Usually ships in 2-12 days

0

0030

Ferris 1759447YP

PULLEY, Transmission

$27.99

$

In Stock, only 4 left!

0

0035

Ferris 1759448YP

FAN, Input

$15.99

$

In Stock, Qty 11

0

0040

Ferris 5102914YP

WASHER, ZT5400, SLOTT

$4.49

$

In Stock, Qty 7

0

0045

Ferris 5102916YP

NUT, ZT5400

$3.49

$

In Stock, only 1 left!

0

0050

Ferris 1758100YP

BELT-TRANSMISSION

$43.99

$

In Stock, Qty 20+

0

0060

Ferris 1727935SM

SPACER-PIVOT 0.330ID

$5.99

$

In Stock, Qty 20+

0

0070

Ferris 1758044AYP

ARM, Idler

$21.99

$

In Stock, Qty 7

0

0080

Ferris 703800

BOLT, CRRG, 5/16-18X1

$3.99

$

In Stock, Qty 20+

0

0085

Ferris 703297

RETAINER, GR5, 5/16

$3.99

$

In Stock, Qty 20+

0

0090

Ferris 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0100

Ferris 1668477SM

PULLEY, Idler, 2.25" OD, .378 ID

$25.99

$

In Stock, Qty 20+

0

0110

Ferris 703879

BOLT, SQ, 3/8-16X1.75

$3.99

$

In Stock, Qty 20+

0

0120

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0130

Ferris 1758045YP

SPRING-EXTENSION

$8.99

$

In Stock, Qty 20+

0

0150

Ferris 707943

SCREW

$5.99

$

Usually ships in 2-12 days

0

0160

Ferris 707944

SCREW, Washer Head, 5/16-18 X 2 1/4

$4.99

$

Usually ships in 2-12 days

0

0170

Ferris 1759245YP

ROD, Release, LH

$14.99

$

Usually ships in 2-12 days

0

0180

Ferris 1759246YP

ROD, Release, RH

$14.99

$

In Stock, only 1 left!

0

0190

Ferris 703430

PIN, 13X1.19

$3.49

$

In Stock, Qty 19

0

0195

Ferris 703332

WASHER

$4.49

$

In Stock, Qty 20+

0

0200

Ferris 7091503SM

HAIR PIN, 3/32X1-1/2

$3.99

$

In Stock, Qty 20+

0

0210

Ferris 704128

WASHER

$5.49

$

In Stock, Qty 20+

0

0220

Ferris 5025474SM

CLAMP - HOSE

$3.49

$

In Stock, Qty 17

0

0225

Ferris 5021392SM

CLAMP, #6 HOSE, STAIN

$4.99

$

In Stock, Qty 12

0

0230

Ferris 5050857X9SM

HOSE, 1/2" PUSH

$9.49

$

In Stock, only 2 left!

0

0240

Ferris 5100473SM

RESERVOIR

$43.99

$

In Stock, Qty 14

0

0250

Ferris 703054

SCREW, 1/4-20X0.625

$4.49

$

In Stock, Qty 11

0

0330

Ferris 1759172AYP

SUPPORT

$67.99

$

Usually ships in 2-12 days

0

0340

Ferris 84007037

BOLT

$2.99

$

In Stock, Qty 19

0

0345

Ferris 5025156FS

WASHER

$3.49

$

Usually ships in 2-12 days

0

0400

Ferris 84002180

CONTROL ROD, Transmission

$63.99

$

Usually ships in 2-12 days

0

0410

Ferris 84002181

TRUNNION

$11.99

$

Usually ships in 2-12 days

0

0420

Ferris 7090460SM

NUT, 7/16F, GR5, Hex

$2.49

$

Usually ships in 2-12 days

0
