300S (5902148) - Ferris 300S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton Transaxle Service Parts - 84008002 & 84007995 Parts Diagram

300S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton

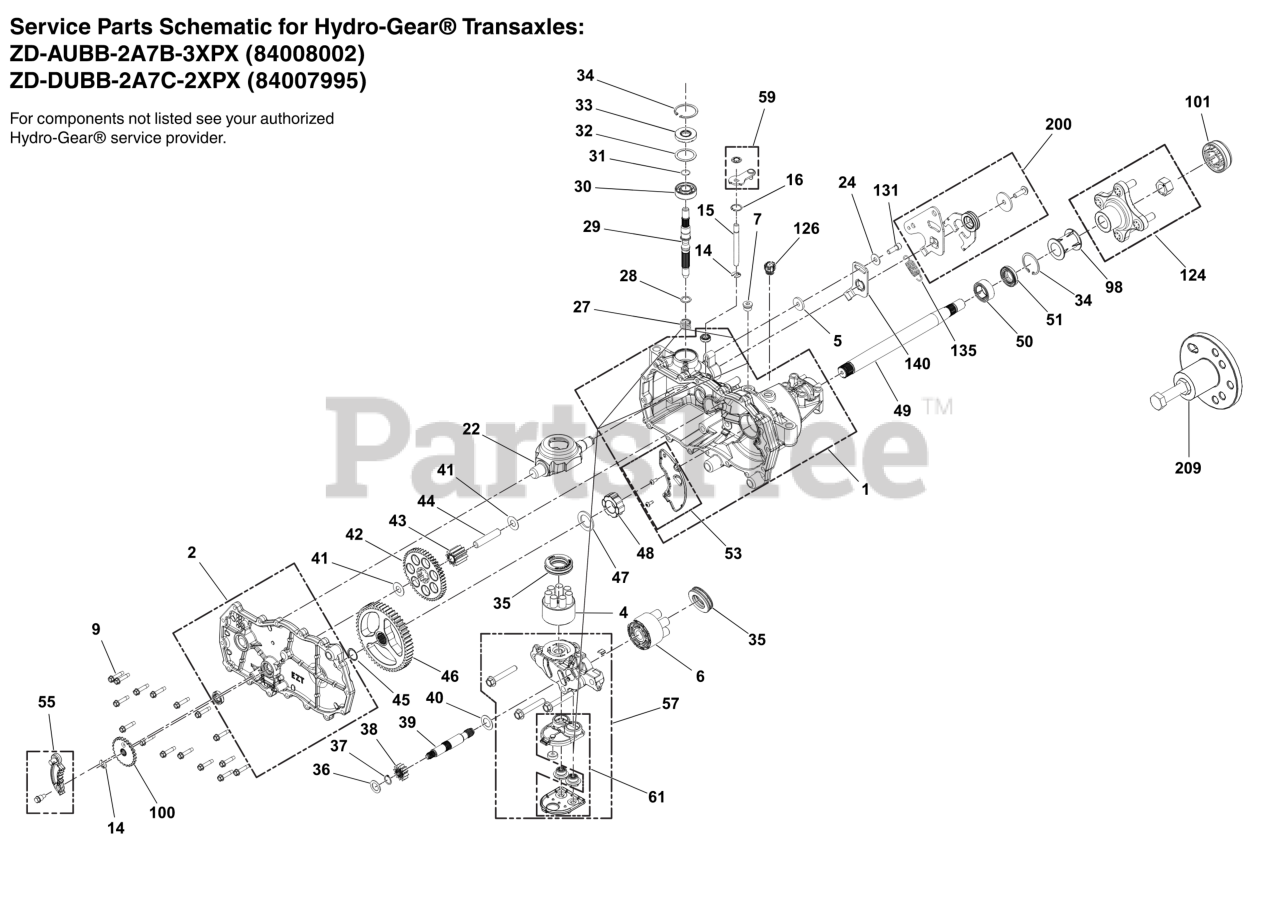

Transaxle Service Parts - 84008002 & 84007995 Parts Diagram

  • Title

1

KIT, Housing Main, RH

$

$

Not available

2

KIT, Housing, Side RH

$

$

Not available

4

KIT, BLOCK 7 PISTON

$

$

Not available

5

SPACER, .320X1.005X.179

$

$

Not available

6

Ferris 5023417SM

Cylinder Block Kit

$238.99

$

Usually ships in 2-12 days

0

7

PLUG, 9/16-18 STR THREAD SOCKET HEAD

$

$

Not available

9

SCREW, HEX WASHER

$

$

Not available

14

BYPASS RETAINING RING 1

$

$

Not available

15

ROD, BYPASS

$

$

Not available

16

BYPASS RETAINING RING 2

$

$

Not available

19

SWASHPLATE, TRUNNION

$

$

Not available

24

WASHER, .34X.88X.06

$

$

Not available

27

Ferris 1715171SM

SPRING - HELICAL COMPRESSION

$7.49

$

Usually ships in 2-12 days

0

28

Ferris 1715172SM

WASHER, Block Thrust

$6.49

$

Usually ships in 2-12 days

0

29

SHAFT, Input

$

$

Not available

30

Ferris 1730274SM

BALL BRG 17MM ID X 40MM OD X 12MM

$43.99

$

Usually ships in 2-12 days

0

31

RING RET 67 EXT WIRE

$

$

Not available

32

Ferris 1730272

SPACER (50951)

$

$

Not available

33

Ferris 5023414

Lip Seal 17 x 40 x 7 PTC
(Superseded to 5023414SM)

$19.99

$

Usually ships in 2-12 days

0

33

Ferris 5101026X3

SEAL, LIP, 17 X 40 X 7
(Superseded to 5101026X3SM)

$18.99

$

In Stock, only 3 left!

0

34

Ferris 5023415

Spacer
(Superseded to 5023415SM)

$9.99

$

Usually ships in 2-12 days

0

34

Ferris 5101026X4

RING, RET 2.06 INT,
(Superseded to 5101026X4SM)

$12.99

$

Usually ships in 2-12 days

0

35

BEARING, THRUST 30 x 52 x 13

$

$

Not available

36

WASHER, .63 X 1.00 X .05 FLAT

$

$

Not available

37

Ferris 1706130

RING-SNAP (44145)

$

$

Not available

38

GEAR-PINION, 12T

$

$

Not available

39

SHAFT, MOTOR

$

$

Not available

40

WASHER, .71 X 1.16 X .04 FLAT

$

$

Not available

41

WASHER, .51 X 1.00 X .03 FLAT

$

$

Not available

42

GEAR, 49T/10T

$

$

Not available

43

GEAR, 10T JACKSHAFT

$

$

Not available

44

PIN, JACKSHAFT

$

$

Not available

45

RING, SPIRAL RETAINING-87

$

$

Not available

46

GEAR, BULL 52T

$

$

Not available

47

WASHER, 1.018 X 1.571 X .105 FLAT

$

$

Not available

48

BUSHING, SLEEVE (INBOARD)

$

$

Not available

49

SHAFT, AXLE

$

$

Not available

50

BUSHING, 1.003 x 1.571 x .625

$

$

Not available

51

SEAL, LIP, TC4 1.00 X 1.577 X .27

$

$

Not available

52

Ferris 1728060SM

KIT, Hydro Seal

$143.99

$

Usually ships in 2-12 days

0

53

KIT, EXPANSION PLATE RH

$

$

Not available

55

Ferris 1728075SM

ASSEMBLY, Parking Brake Arm, Transmission

$51.99

$

In Stock, only 1 left!

0

57

KIT, CENTER SECTION, W/FILTER - RH

$

$

Not available

58

TUBE, SEALANT

$

$

Not available

59

KIT, BYPASS ARM

$

$

Not available

61

KIT, FILTER

$

$

Not available

98

TUBE, AXLE 1.835

$

$

Not available

100

Ferris 1728076SM

GEAR, Parking Brake, Transmission

$39.99

$

Usually ships in 2-12 days

0

101

Ferris 5103589X7

AXLE CAP,

$18.99

$

Usually ships in 2-12 days

0

124

Ferris 5103589X8

ASSM, HUB

$154.99

$

Usually ships in 2-12 days

0

126

ASSEMBLY, FITTING 9/16-18 BREATHER

$

$

Not available

131

KIT, RTN SCREWS

$

$

Not available

135

Ferris 5101026X19

SPRING, EXTENSION (52401)

$8.49

$

Usually ships in 2-12 days

0

140

ARM, NEUTRAL RIGHT

$

$

Not available

200

Ferris 1735491SM

ARM, Control Kit R.H.

$95.99

$

Usually ships in 2-12 days

0

209

KIT, HUB PULLER

$

$

Not available
